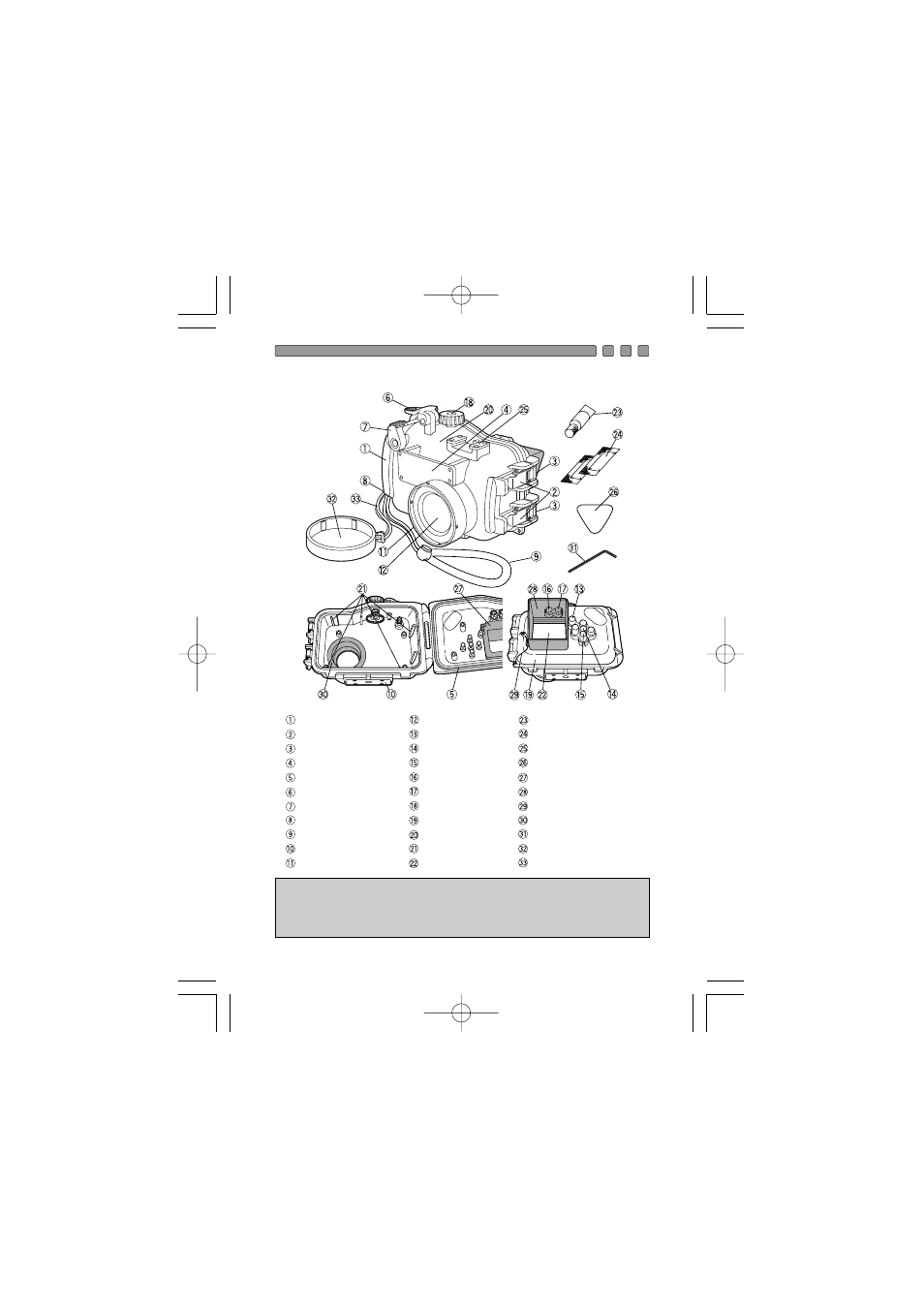

Names of the parts
Note : The Case operation parts marked by ❈ corresponds to the operation parts
of the digital camera. When the operation parts of the Case are operated,
the corresponding functions of the digital camera will operate. For details
of the functions, refer to the instruction manual for the digital camera.
Palm grip
Buckle lock lever
Buckle hook
Diffuser and diffuser cover
O-ring
❈ Shutter lever
❈ Zoom lever
Hand strap ring
Hand strap
Tripod seat
Lens ring
Lens window
❈ Playback button
❈ OK/Menu button
❈ Arrow pad
❈ Flash mode/Erase button
❈ Macro/Spot button
❈ Mode dial knob
Rear lid
Front lid
Loading guide rail
LCD monitor window
Grease for silicone O-ring(white cap)
Silica gel
Accessory mount
Pick for O-ring removal
LCD inner hood
LCD hood
LCD hood strap
Shade hood
Buckle opener
Lenscap
Lenscap strap
