Chapter 3 Error Correction & Maintenance 3-2
3. 1 Media Mis-feed Errors

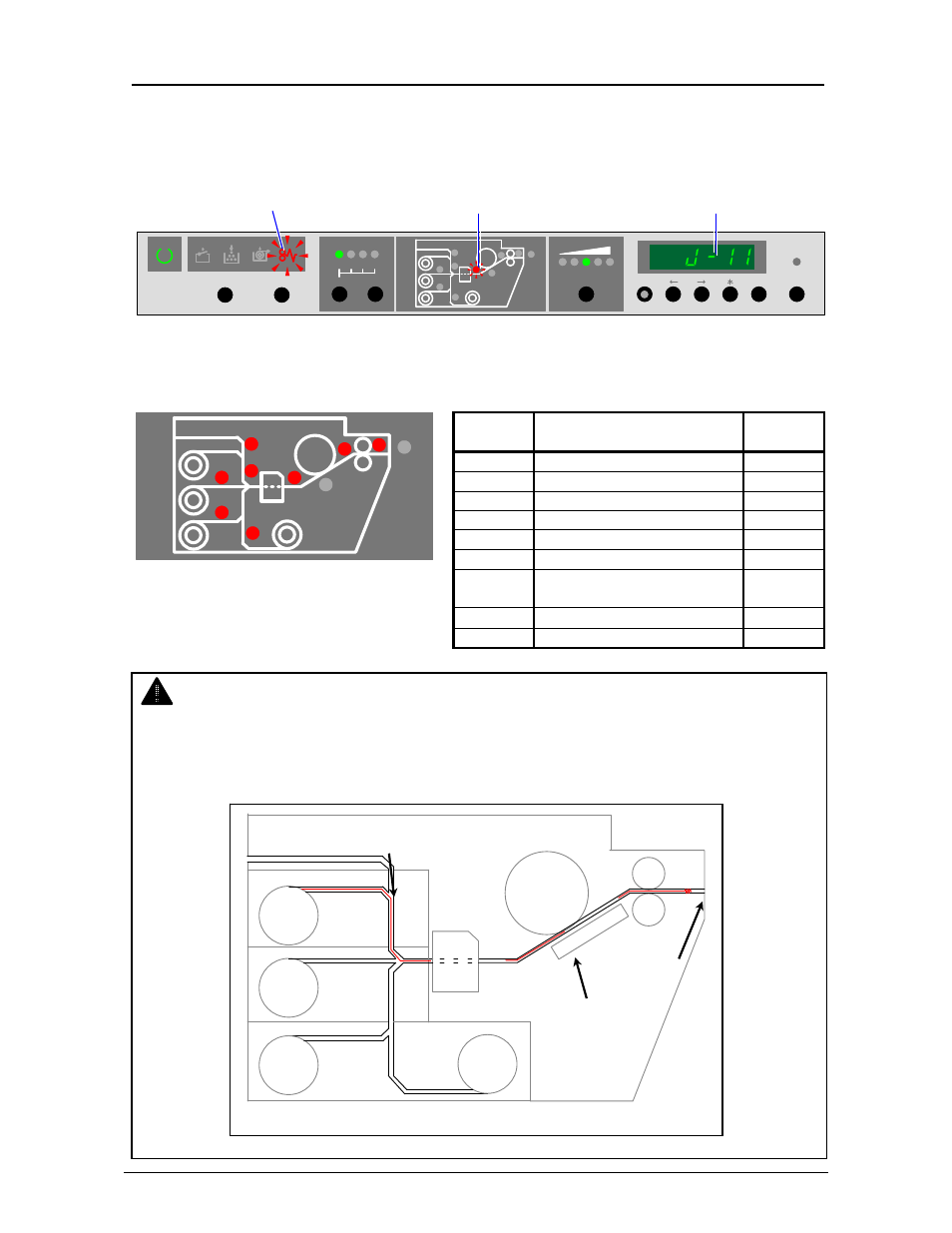

If a media mis-feed occurs anywhere in KIP9000, the Mis-feed Indicator on the Operation Panel
lights red to notice the error. The Mis-feed Location Indicator illuminates any LED in red and the
Status Display indicates any mis-feed code as “J-XX” to notice the location of mis-fed media.
Mis-feed Indicator Mis-feed Location Indicator Status Display (J-XX)
Indication LEDs and mis-feed codes are corresponded as follows.
Please refer to the page shown in the list as for the way to clear each mis-feed.
Mis-feed
code Location of mis-feed Refer to
page ;
J-01 Roll 1 3-3
J-02 Roll 2 3-3
J-03 Roll 3 3-3
J-04 Roll 4 3-3
J-05 Bypass Feeder 3-6
J-11 Between Cutter and Drum 3-7
J-12 Internal Transportation
Unit
3-11
J-13 Fuser Entrance 3-11
J-14 In Fuser Unit 3-18
COPY DENSITY MENU ENTER ONLINE
MF
D1
D2
D3
EXIT PAPER DECK
1 2 3 4
SELECT CUT WIRE CLEAN EXP- CLEAN
D4
PF
J- 02
J- 03
J- 01
J- 11
J- 05
J- 04
J- 12
J- 13 & J- 14
NOTE
Some sheets of media may be mis-fed simultaneously inside of KIP9000 if mis-feed occurs
during continuous printing. Check the Operation Panel after removing one mis-feed media as
another mis-feed code may be indicated.
D4
1st print
2nd print
On feeding
