Page 41

6. If you have a slim optical drive, install the slim-optical-drive bracket, and then install the slim optical
drive. See “Removing and reinstalling the slim-optical-drive bracket” on page 82 and “Installing the
slim optical drive” on page 71.
7. Do the following to connect the slim optical drive:
a.
1
: Connect one end of the available SATA cable to the SATA 4 connector on the system board.
See “System board components” on page 32.
b.
2
: Connect the other end of the SATA cable to the rear of the slim optical drive.
c.
3
: Connect the slim-optical-drive power connector of the mini-SAS to 3.5-inch SAS combo cable to
the power connector at the rear of the slim optical drive.

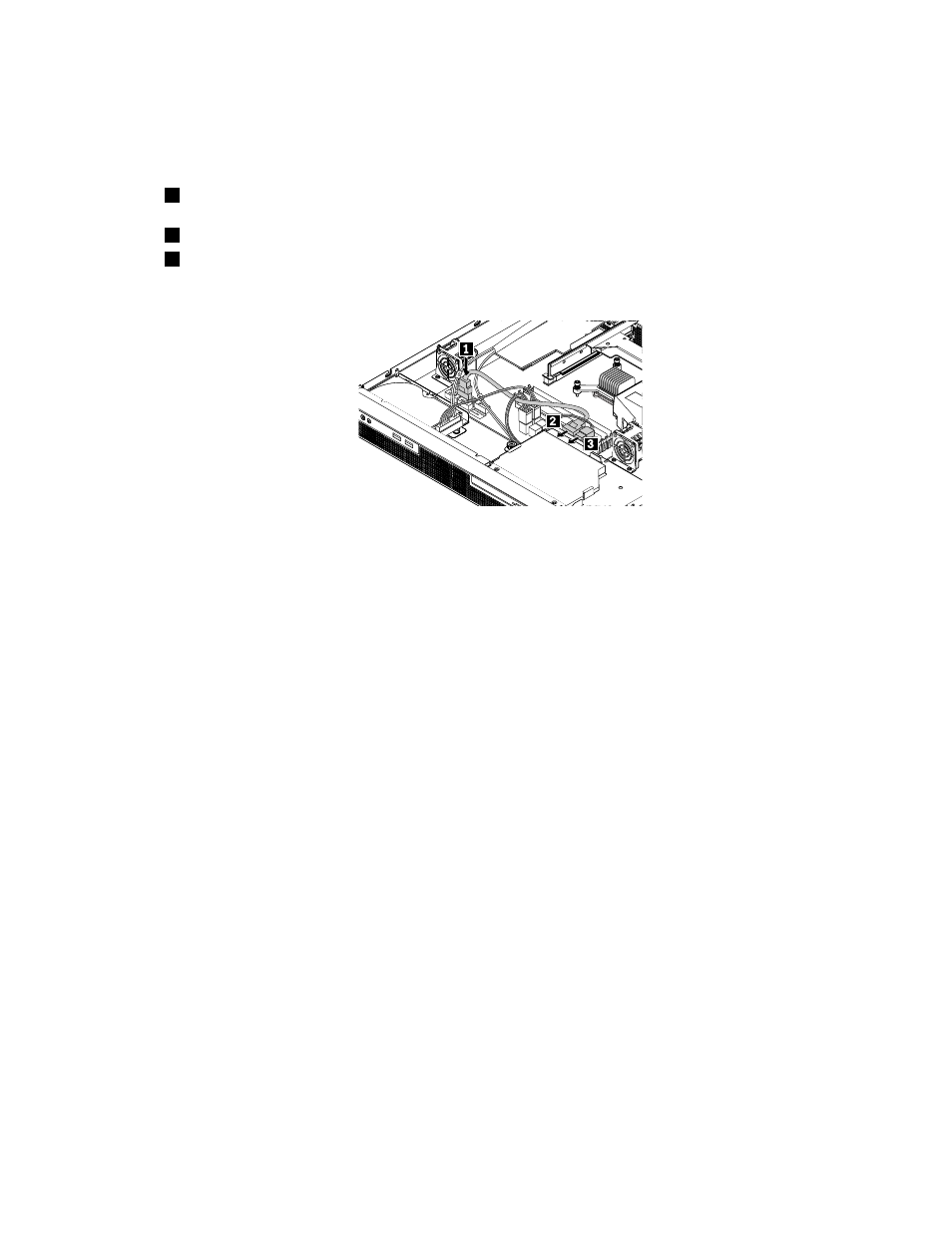

Figure 21. Connecting the slim optical drive
Note: Ensure that the SATA cable and the power cable for the slim optical drive are routed under the
power supply cable and the mini-SAS to SAS combo power cable.
8. Route the cables using the cable ties in the chassis. See “Reinstalling the server cover and reconnecting
Connecting the 3.5-inch hard disk drives and slim optical drive without a RAID card
To connect the 3.5-inch hard disk drives and slim optical drive without a RAID card:
