5. Do the following to connect the hard disk drives:
a.
1 2
: Connect the SATA combo connectors 0 and 1 of the mini-SAS to 2.5-inch SAS combo cable to
the hard disk drives 0 and 1 respectively.
b.
3
: Connect the power connector 1 of the mini-SAS to 2.5-inch SAS combo cable to the 4-pin power
connector which is near the memory modules on the system board.
c.
4 5
: Connect the SATA combo connectors 2 and 3 of the mini-SAS to 2.5-inch SAS combo cable to
the hard disk drives 2 and 3 respectively.
d.
6
: Connect the power connector 2 of the mini-SAS to 2.5-inch SAS combo cable to the other
available 4-pin power connector on the system board.
For more information, see “System board components” on page 32.

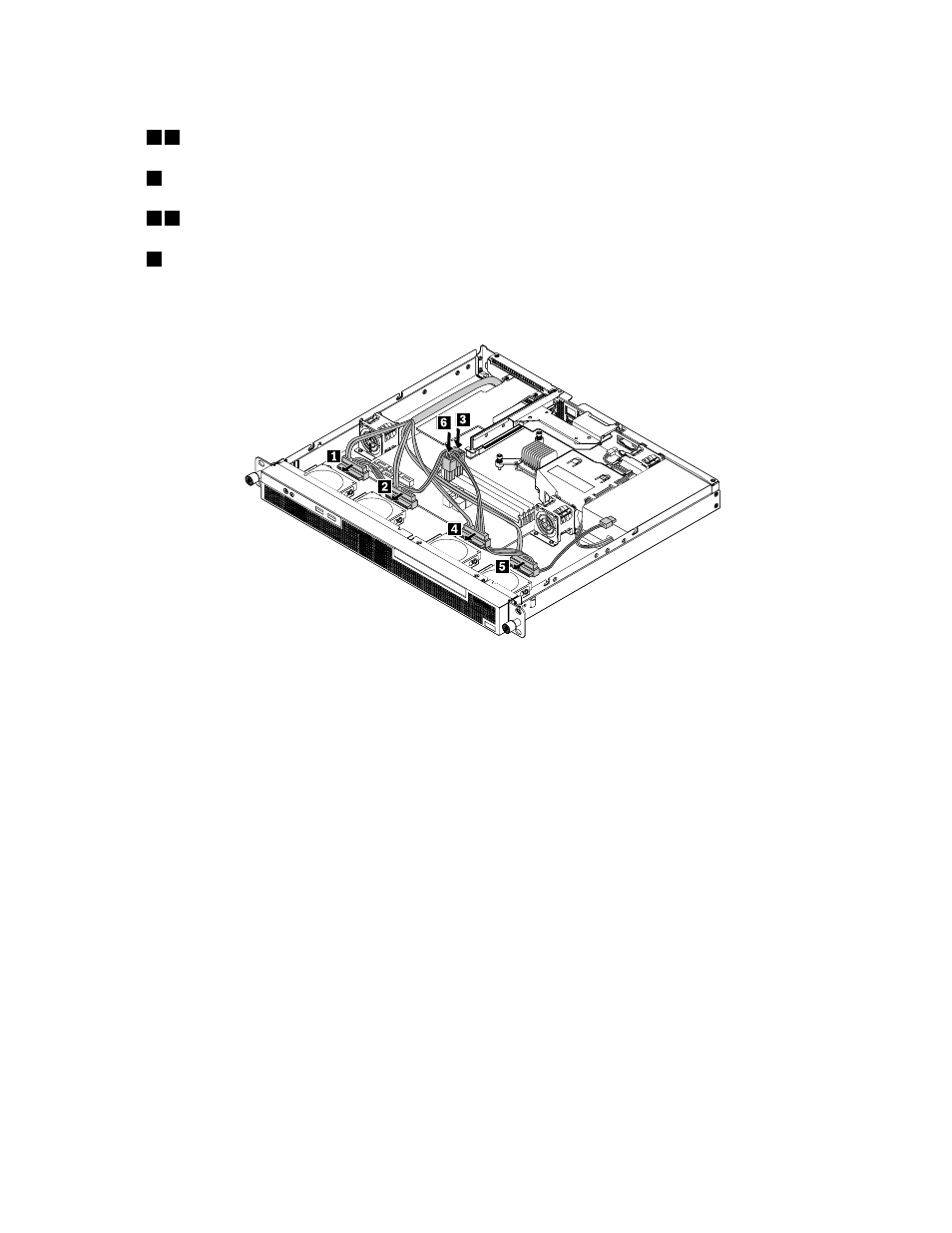

Figure 14. Connecting the 2.5-inch hard disk drives
6. If you have a slim optical drive, install the slim-optical-drive bracket, and then install the slim optical
drive. See “Removing and reinstalling the slim-optical-drive bracket” on page 82 and “Installing the
slim optical drive” on page 71.
