Lenovo ThinkServer RS140 User Manual
Page 37

7. Do the following to connect the slim optical drive:
a.
1
: Connect one end of the available SATA cable to the SATA 4 connector on the system board.
See “System board components” on page 32.
b.
2
: Connect the other end of the SATA cable to the rear of the slim optical drive.
c.
3
: Connect the slim-optical-drive power connector of the mini-SAS to 2.5-inch SAS combo cable to
the power connector at the rear of the slim optical drive.
Note: Ensure that the SATA cable and the power cable for the slim optical drive are routed under the
power supply cable and the mini-SAS to 2.5-inch SAS combo power cable.

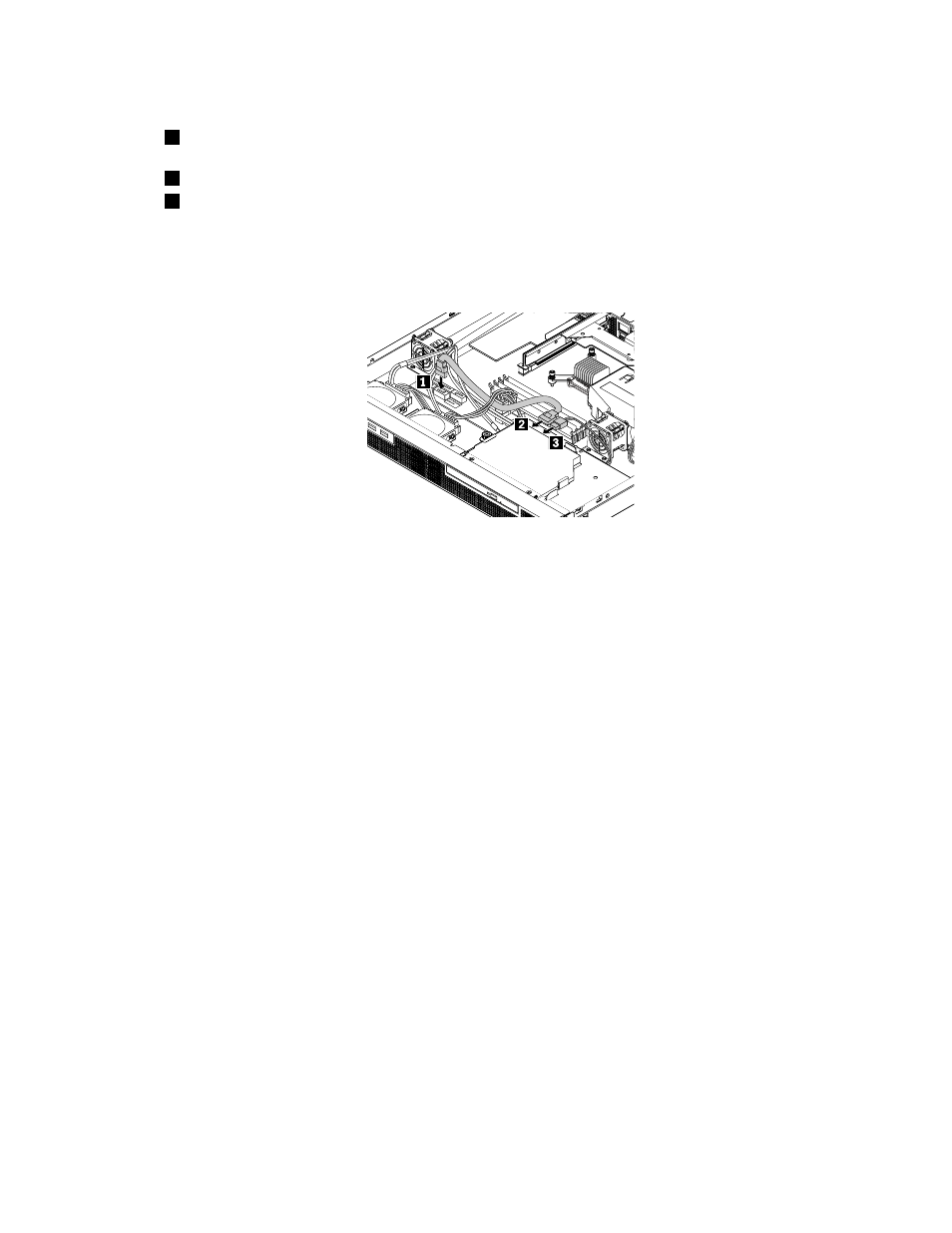

Figure 15. Connecting the slim optical drive
8. Route the cables using the cable ties in the chassis. See “Reinstalling the server cover and reconnecting
Connecting the 2.5-inch hard disk drives and slim optical drive without a RAID card
To connect the 2.5-inch hard disk drives and slim optical drive without a RAID card:
