Lenovo ThinkServer RS140 - Manual (Page 101)

7. Remove the four screws that secure the 3.5-inch hard disk drive to the bracket and then lift the drive up
to remove it from the bracket.

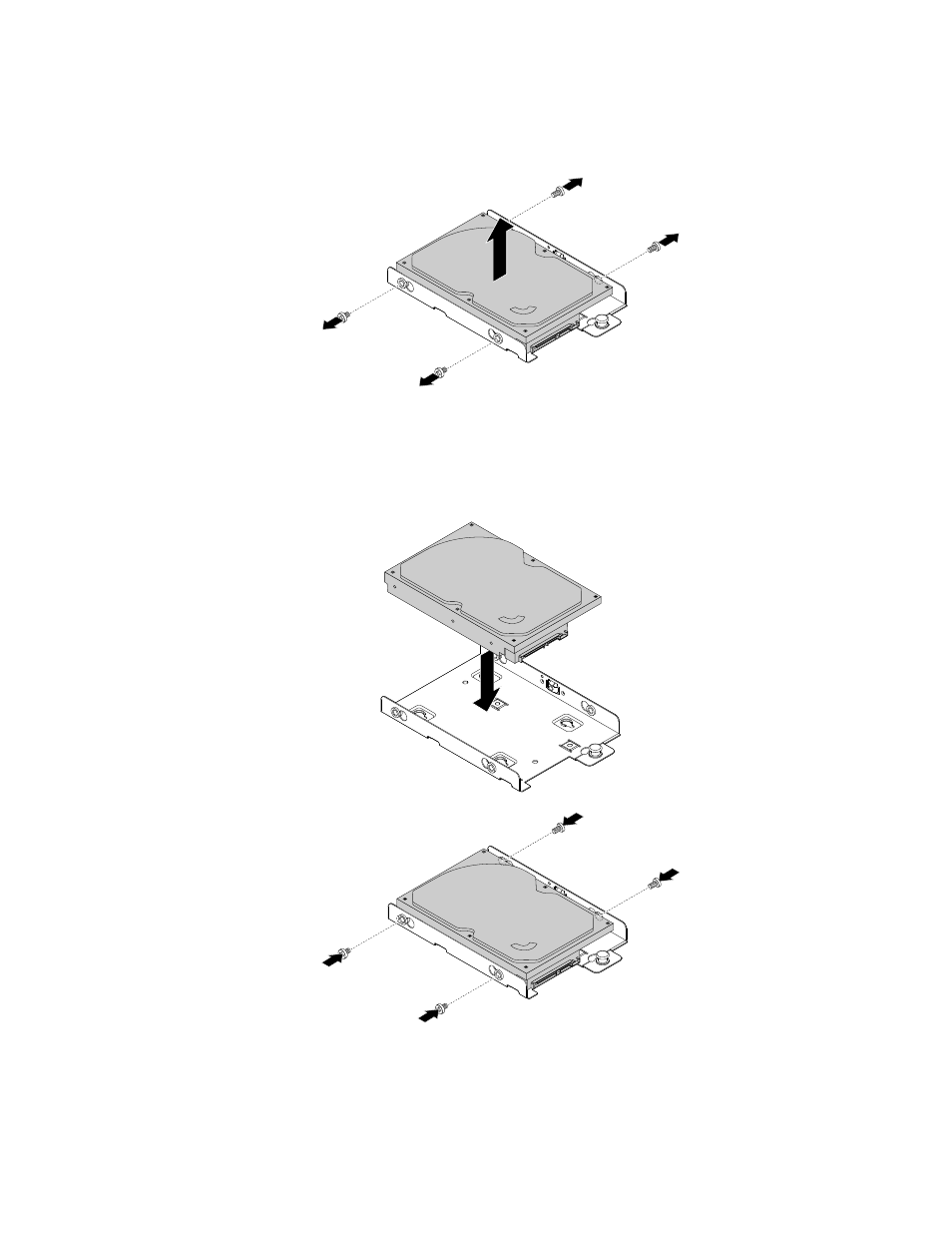

Figure 62. Removing the 3.5-inch hard disk drive from the bracket
8. Position the new 3.5-inch hard disk drive into the bracket and then install the four screws to secure the
new 3.5-inch hard disk drive.
Figure 63. Installing the 3.5-inch hard disk drive to the bracket
Chapter 6 . Installing, removing, or replacing hardware 89
