Lenovo ThinkServer RS140 - Manual (Page 119)

2. Ensure that all internal cables are connected and routed correctly and secured by any cable clips or
ties in the server. Keep cables clear of the hinges and sides of the chassis to avoid interference with
reinstalling the fan duct and the server cover. The following illustration shows an example of the cable
routing in the chassis with two 3.5-inch hard disk drives and a RAID card.

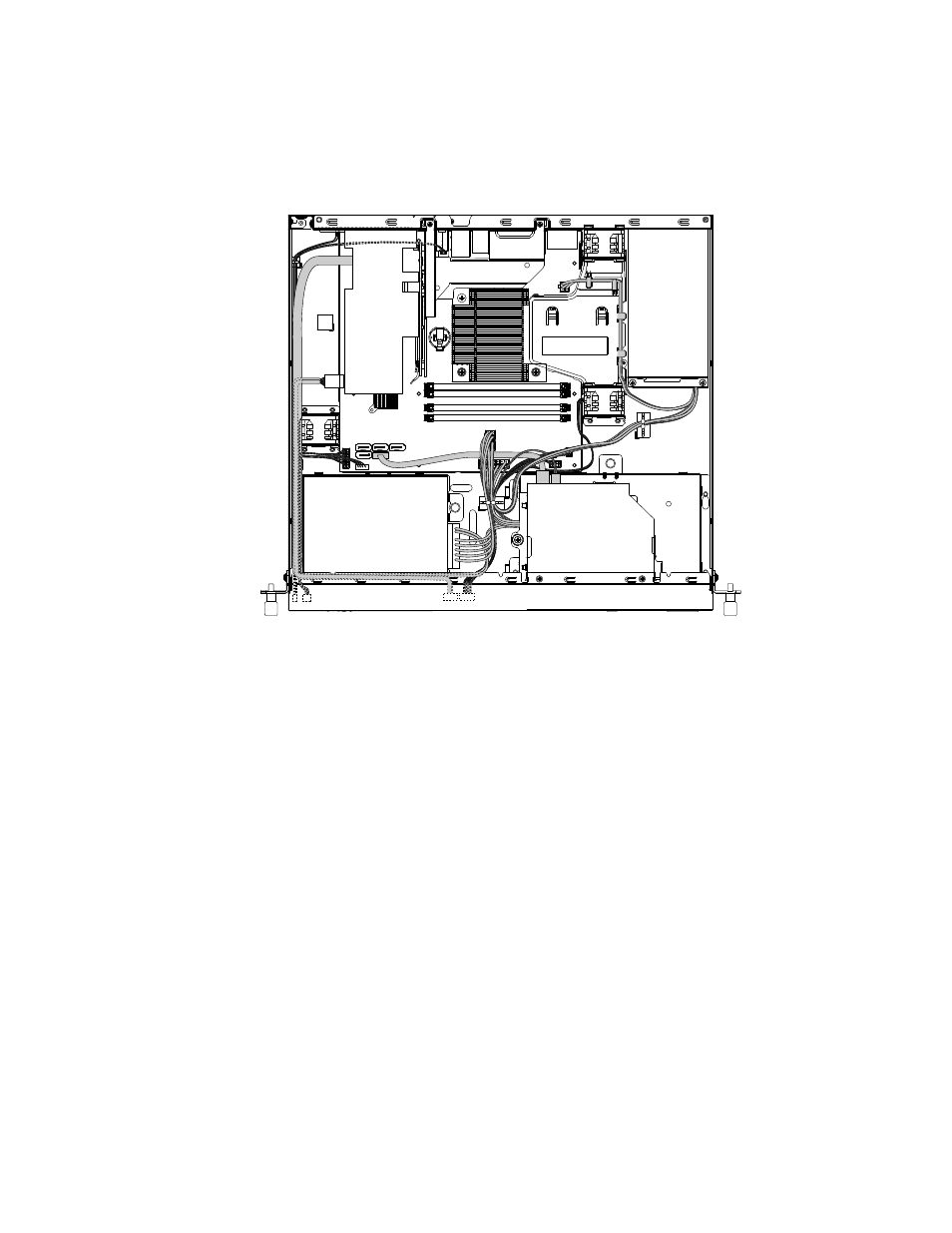

Figure 81. An example of cable routing (server models with two 3.5-inch hard disk drives and a RAID card)
3. If you have removed the fan duct, reinstall it. See “Removing and reinstalling the fan duct” on page 57.
Chapter 6 . Installing, removing, or replacing hardware 107
