3
4
5

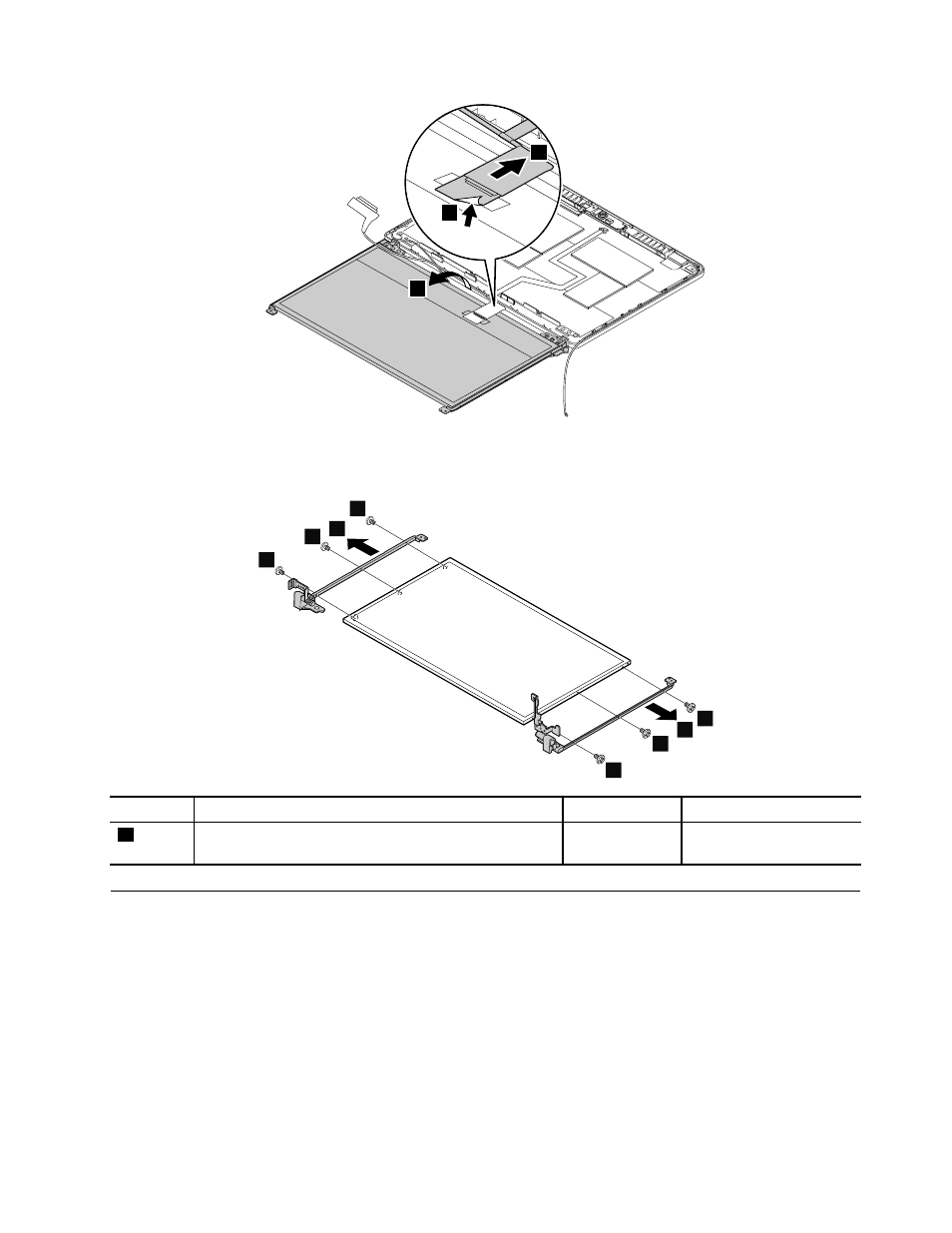

When installing: Make sure that the LCD connector is attached firmly.
Removal steps of hinges
1
1
1
1
1
1
2
2
Step Screw (quantity) Color Torque
1 M2 × 3 mm, wafer-head, nylon-coated, small head (6) Black 0.181 Nm
(1.85 kgf-cm)
2030 Integrated camera and LCD cable with microphone board
For access, remove these FRUs in order:
•
“1010 Battery pack” on page 58
• “1020 Large bottom cover” on page 59
• “1030 Small bottom cover” on page 60
• “1040 Optical drive or blank bezel” on page 60
• “1060 Hard disk drive assembly” on page 62
• “1070 PCI Express Mini Card for wireless LAN” on page 64
• “1110 Keyboard” on page 69
• “1120 Keyboard bezel assembly, card reader, touch pad, and dummy cap” on page 72
• “1180 RJ45 sub card” on page 84
• “1190 LCD unit” on page 86
Chapter 9 . Removing or replacing a FRU 93
