6 7 3 2 5 4 1
11
12
10
9
8
If the Windows Certificate of Authentication (COA) label 7 is attached to a part that is replaced, return the
old part with the label attached to the customer, or provide a letter to the customer stating what the label
was originally on the computer and what the label part number, serial number, and product key were.

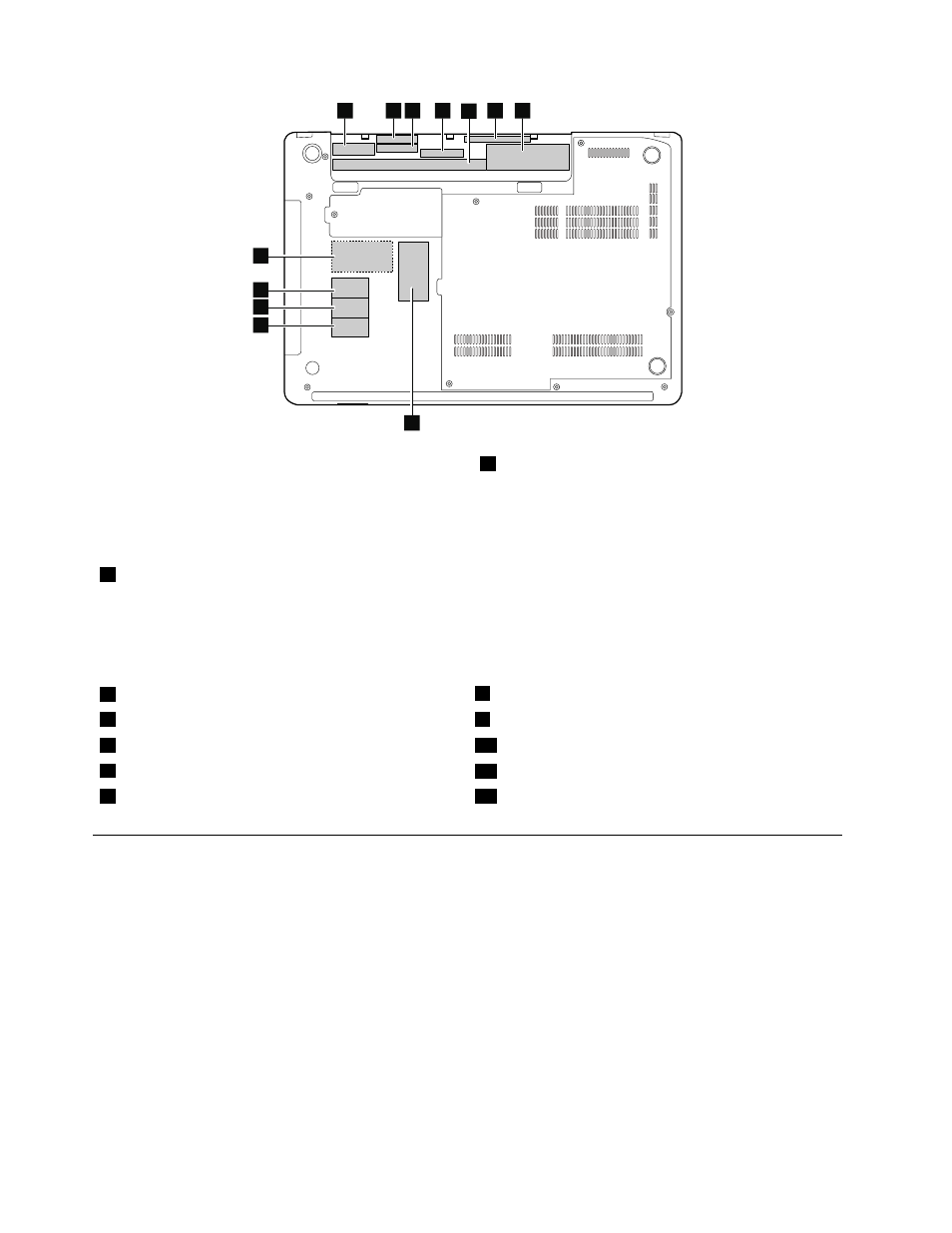

When you replace the base cover, apply the following labels:
3 Serial number label
The following labels need to be peeled off from the old base cover, and need to be adhered to the new
base cover.
1 GEO label 8 Asset tag
2 GEO label 9 Brazil ANATEL label for 3G
4 Wireless WAN MAC label 10 Brazil ANATEL label for Bluetooth
5 Rating label 11 Brazil ANATEL label for wireless LAN card
6 Japan warning US battery label 12 Hard disk drive warranty label
2010 LCD bezel assembly
For access, remove these FRUs in order:
•
“1010 Battery pack” on page 58
• “1020 Large bottom cover” on page 59
• “1030 Small bottom cover” on page 60
• “1040 Optical drive or blank bezel” on page 60
• “1060 Hard disk drive assembly” on page 62
• “1070 PCI Express Mini Card for wireless LAN” on page 64
• “1110 Keyboard” on page 69
• “1120 Keyboard bezel assembly, card reader, touch pad, and dummy cap” on page 72
• “1180 RJ45 sub card” on page 84
• “1190 LCD unit” on page 86
90 Hardware Maintenance Manual
