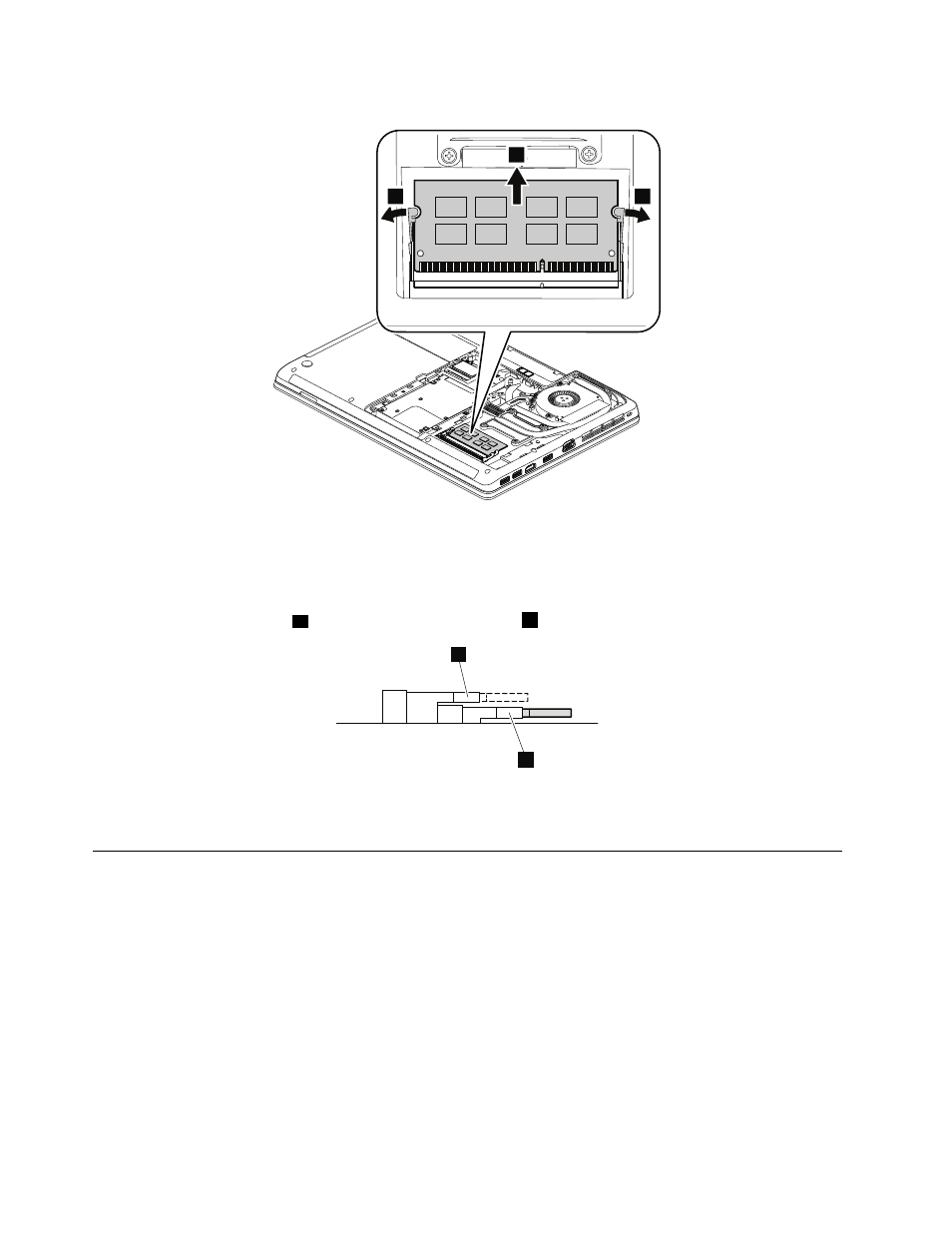

Removal steps of memory modules
2
1 1
Note: Your model might look slightly different from the illustration above.
When installing:
Note: If only one memory module is to be installed on the computer you are servicing, the memory module
must be installed in SLOT-0 (
a lower slot), but not in SLOT-1 ( b upper slot).
b
a
Insert the notched end of the memory module into the slot. Press the memory module firmly, and pivot it
until it snaps into place. Make sure that it is firmly installed in the slot and does not move easily.
1060 Hard disk drive assembly
For access, remove these FRUs in order:
•
“1010 Battery pack” on page 58
• “1020 Large bottom cover” on page 59
Attention:
• Do not drop the drive or apply any physical shock to it. The drive is sensitive to physical shock. Improper
handling can cause damage and permanent loss of data.
• Before removing the drive, have the user make a backup copy of all the information on it if possible.
• Never remove the drive while the computer is operating or is in suspend mode.
62 Hardware Maintenance Manual
