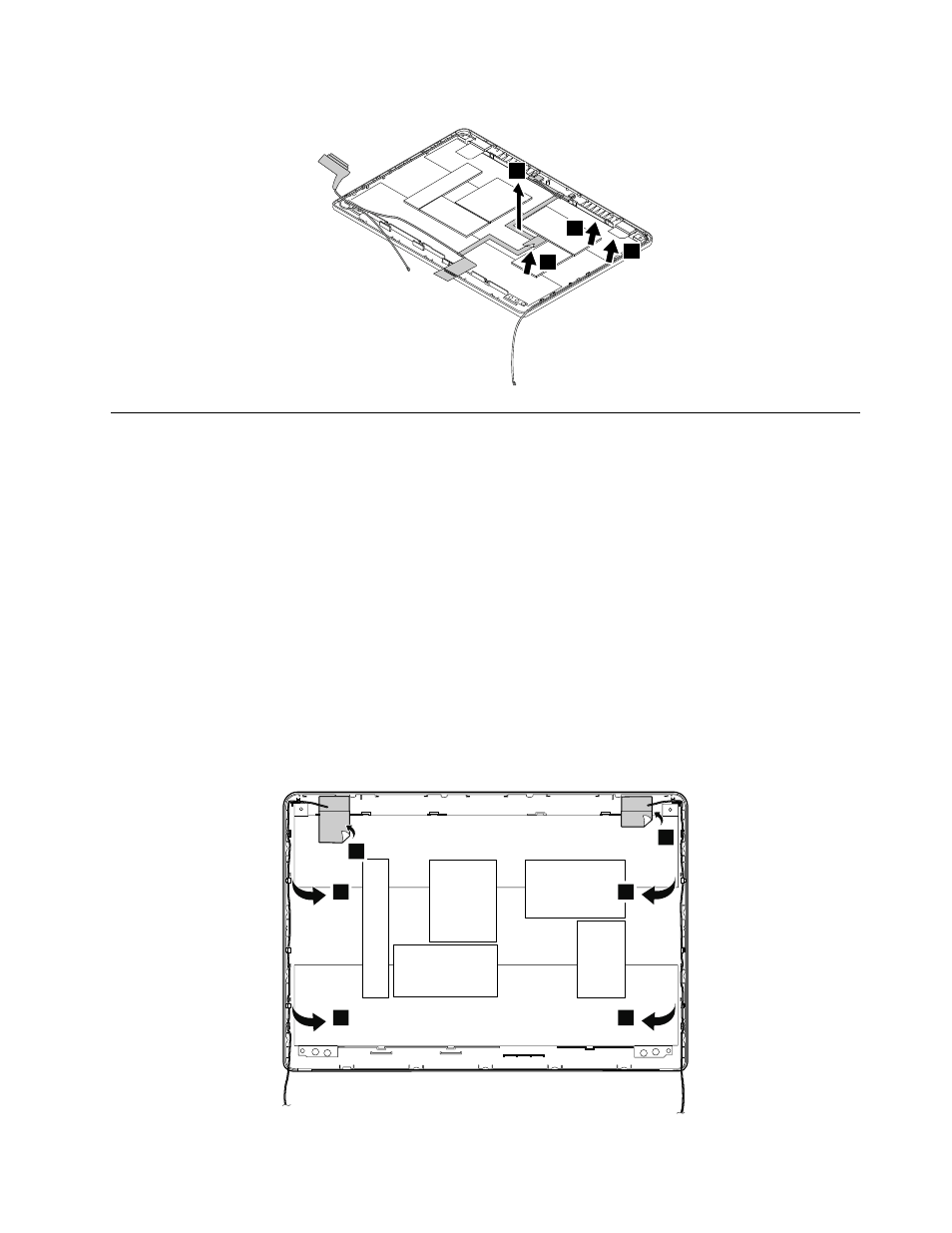

Removal steps of LCD cable with microphone board
1
2
1
1
2040 Wireless antenna assembly and LCD rear cover assembly
For access, remove these FRUs in order:
•
“1010 Battery pack” on page 58
• “1020 Large bottom cover” on page 59
• “1030 Small bottom cover” on page 60
• “1040 Optical drive or blank bezel” on page 60
• “1060 Hard disk drive assembly” on page 62
• “1070 PCI Express Mini Card for wireless LAN” on page 64
• “1110 Keyboard” on page 69
• “1120 Keyboard bezel assembly, card reader, touch pad, and dummy cap” on page 72
• “1180 RJ45 sub card” on page 84
• “1190 LCD unit” on page 86
• “2010 LCD bezel assembly” on page 90
• “2020 LCD panel and hinges” on page 91
• “2030 Integrated camera and LCD cable with microphone board” on page 93
Removal steps of wireless antenna assembly and LCD rear cover assembly
Release the antenna cables from the cable guides on the LCD rear cover assembly.
1
2
2
2
2
1
Chapter 9 . Removing or replacing a FRU 95
