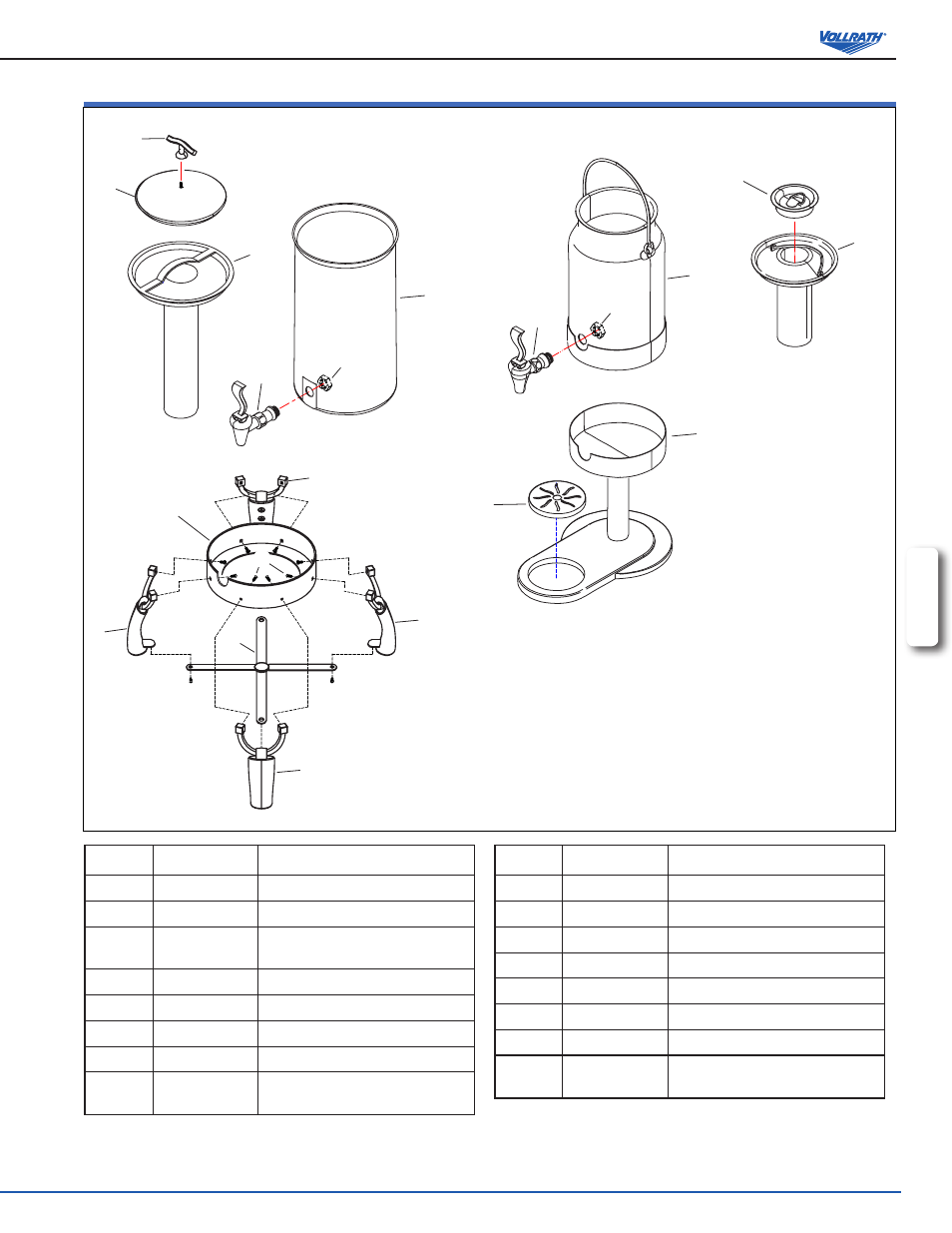

SPare PartS liSt -

and

eXPloded vieW -

modelS

4635810

and

4635110

1

11

7

10

9

5

8

3

6

2

4

4

5

15

13

13

13

13

6

12

14

Callout Part Number Description

1

4635110-1

Cover, Ice Tube

2

4635120-1

Ice Tube, Milk

3

K4635110-1 Body, Milk (includes Faucet Kit,

Handle and hardware)

4

N/A

Faucet Nut

5

K4635520-1 Faucet Kit (includes Faucet Nut)

6

4635130-1

Milk Base (includes Drip Cover)

7

4635210-1

Drip Cover

8

4635810-1

Body, Juice (includes Faucet Kit,

Handle and Hardware)

Callout Part Number Description

9

4635820-1

Ice Tube, Juice

10

4635830-1

Cover, Juice (includes Handle)

11

N/A

Handle

12

N/A

Screws

13

N/A

Leg with Yoke

14

N/A

Cross Support

15

N/A

Ring

15

4635840-1

Kit, includes 2 Legs with Yokes, Leg

Frame and all hardware
