Vollrath KDC1418-4F-06 Acrylic Knock Down Bakery Display Cases - Manual

Installation Instructions
Item No. 2350241-1 Rev 09/14
www.Vollrath.com
Bakery Case Assembly Instructions
Item# KDC1418-4F-06 (Front Doors)
PLEASE READ INSTRUCTION AND IDENTIFY ALL PARTS BEFORE
ASSEMBLY.
CAUTION: To ensure correct assembly read the following instructions and
understand their meaning before beginning. Please read carefully. Handle all
parts carefully to prevent injury or damage. Although edges and corners have
been deburred, they should still be considered sharp.
NOTE: DO NOT OVERTIGHTEN SCREWS AND HARDWARE.
Tools Needed:
„ 1 Medium Size Flat Head or Phillips screwdriver.
„ 1 Clean cloth to cover work surface, this prevents the case from scratching
during assembly.
The bakery case contains the following parts:
A
F
G
E
I
B D
C
J
H

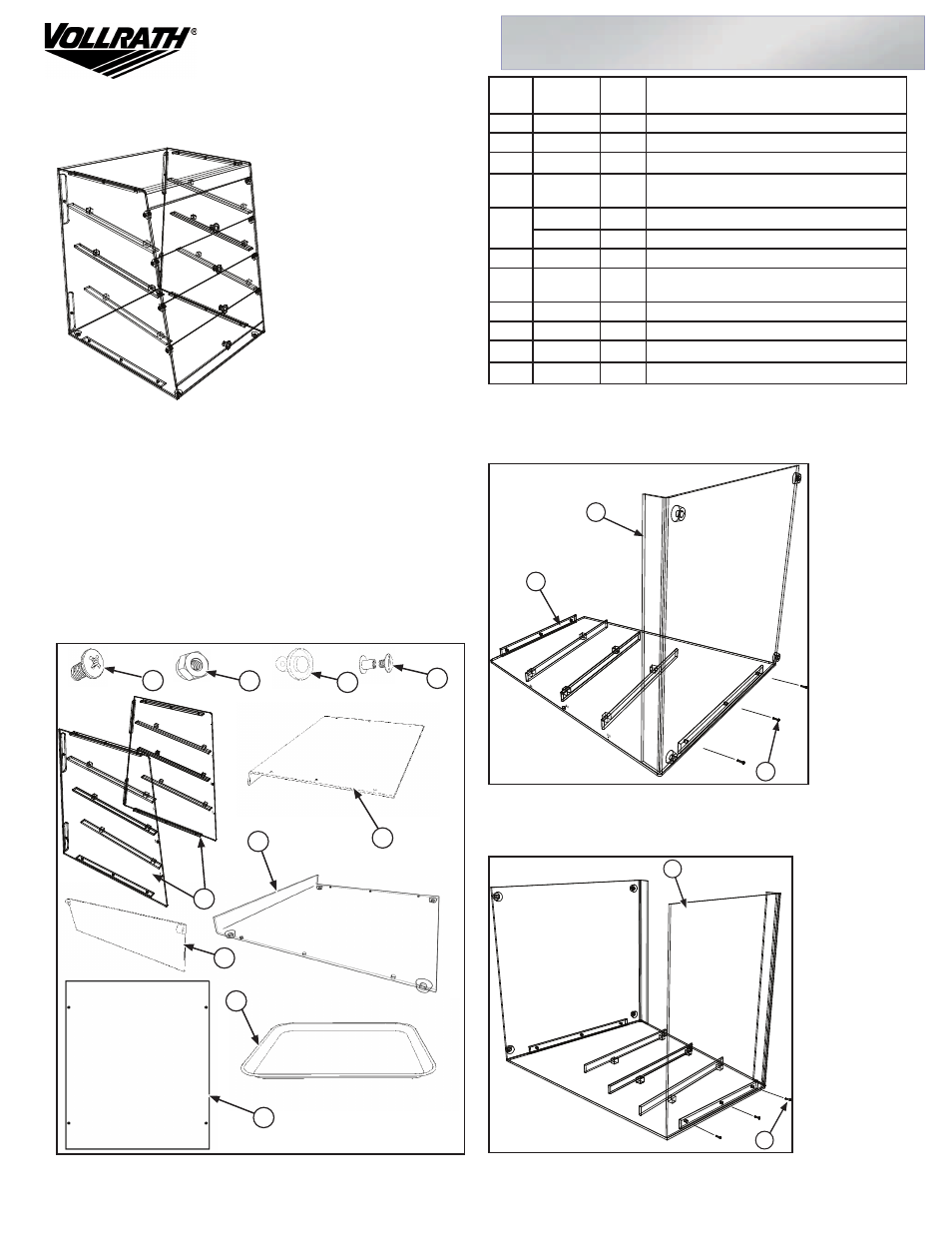

Figure 1. Bakery Case Parts
ITEM PART
NUMBER
QTY: DESCRIPTION
A N/A 20 Phillips Head Machine Screws (order 57980)
B N/A 4 Self-Locking Nuts (order 57980)
C 8013571 4 Clear Handles
D 8013031 8 Post and Screws (Included with Front Door
Panels)
E BC174B 1 Right Side Panel
BC173B 1 Left Side Panel
F BC178B 1 Short Bent Top Panel
G BC177B 1 Large Bent Bottom Panel with (4) Clear
Rubber Feet
H BC179B 4 Front Door Panels
I 86128 4 Trays
J BC180B 1 Back Panel
57980 1 Hardware Kit (Includes items A, B, C, and D)
1. Remove the bakery case and hardware from packaging.
2. Remove protective masking from display prior to assembly.
3. Lay one side panel (E) with rails facing up, flat on table and attach large
bent bottom panel (G) using (3) machine screws (A). See Figure 2.
G
A
E
Figure 2. Install Large Bent Bottom Panel
4. Repeat the process attaching the short bent top panel (F) using (3) machine
screws (A). See Figure 3.
F
A
Figure 3. Install Large Bent Bottom Panel
