SPare PartS liSt -
and

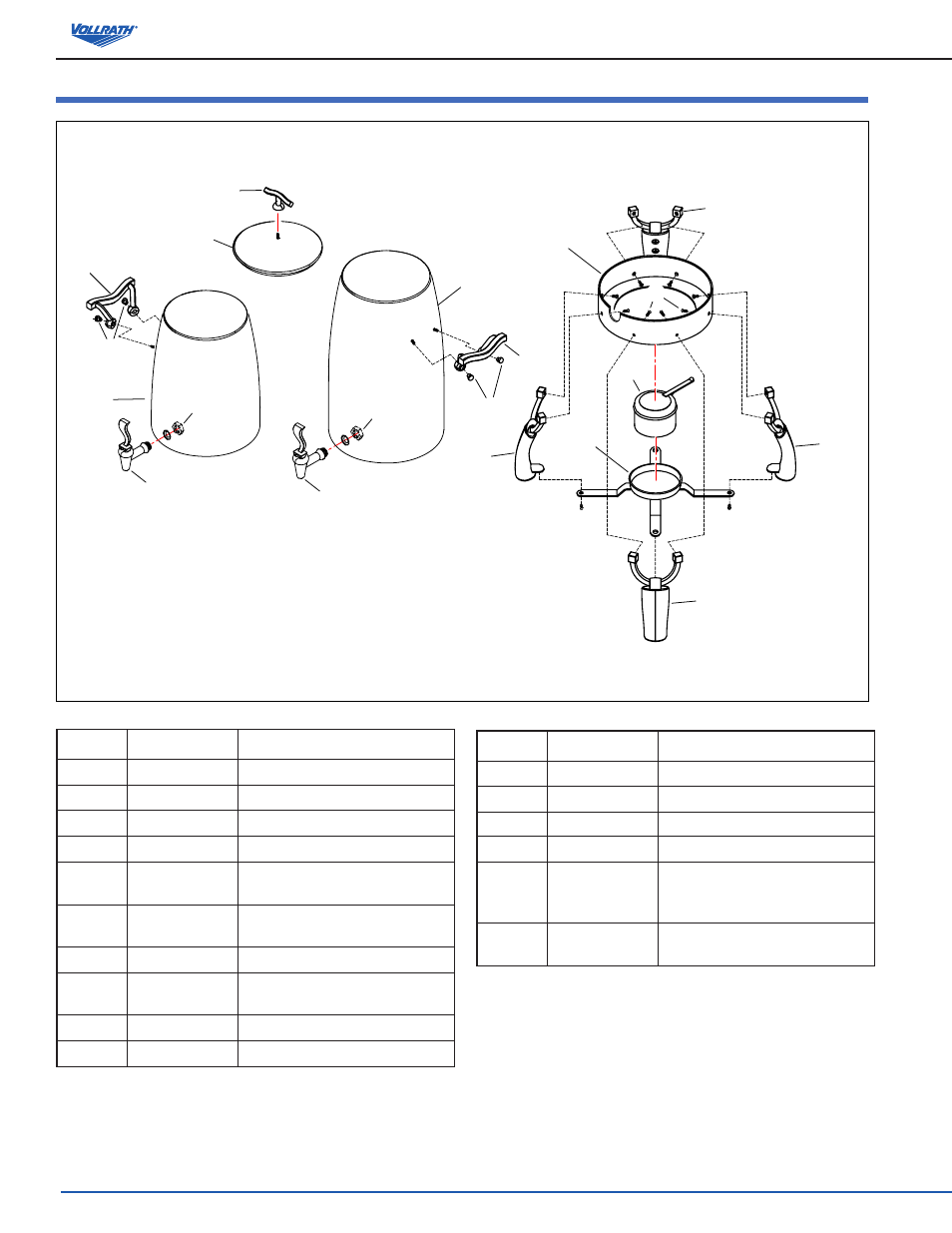

eXPloded vieW -
model
4635310
and
4635510
Callout Part Number Description
11 46864 Fuel Holder with Cover
12 N/A Fuel Frame
13 N/A Leg with Yoke
N/A Rubber Feet (not shown)
K4635710-1
Leg Kit, includes 2 Legs with Yoke,
Leg Frame, Fuel Band and Tray,
and all necessary hardware.
K4634020-1
Kit, includes Handle and bolts, 4
Rubber Feet, and all hardware.
Callout Part Number Description
1 4635510-1 Cover with Handle
2 N/A Handle, Cover
3 N/A Bolt, Hex Head
4 N/A Handle, Urn
5 K4635510-1
Coffee Urn, 5 gallon (includes
Faucet Kit, Handle and hardware)
6 K4635310-1
Coffee Urn, 3 gallon (includes
Faucet Kit, Handle and hardware)
7 N/A Faucet Nut
8 K4635520-1
Faucet Assembly
(includes Faucet Nut)
9 N/A Ring
10 N/A Nut and Screw
