Take Apart

Logic Board - 35

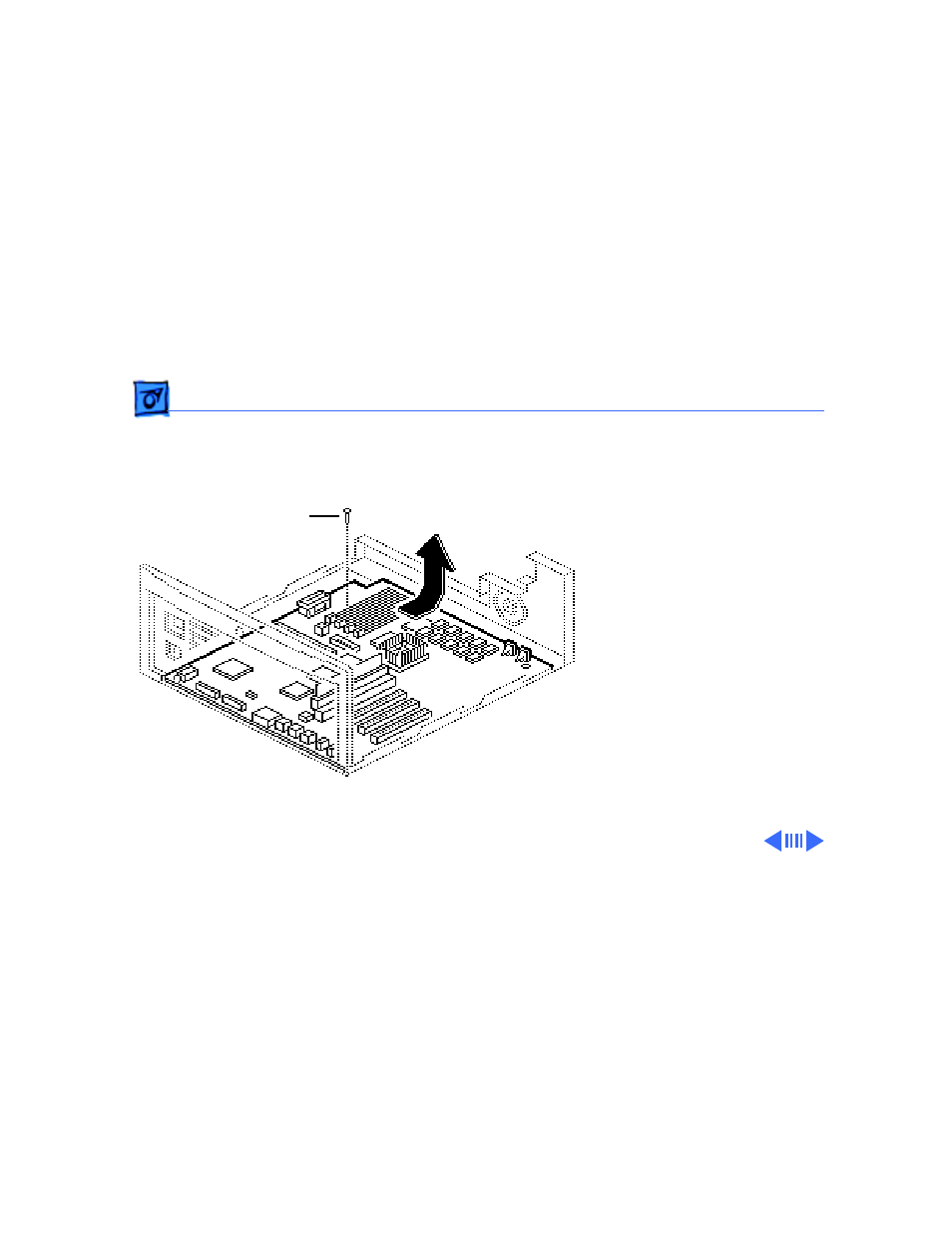

2 Remove the screw in the

center of the logic board.

3 Slide the logic board

toward the front about

1/2 inch and lift the

board out of the bottom

housing.

Screw
