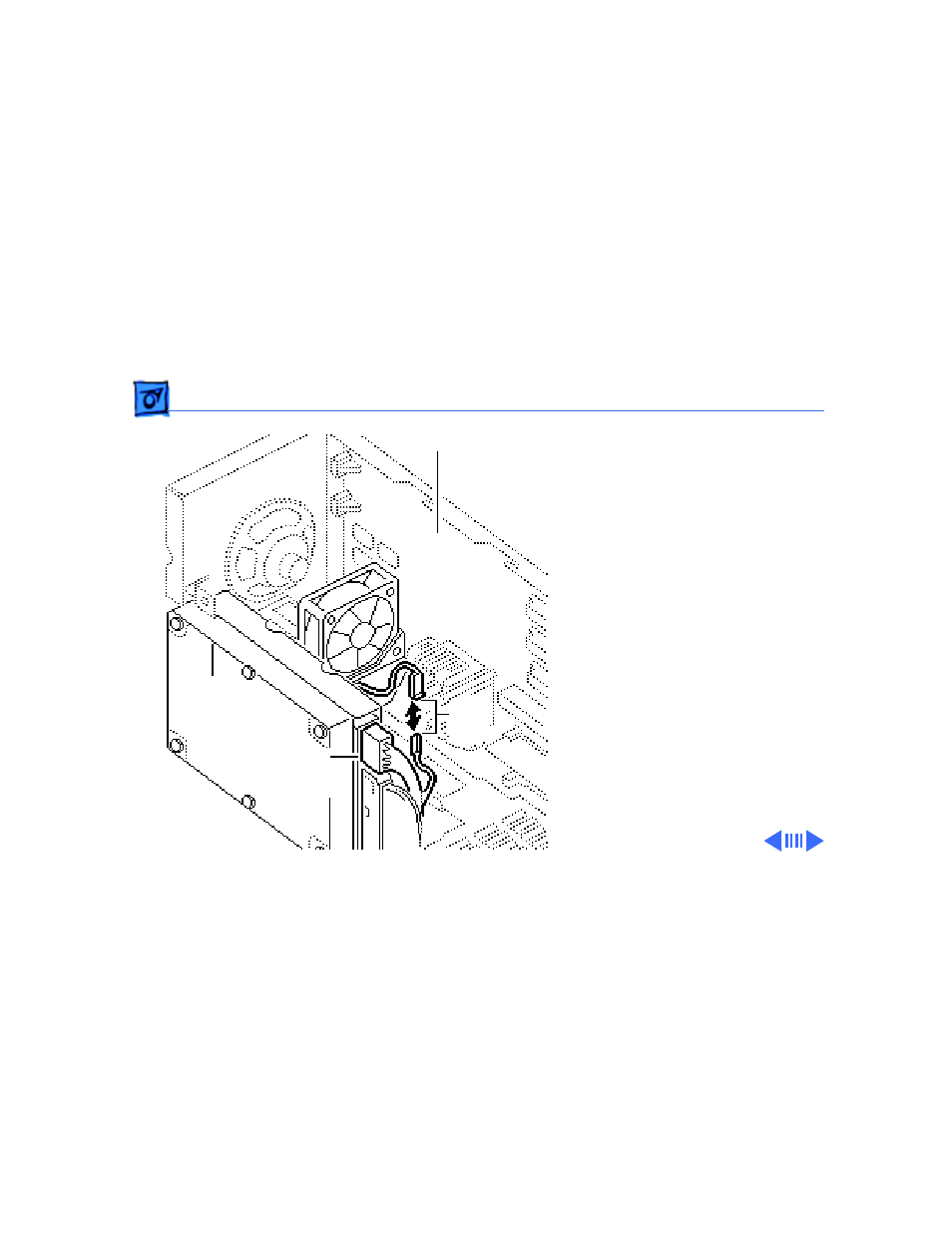

Take Apart

Fan - 27

1 Turn the computer

chassis on its side so that

the hard drive is facing

up.

2 Disconnect the SCSI

power cable from the fan

cable.

Logic Board

Hard

Drive

SCSI

Power

Cable

Fan

Cable
