Upgrades

Power Macintosh Upgrade - 11

1 Disconnect the following

cables from the old logic

board and reconnect

them to the new board:

• CD-ROM audio cable

(if present)

• Floppy drive cable

• SCSI data cable

Note:

You may find it

easier to connect the

cables if you remove the

drive chassis. Refer to

Take Apart.

Note

: The new SCSI

power cable is already

connected to the upgraded

logic board.

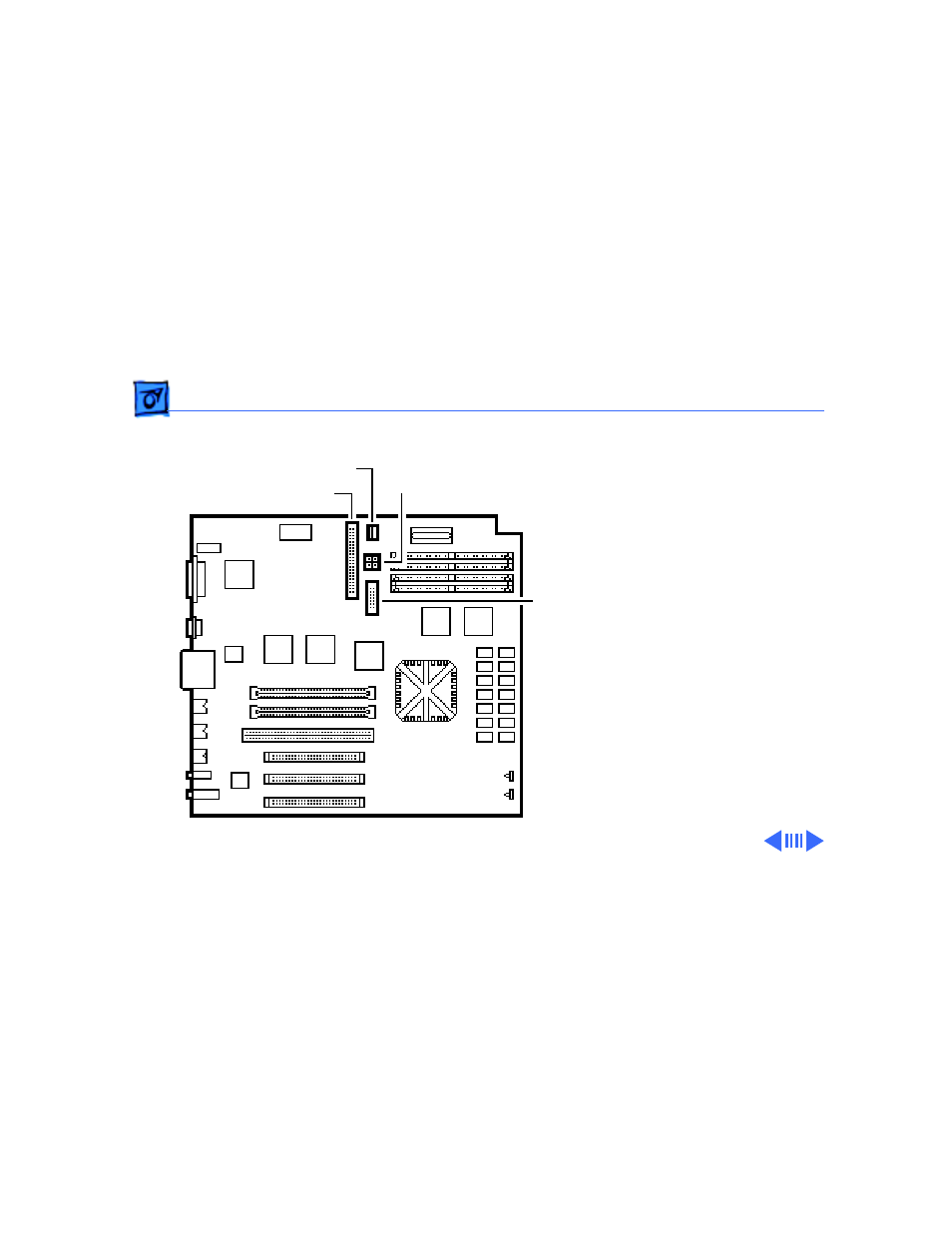

SCSI Data Cable

CD-ROM Audio

SCSI

Power

Floppy

Drive
