Take Apart

Hard Drive - 17

1 Disconnect the SCSI data

cable and the SCSI

power cable from the

hard drive.

2 Remove the hard drive

mounting screw from the

carrier.

3 Lift the back of the hard

drive and slide the hard

drive carrier out of the

drive chassis.

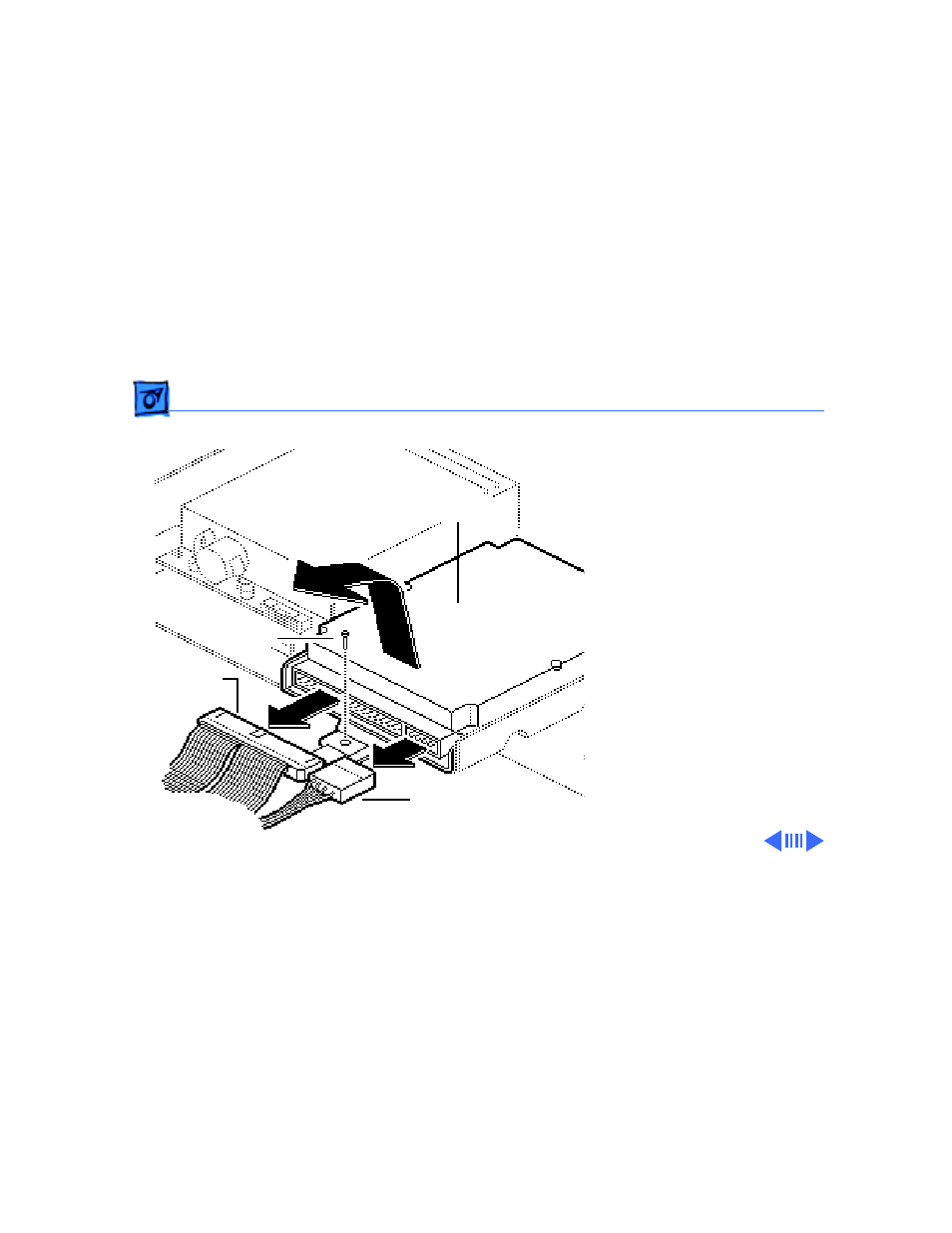

Hard Drive

Screw

SCSI Data

Cable

SCSI Power Cable
