Apple Power Macintosh 7100/80AV User Manual
Page 58
Take Apart
Power Supply - 6

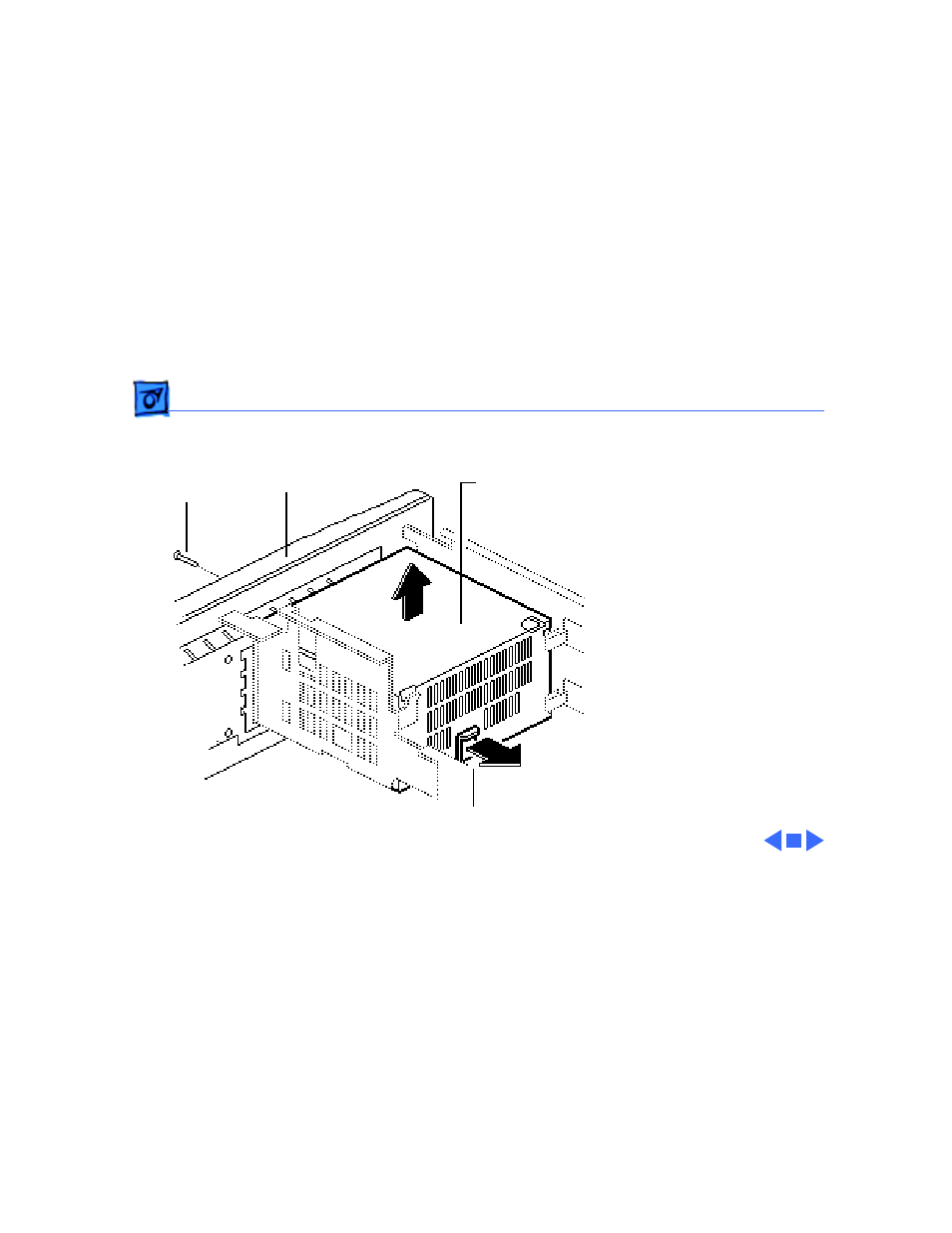

3 Remove the power
supply screw from the
rear panel.
4 Pry the latch away from
the base of the power
supply.
5 Grasp the power supply
and firmly lift it out of
the drive mount chassis.
Note
: The firm lifting
motion disconnects the
power supply’s
connector from the logic
board.
Power Supply
Screw
Rear Panel
Power Supply
Latch
