Dimensions in Inches (mm)

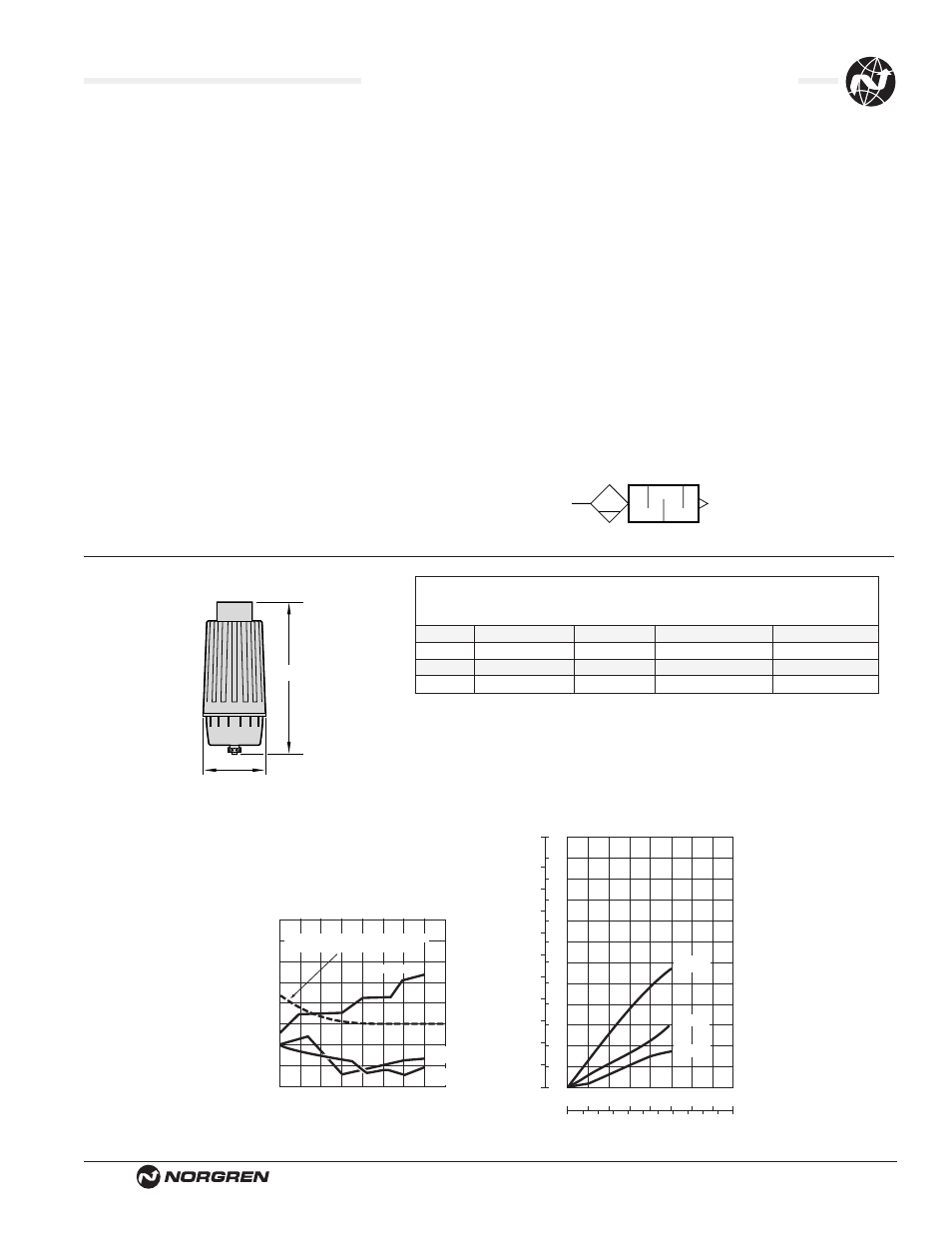

High Performance Coalescing Quietaire Mufflers
Port
Size
Part Flow Factor Dimensions
NPT Number Cv Dia. L
1/2 MQ004A 2.5 3.54 (90) 7.09 (180)
3/4 MQ006A 2.5 3.54 (90) 7.09 (180)
1 MQ008A 7.7 4.33 (110) 10.51 (267)
1-1/4 MQ010A 7.7 4.33 (110) 10.51 (267)
Female Thread
Dia.
L
100
80
60
70
63
125 250 500
1000 2000 4000 8000
Octave Band Center Frequencies —
Cycles Per Second
Sound Level —
Silencer Vs. Open Line
Sound Level — dBa
200
100
dm
3
/s
scfm
160
80
60
40
20
0
120
80
40
0
0 2
0 .2 .4 .6 .8
4 6 8 10 12
Back Pressure Vs. Air Flow
Back Pressure
Air Flow
psig
bar
90
110
Open Exhaust
Ear protection mandatory for full time
exposure to noise above this curve.
MQ008A
MQ010A
MQ004A
MQ006A
MQ004A
MQ008A
MQ010A
MQ006A
Performance Characteristics
Technical Data
Maximum Pressure: 150 psig (10.3 bar)
Maximum Temperature: 160°F (71°C)
Materials
Element: Steel, synthetic foam and fiber
Body: Aluminum
Sump: Polypropylene
Elastomer: Nitrile
Replacement Kits
Element:
MQ004A and MQ006A – 3236-01
MQ008A and MQ010A – 3237-01
Sump with Drain:
MQ004A and MQ006A – 70048-50
MQ008A and MQ010A – 70048-51
Graphic Symbol
● Easily replaceable cartridge element
● Corrosion resistant construction
● Snap-on liquid sump with manual drain to collect
coalesced oil.
● High-performance cartridge removes up to 99% of
the oil mist from the exhaust air.
