FIT-8-4 Littleton, CO USA Phone 303-794-2611 www.norgren.com

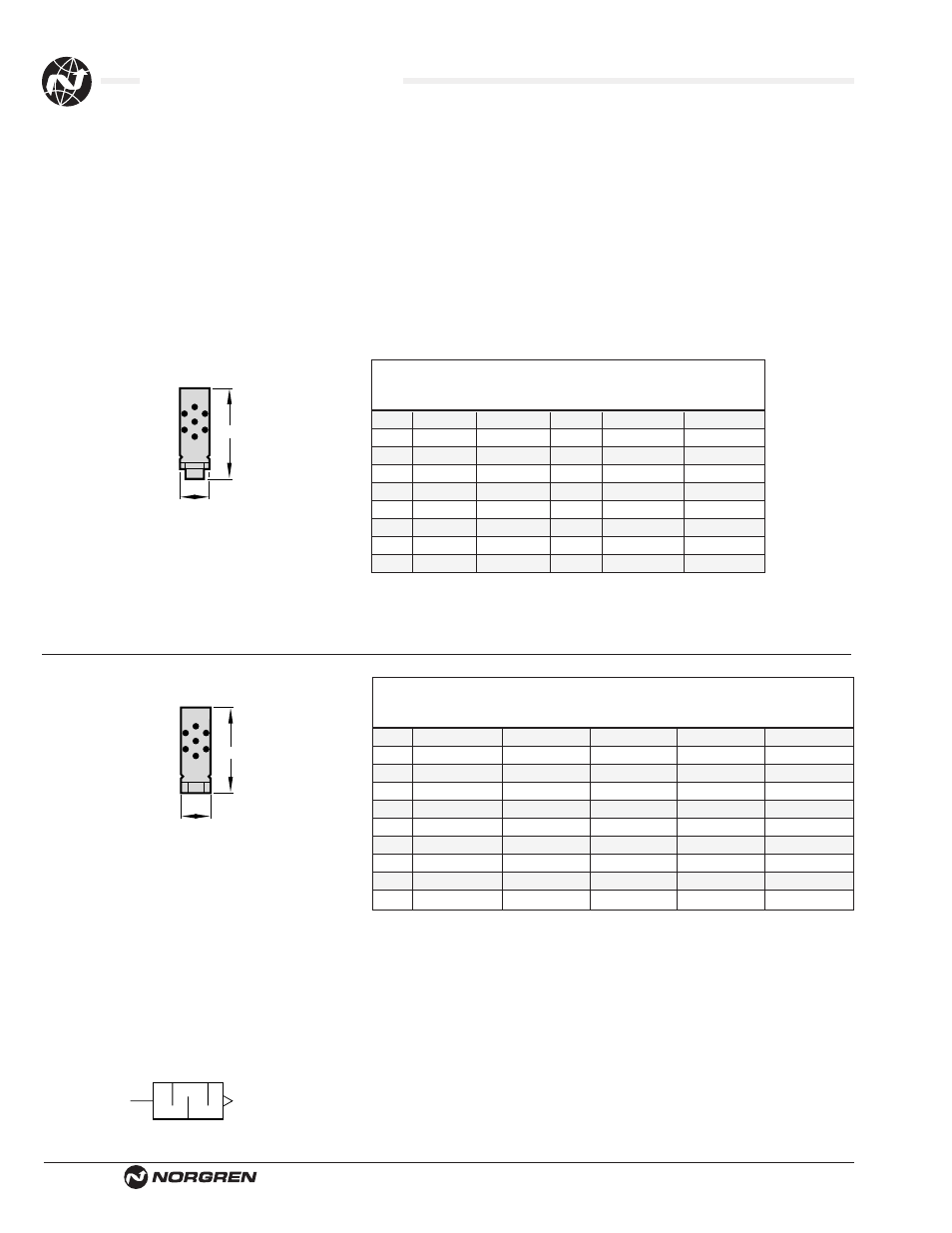

Shell Type Quietaire Mufflers
Dimensions in Inches (mm)
Port
Size
NPT ISO R Flow Factor Dimensions
NPT (std) (opt) Cv + -10% Hex. L
1/8 MA001A MA001B 0.8 13/16 (20.6) 1.67 (42.4)
1/4 MA002A MA002B 2.4 13/16 (20.6) 1.78 (45.2)
3/8 MA003A MA003B 5.7 1-1/4 (31.8) 3.08 (78.3)
1/2 MA004A MA004B 6.9 1-1/4 (31.8) 3.29 (83.5)
3/4 MA006A MA006B 18.0 2 (50.8) 4.65 (118.0)
1 MA008A MA008B 20.0 2 (50.8) 4.65 (118.0)
1-1/4 MA010A MA010C 42.0 2-1/2 (63.5) 5.67 (144.0)
1-1/2 MA012A MA012C 39.0 2-1/2 (63.5) 5.67 (144.0)
2 MA016A MA016C 59.0 3 (76.2) 6.61 (168.0)
2-1/2 MA020A MA020C – 4 (102) 7.13 (181)
Hex.
L
Male Thread
Female Thread
Port
Size
NPT ISO R Flow Factor Dimensions
NPT (std) (opt) Cv + -10% Hex. L
1/8 MB001A MB001B 2 13/16 (20.6) 2.00 (50.9)
1/4 MB002A MB002B 2.7 13/16 (20.6) 2.17 (55.2)
3/8 MBP03A MBP03B 3.2 13/16 (20.6) 2.17 (55.2)
3/8 MB003A MB003B 4.9 1-1/4 (31.8) 3.47 (88.1)
1/2 MB004A MB004B 5.9 1-1/4 (31.8) 3.62 (91.9)
3/4 MBP06A MBP06B 5.9 1-1/4 (31.8) 3.64 (92.4)
3/4 MB006A MB006B 13.5 2 (50.8) 5.28 (134.0)
1 MB008A MB008B 16.7 2 (50.8) 5.43 (138.0)
1-1/4 MBP10A MBP10B 17.4 2 (50.8) 5.51 (140.0)
Hex.
L
Technical Data
Maximum Pressure: 300 psig (20.7 bar)
Maximum temperature: 176°F (80°C)
Materials
Element: Brass wire
Base: Aluminum
Shell: Aluminum
Graphic Symbol
● Superior sound attenuation
● High flow capacity
● Low back pressure
● Corrosion resistant construction
● Brass mesh screen and aluminum construction provide improved
flow, longer life, and a cleanable element.
● 60 x 50 mesh – .007 wire diameter (several layers)
