FIT-8-14
Littleton, CO USA
Phone 303-794-2611
www.norgren.com

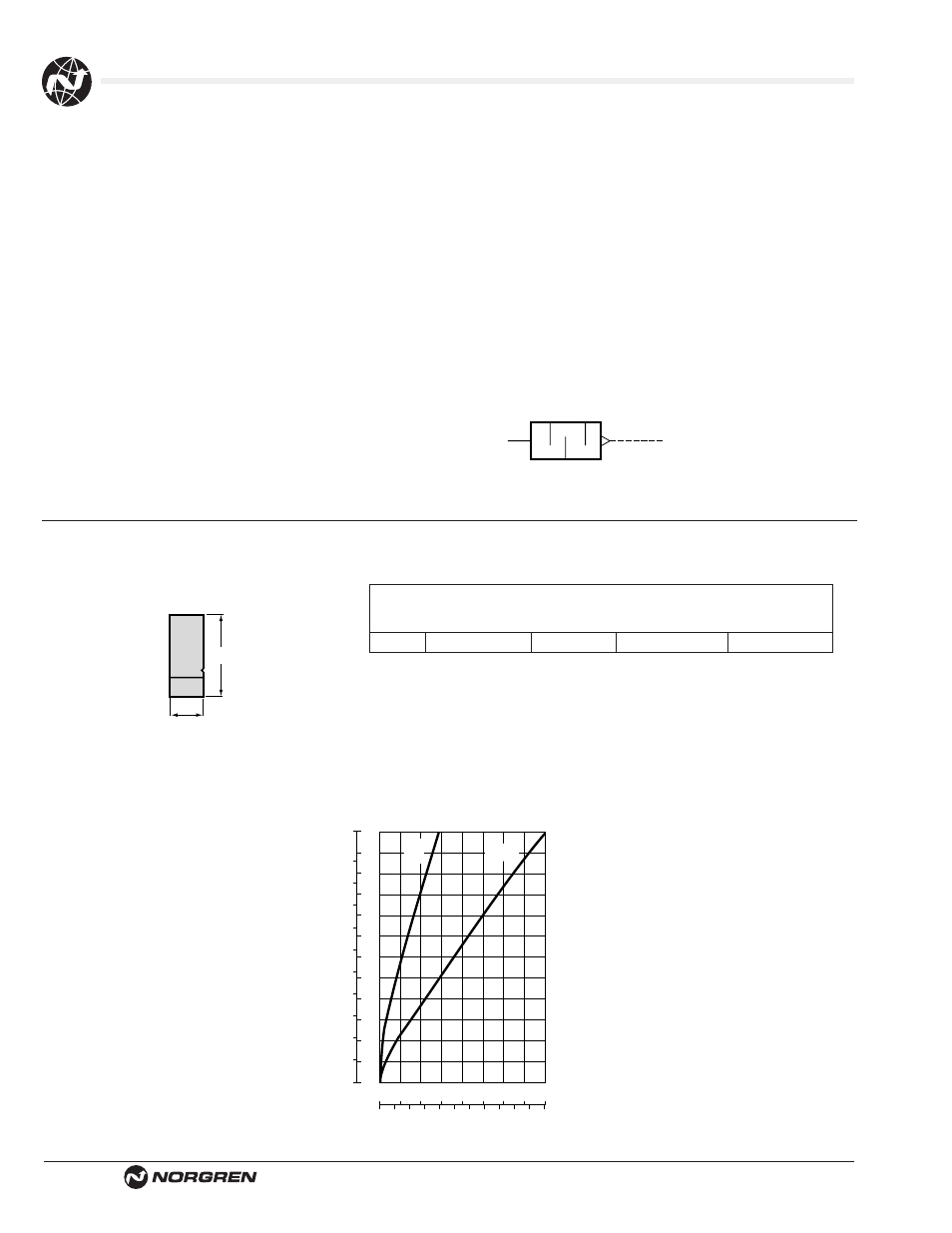

Quietaire Small Part Ejectors
Dimensions in Inches (mm)
Port
Size
Part
Flow Factor
Dimensions
NPT
Number
Cv
Dia.
L
1/4
ME002A
1.0
.81 (21)
1.84 (47)
Dia.
L
Female Thread
100
50
dm
3
/s
scfm
80
40
30
20
10
0
60
40
20
0
0
20
0
2
4
6
8
40
60
80
100 120
Applied Pressure Vs. Air Flow
Applied Pressure
Air Flow
Part
Ejectors
Open
1/4"
Line
psig
bar
Performance Characteristics
Technical Data
Maximum Pressure: 150 psig (10.3 bar)
Maximum temperature: 160°F (71°C)
Force at 12" (305 mm) from Ejector at 80 psig (5.5 bar)
line pressure
ME002A: 34 ozs. (9.5N)
Air Consumption at 80 psig (5.5 bar): 63 scfm (29.7 dm
3
/s)
Materials
Element: Brass cloth
Base: Aluminum
Graphic Symbol
● Reduction in noise and in air consumption
(when compared to an open pipe) with only a
minor reduction in thrust.
● Corrosion resistant construction.
