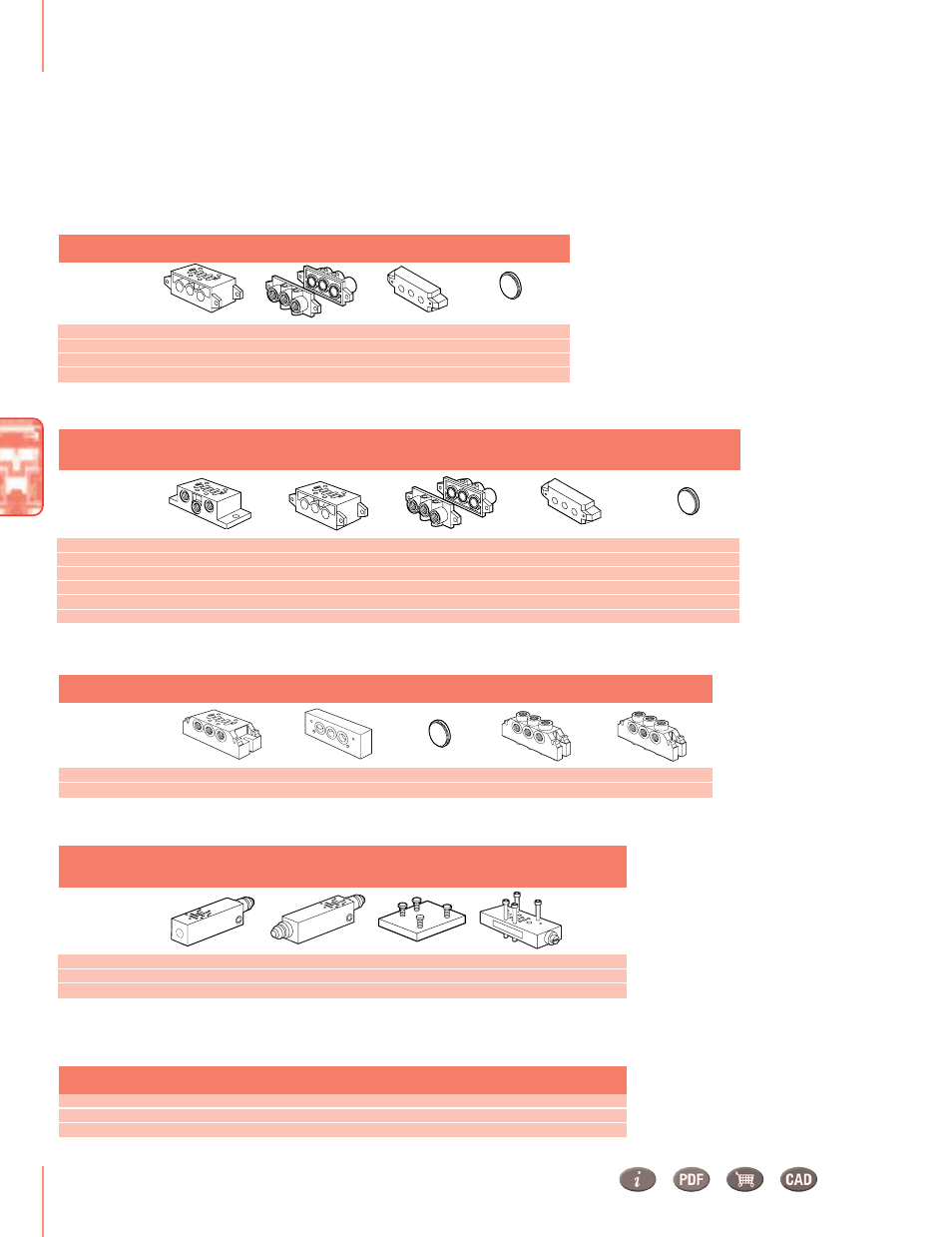

Modular Sub-base Modular Sub-base Transition plate Blanking disk
Side Ported End Plates (2)
Valves
www.norgren.com/usa
VAL- 150
ISO Star Series Valves
5/2 and 5/3 solenoid and air pilot actuated valves
VDMA 24 345 Form ‘A’ Form ‘C’ Form ‘D’
Single Station Sub-base Modular Sub-base Modular Sub-base Transition plate Blanking disk *
Side Ported Bottom Ported End Plates (2) (dual supply)
NPT #1 models (1/4) C/P19126 239-238B 239-289B CQM/22152/3/24 #1’#2 239-251
NPT #2 models (3/8) C/P19132 239-242B 239-291B CQM/22253/3/24 #2’#3 239-252
NPT #3 models (1/2) C/P19138 239-246B 239-293B CQM/22354/3/24 #3’#4 239-253
ISO G #1 models M/P19126 CQM/22152/3/21 CQM/22152/3/22 CQM/22152/3/24 #1’#2 FP8382
ISO G #2 models M/P19132 CQM/22253/3/21 CQM/22253/3/22 CQM/22253/3/24 #2’#3 FP8482
ISO G #3 models M/P19138 CQM/22354/3/21 CQM/22354/3/22 CQM/22354/3/24 #3’#4 FP8582
Single
Pressure Regulator
Pressure Regulator Blanking Plate Sandwich Flow
port 1 regulated ports 2 & 4 regulated Control
#1 models RM1A-8B† DRM1A-8-8B† CQM/22152/3/23
#2 models RM2A-8B† DRM2A-8-8B† CQM/22253/3/23
#3 models RM3A-8B† – CQM/22354/3/23 CQM/22354/3/26
Accessories
* Only suitable for specific base range.
VDMA 24 345 Base Range
Single Pressure Dual Pressure Single Pressure Single Pressure
port 1 regulated ports 2 & 4 port 2 Port 4
ISO #1 V71020-KB1 V71022-KB4 V71022-KB2 V71022-KB3
ISO #2 V71020-KC1 V71022-KC4 V71022-KC2 V71022-KC3
ISO #3 V71020-KD1 V71022-KD4 V71022-KD2 V71022-KD3
Sandwich Regulators (valve mounts to regulator,
regulator mounts to subbase)
NPT #1 models 1001 (1/4) 1002 (3/8) 1009 (#1’#2) 1001-6-1
NPT #2 models 2101 (3/8)1 2102 (1/2) 2109 (#2’#3) 2106-1
NPT #3 models 3101 (3/4)1 3102-75-75 (3/4")2 –
3102-75-B (3/4") 3
Side Ported Modular Base Range
1-side and bottom ported 2-both ends ported 3-one end ported
Modular Sub-base Transition Plate Blanking Disk** Side End Plate Single End Plate
Side and bottom ported (dual supply) All Ports Closed End Ports Open
ISO #1 models (G1/4) CQM/22152/3/27 CQM/22152/3/29#1’2 M/P43173 CQM/22152/3/28 CQM/22152/3/31
ISO #2 models (G3/8) CQM/22253/3/27 M/P43174 CQM/22253/3/28 CQM/22253/3/31
Universal Base Range
** Universal base range only.
† CNOMO style valves recommended
