MSI PM-104 User Manual
Page 38
MS-92B9 Server
2-22

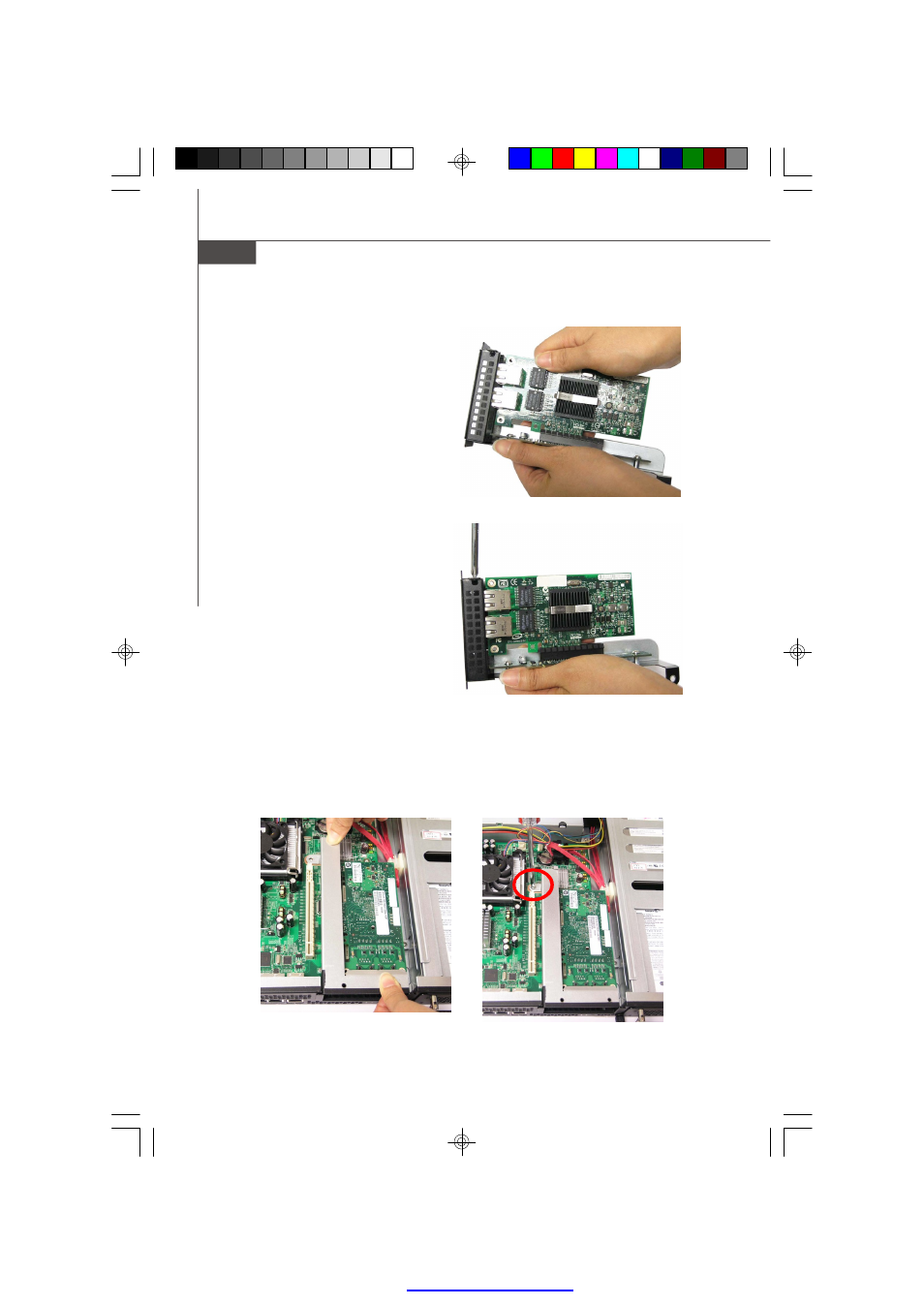

6. Replace the riser card bracket to the chassis. Align the riser card golden fingers
with the onboard PCI slot. Push the riser card bracket carefully down with even
force on both sides.
7. Screw the riser card bracket securely to the chassis.
4. Insert the expansion card into the
PCI slot on the riser card.
5. Sc rew the expans ion c ard
firmly to the riser card bracket.
92B9v1.0-2.p65
2008/9/8, 上午 10:02
22
PDF created with pdfFactory Pro trial versi
