MS-92B9 Server
2-6

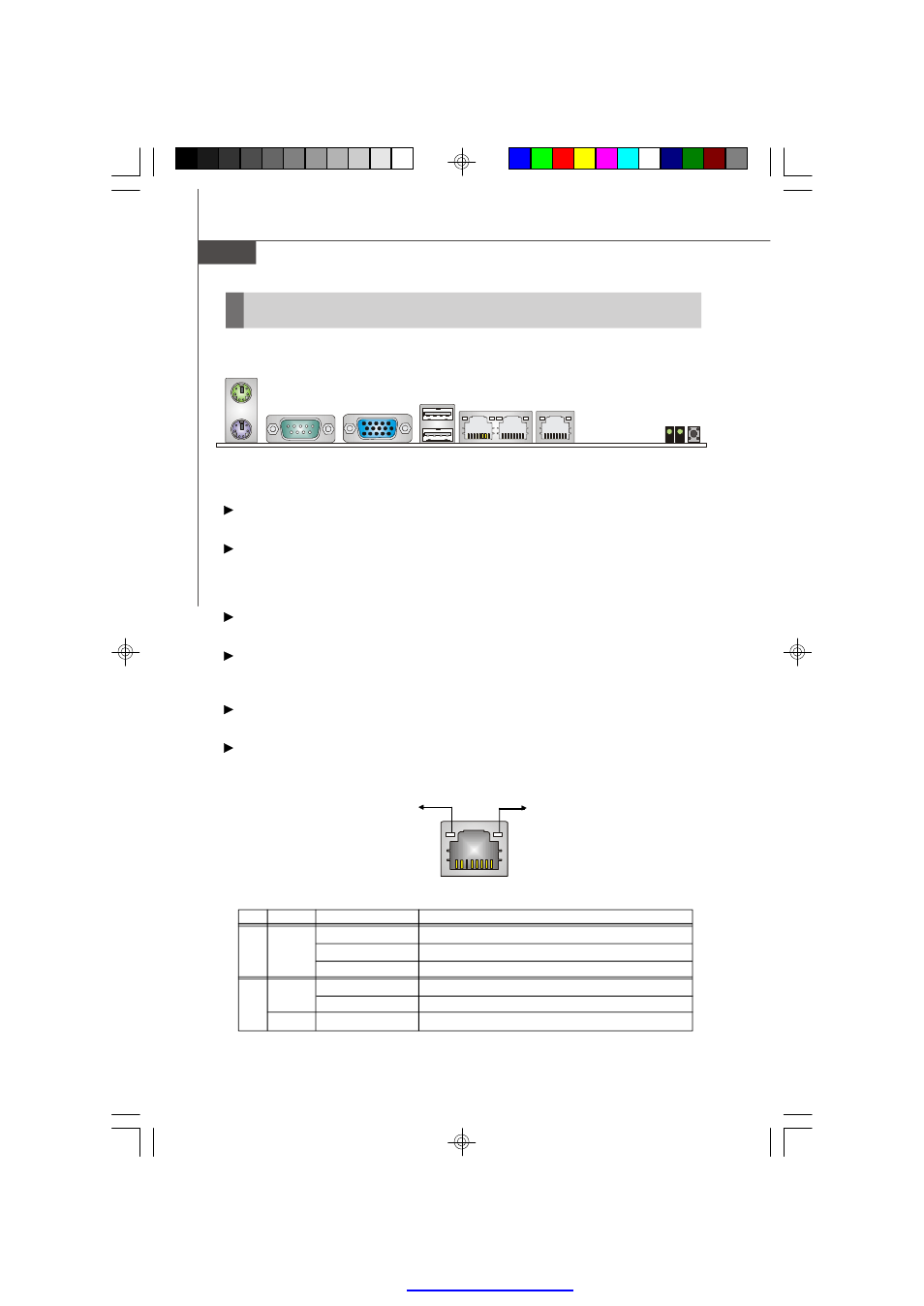

Back Panel I/O
LED Color LED State Condition
Off LAN link is not established.
Left Orange On (steady state) LAN link is established.
On (brighter & pulsing) The computer is communicating with another computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
Right On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
Mouse/Keyboard
The standard PS/2 ® mouse/keyboard DIN connector is for a PS/2 ® mouse/keyboard.
Serial Port
The serial port is a 16550A high speed communications port that sends/ receives 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly to the
connector.
VGA Port
The DE-15 female connector is provided for monitor.
USB Port
The USB (Universal Serial Bus) port is for USB devices such as keyboard, mouse, or
other USB-compatible devices.
LED / Button
LED1: HDD LED; LED2: Power LED; BTN1: Power Button.
LAN
The standard RJ-45 LAN jack is for connection to Local Area Network (LAN). You
can connect a network cable to it.
Link/Active Indicator Mode Indicator
RJ-45 LAN Jack
Keyboard
Mouse
Serial Port
USB Ports
VGA Port LED1 / 2
BTN1
LAN1
(Gigabit)
LAN2
(Gigabit)
LAN3
(10/100Mbps)
