2-19

Hardware Setup

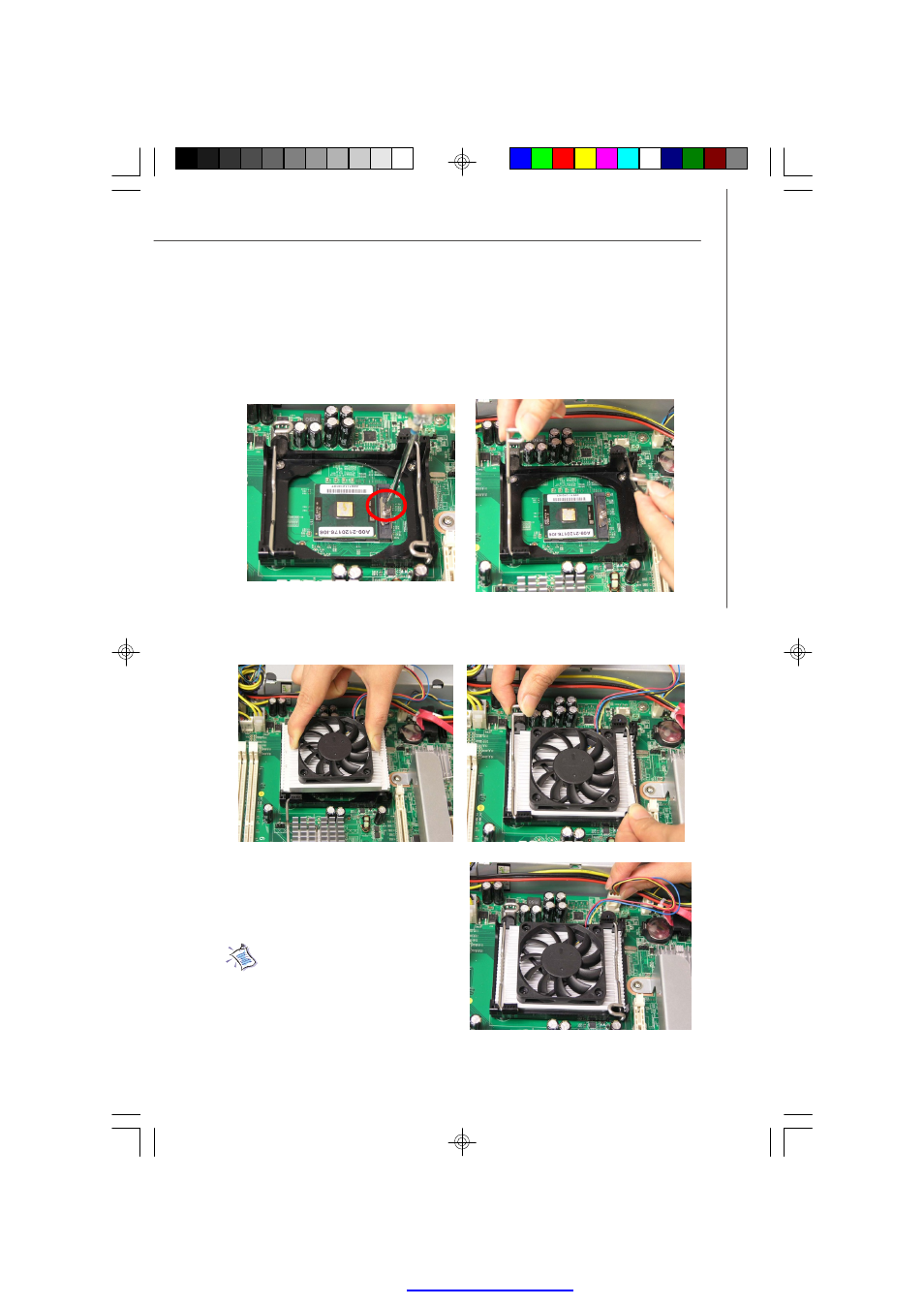

6. Make sure that you actuate the locking mechanism with a screwdriver after

installing the CPU.

7. Locate the metal clips on the retention mechanism.

8. Loosen the metal clips for heatsink installation.

9. Mount the cooler set (fan & heatsink

bundled) on top of the CPU and fit it

into the retention mechanism.

10. Press the clips into the hooks to se-

cure the cooler set in place.

11. Connect the fan power cable from

the mounted fan to the fan power

connector on the board.

Note: The cooler set has to be

ins talled to prev ent the
CPU from overheating.
