Memory

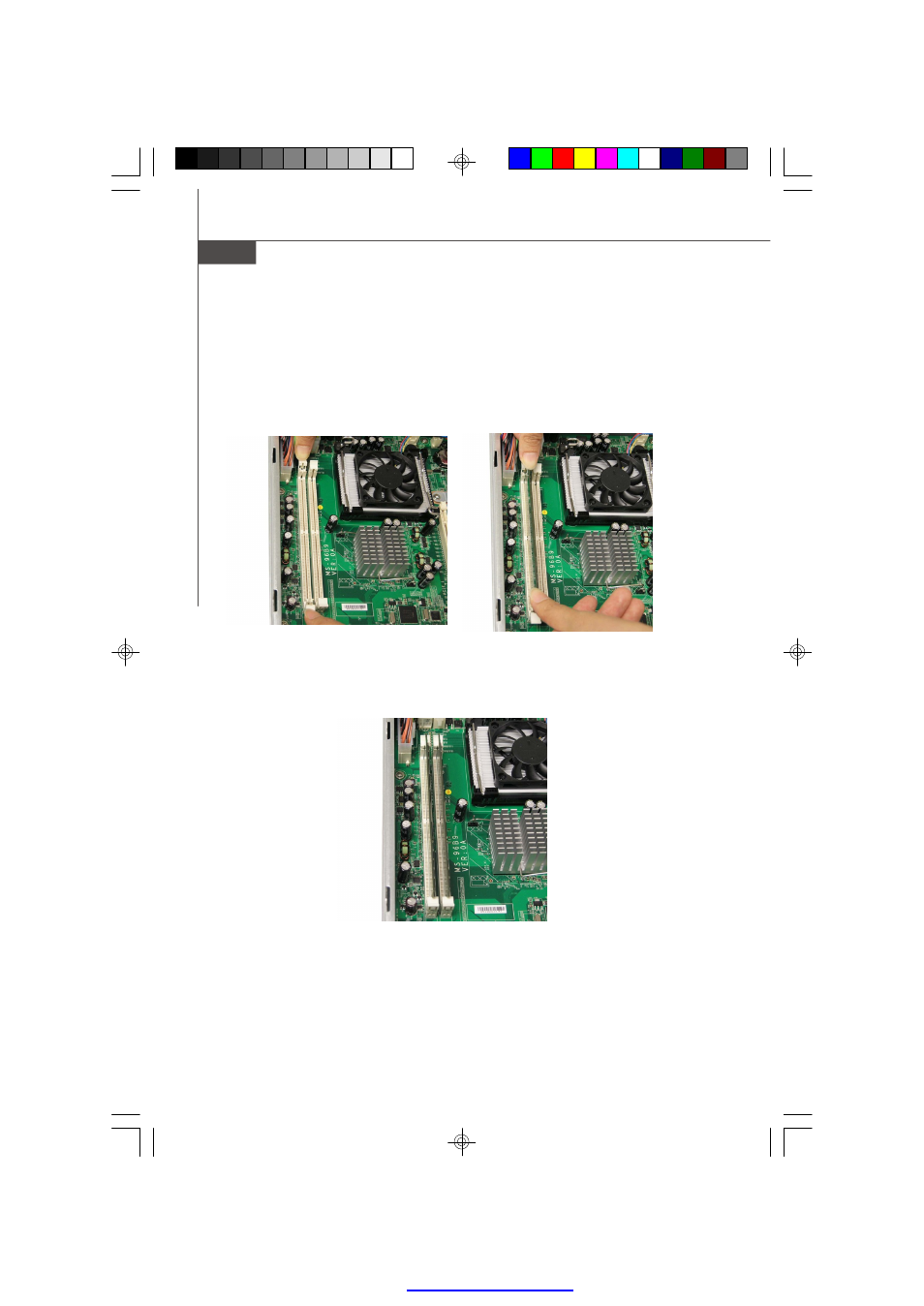

1. Locate the DIMM slots on the mainboard. Flip open the retaining clip at each side
of the DIMM slot.
2. Align the notch on the DIMM with the break on the slot. Insert the DIMM vertically
into the DIMM slot. Then push it in until the golden finger on the DIMM is deeply
inserted in the DIMM slot. The retaining clip at each side of the DIMM slot will
automatically close.
3. Follow the same procedures to install more memory modules if necessary.
