Page 24
MS-92B9 Server
2-8

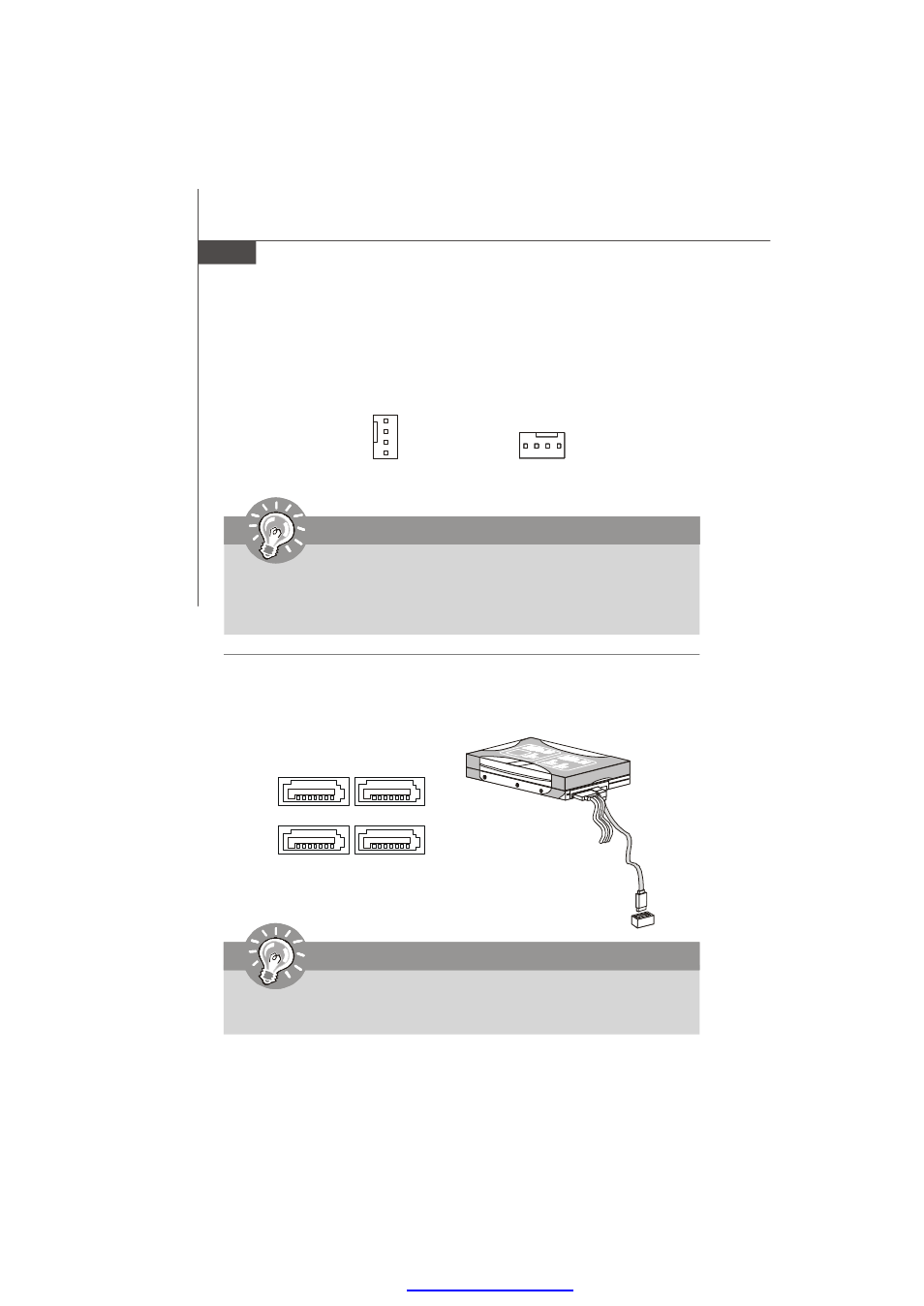

Fan Power Connector: CPU_FAN1, SYS_FAN1 / 2
The fan power connectors support system cooling fan with +12V. When connecting
the wire to the connectors, always note that the red wire is the positive and should
be connected to the +12V; the black wire is Ground and should be connected to GND.
If the mainboard has a System Hardware Monitor chipset onboard, you must use a
specially designed fan with speed sensor to take advantage of the CPU fan control.
Important
1. Please refer to the recommended CPU fans at processor
’s official website
or consult the vendors for proper CPU cooling fan.
2. Users are suggested to enter the BIOS Setup Utility to set up the Smart Fan
Control function.
Important
Please do not fold the SATA signal cable into 90-degree angle. Otherwise,
data loss may occur during transmission.
Serial ATA Connector: SATA0, SATA1, SATA4, SATA5
This connector is a high-speed Serial ATA interface port. Each connector can con-
nect to one Serial ATA device.
CPU_FAN1,
SYS_FAN1
SE NS OR
+1 2V
GND
CONTROL
SYS_FAN2
S
E
N
S
O
R
+
1
2
V
G
N
D
C
O
N
T
R
O
L
SATA5
SATA4
SATA1
SATA0
