2.2.1.3 Menu
Menu allows one selection option, Pulse Rate Window. The Pulse Rate Window provides a means to register the
energy-to-pulse outputs. See Figure 5.

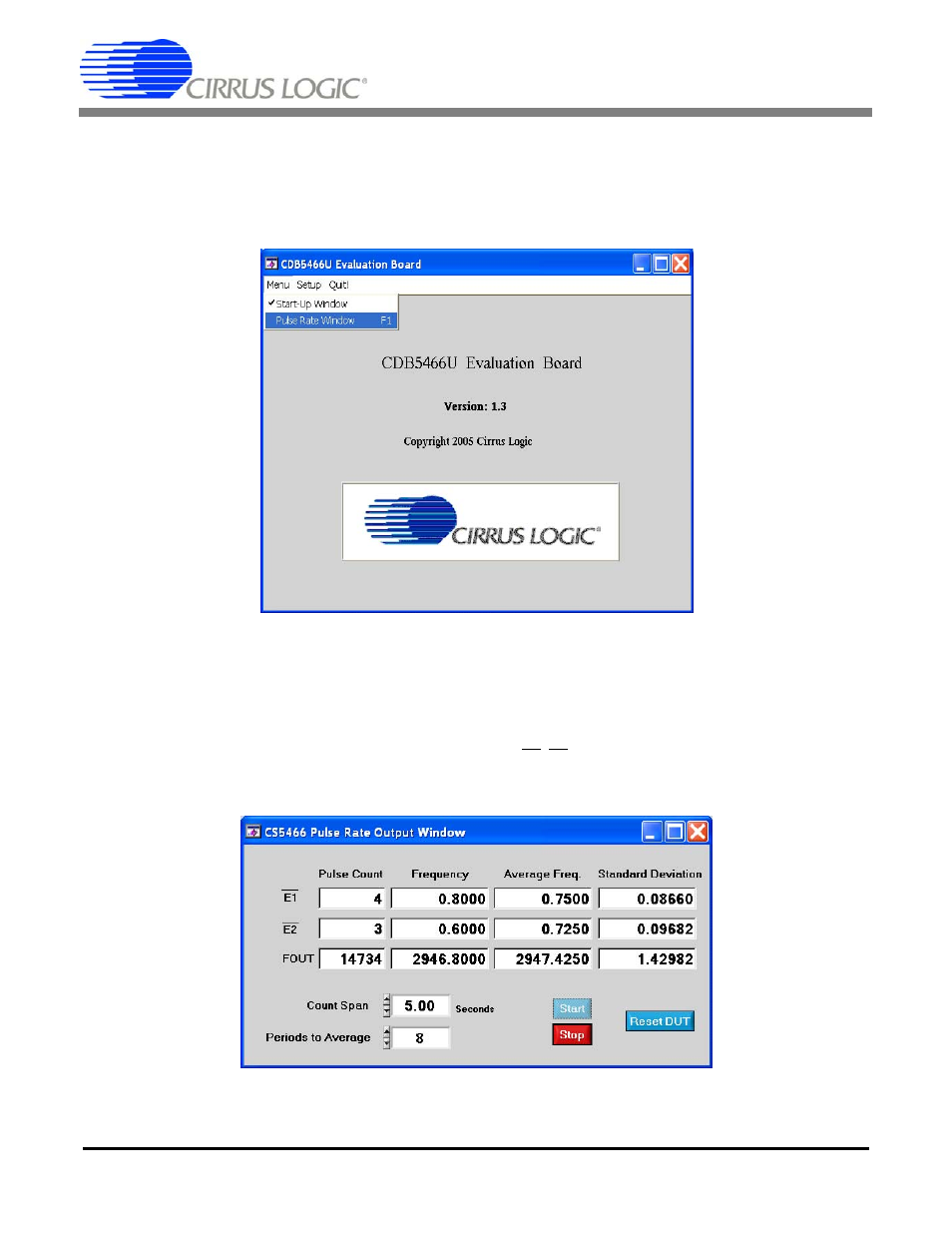

Figure 5. CDB5466 Evaluation Board
Upon selecting Pulse Rate Window, the CS5466 Pulse Rate Output Window will appear.
2.2.2 CS5466 Pulse Rate Output Window
The Pulse Rate Output Window provides a means to access the E1, E2 and FOUT pin of the CS5466. See Figure 6.
Figure 6. CDB5466U Pulse Rate Output Window
