4.3 OS Manager in DSP Composer
4.3 OS Manager in DSP Composer
Most configuration information described in Section 4 can be controlled in DSP Composer. The OS Manager indices are
available in the Audio In, Audio Out, and System blocks. To insert these, simply drag the Audio In, Audio Out, and System
blocks to the workspace. When the Audio In, Audio Out, and System blocks are on the workspace, the pre-kick and runtime
controls are accessible by double-clicking in the corresponding blocks. Runtime controls such as PCM Config, Autodetect,
and Autoswitch can be enabled by double-clicking the System block, as shown in
Fig. 4-2 .

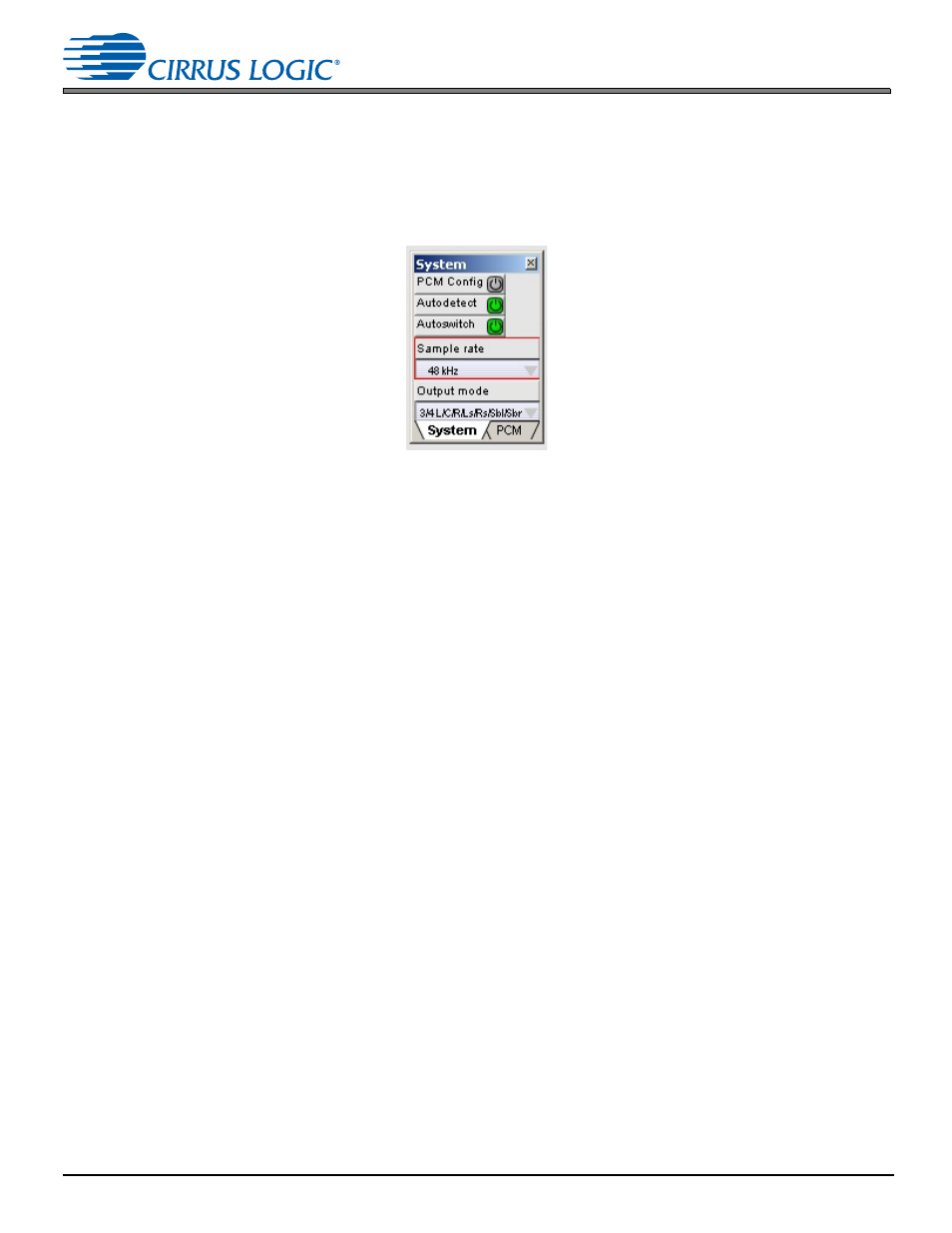

Figure 4-2. Autodetect and Autoswitch
The controls are adjustable during runtime to interact with the DSP in a similar way as would a host microcontroller in an
actual system.
Fig. 5-2 shows that when you initially drag the Audio In block onto the workspace, the Audio In Device
Properties automatically pops up, prompting to the user to select the input source and data format. This is also accessible
by right-clicking the Audio In block.
