AN300REV1 9
AN300

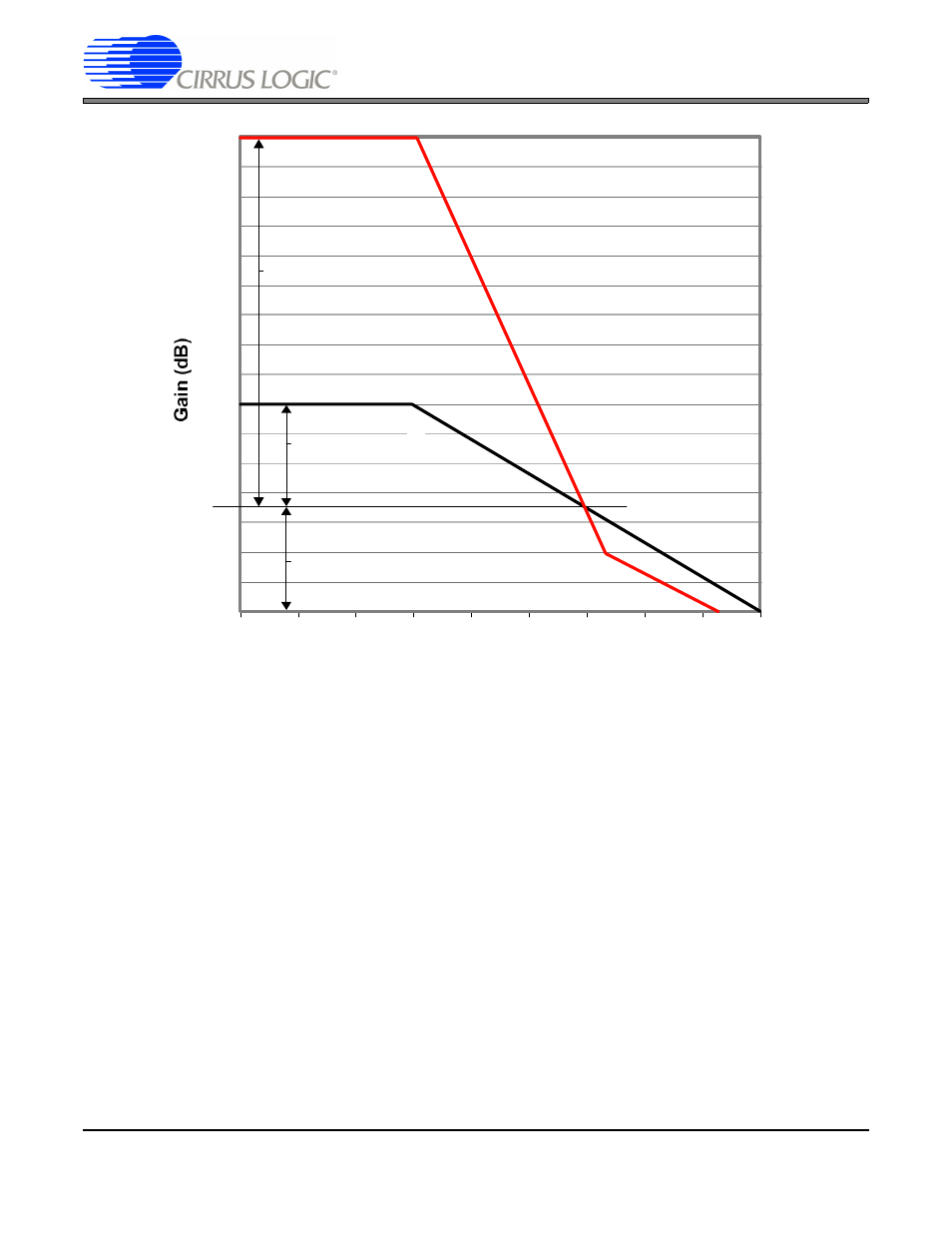

Figure 12. Open Loop Gain Comparison
If an operational amplifier with only 120 dB of open loop gain is configured for a forward gain of 400X (52 dB). This
leaves only 68 dB of loop gain. A loop gain 68 dB is a factor of about 2500. Therefore, this amplifier set for a closed
loop gain of 52 dB, would be able to reduce open loop linearity error by a factor of 2500. This factor is a billion
times less (that is 1,000,000,000 times less) than what the CS3001 can achieve in the same configuration.
-20
0
20
40
60
80
100
120
140
160
180
Frequency (Hz)
0.1 10 1k 100k 10M 0.01 1 100 10k 1M
Typical Op Amp
CS3001
52
Gain = 52 (400X)
Gain = 120 - 52 = 68
Loop Gain = 300 - 52 = 248
AOL = Open Loop Gain.
200
220
240
260
280
300
ACL
