0 1
2 3
21
28 27
29
28
25
26
23
24
20
19
15
14
21
22
22
16
17
18
19
1 5062034B Patas (Vea Nota) 2
2 5062034B Patas (Vea Nota) 2
3 5062031B Asas 2
4 ***** Pernos de 1/4" -20 x 1 3/4" 8
5 ***** Tuerca con Rosca 1/4" -20 10
6 5062022B Barra Transversal 3
7 5062030B Puntales 2
8 ***** Pernos Eje de 1/4" -20 x 2-1/4" 2
9 ***** Espaciadores Metálicos Para las Ruedas 2
10 2011902 Ruedas 2
11 2090572 Tapas Plásticas 4
12 ***** Arandelas de Goma 2
13 5010106 Perillas de Soporte del Ventilador 2
14 * Perilla del Interruptor 1
15 * Tornillo de 6-32 x 1/4" 1
16 * Cubierta del Motor 1
17 * Interruptor 1
18 * Juego de Alambre Flexible 1
19 * Tornillo #6 x 5/8" PTH 3
20 02030021B Motor 1
21 05060016
Soporte Pivote con Inserto 2
22 2091162 Tornillo #8 x 1/2 Tipo F 4
23 5097125BK Rejilla Trasera 1
24 5090045 Tornillo 10-32 x 1/2 HWH SERR F-ZP 1
25 5090044 Tornillo Prisionera de 1/4-28 x 3/8" 1
26 5082045BK Paleta 1
27 5097120BK Rejilla Delantera 1
28 2091143 Tornillo #8 x 3/8" PPH Tipo F 4
29 02084613 Ojo de Buey 1
NO. DE NÚMERO
REF. DE PIEZA DESCRIPCIÓN CANT.

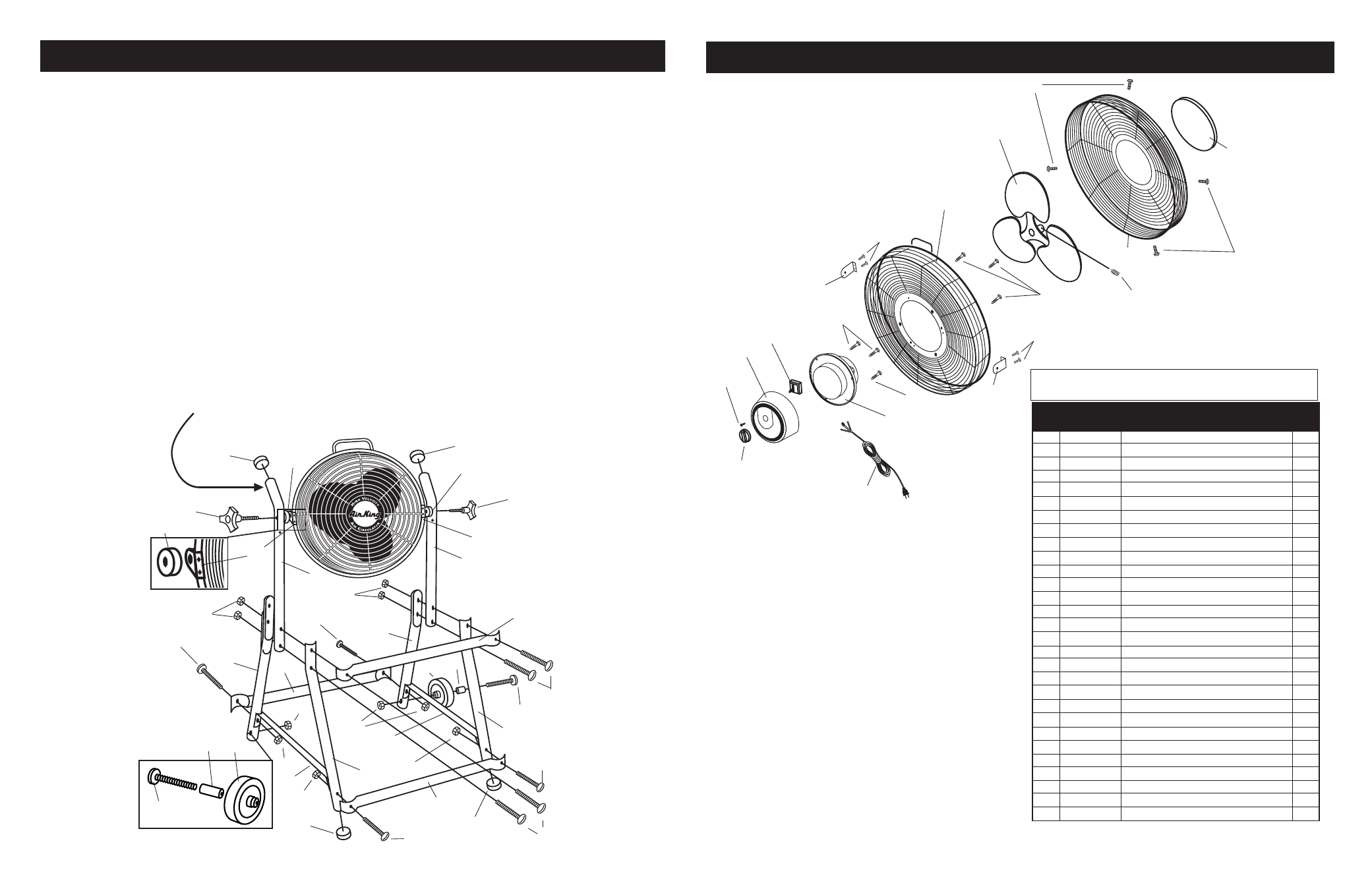

ASSEMBLY
NOTE: For 46" height use lower hole on handle; for 48" height,
use upper hole on handle.
1. Attach one Front Leg (1) and one Back Leg (2) into lower of
two Holes of each Handle (3) using a 1-3/4" Bolt (4) and a
1/4"-20 Nut (5).
2. Connect the two Leg and Handle Assemblies, with one Cross
Brace (6) using a 1-3/4" Bolt (4) and a 1/4"-20 Nut (5) through
the upper Hole in each Handle.
3. Bolt Bottom Cross Braces (6) and Struts (7) together using the
1-3/4" Bolts (4) and the 1/4"-20 Nuts (5).
4. To attach Wheels, insert 2-1/4" Axle Bolt (8) and Metal Spacer
(9), through Wheel (10), and into the bottom Hole on each Back
Leg. Secure with 1/4" -20 Nuts (5).
NOTE:
Lengthened Wheel Hub side goes towards Leg, Spacing
Wheel away from Tube when assembled.
5. Slip Plastic Caps (11) over tubing ends at the top of the Handles
and also at the bottom of the Front Legs.
6. Lay Fan on the floor, front side down.
7. Place Stand on floor, Wheels up, with Handles on each side of
Fan. Align Handle Holes with the Pivot Bracket Assembly (21)
in Rear Grill.
8. Place Rubber Spacers (12) between the Stand Handles and
sides of the Fan. Then thread Fan Support Knobs (13) through
MODELO 9219 MODEL 9219
NOTE: Bend of Handle must be toward side of Wheels.
1
1
2
2
3
3
4
4
5
5
6
6
6
5
5
5
4 4
4
8
4
9
10
11 11
11
11
13
13
12
12
5
7
7
21
5
10 9
8
21
12
the Handles and Rubber Spacers into the Pivot Bracket Assembly
in Rear Grill.
9. Check all bolts for tightness.
10.Lift the stand to its upright position.
OPERATION
1. Plug in cord and select desired operating speed with knob on
back of fan.
WARNING:
This Fan should be used only in a clean, dry environment.
Mounting this product in any way other then specified in the instruction
sheet will null and void the manufacturers waranty.
MAINTENANCE
WARNING: ALWAYS UNPLUG THE CORD BEFORE SERVICING.
Cleaning: Use a soft cloth and a mild soap solution such as liquid dish
washing detergent.
CAUTION:
Do not use gasoline, benzine, thinner, harsh clean-
ers, etc. as they will damage the Fan. NEVER use ALCOHOL OR
SOLVENTS.
Dry all parts with a soft cloth completely before reconnecting to
power supply.
Storage: When not in use, keep unit in a clean dry place.
MOTOR IS PERMANENTLY LUBRICATED.
7 5084008 Rev. M 9/07 2 5084008 Rev. M 9/07
Note: Ver en la página 6 el Ensamblado del Soporte. El Número
de Identificación de cada Artículo está en la Lista de Piezas.
* Incluido en el número 02030021B motriz de la parte
***** Contenidas en la Bolsa de Piezas. (Número de pieza: 2098164A)
