DESCRIPTION

The Air King 16” (40,6 cm) Remote Controlled - Wall Mounted

Oscillating Fan features manual push button and remote control

operation and also features a Timer function. It has a permanently

lubricated motor and a 6' (1.82 m) 18/3 cord set. It also features

an integrated safety plug.

SPECIFICATIONS

Motor .................................120V, 60 Hz

Blade diameter ...................16" (40,6 cm)
Speeds.................................3
Control ...............................Push Button/Remote Control

Air flow distribution ...........45°

Approvals ...........................ETL Listed. Close mesh Fan Guard

meets OSHA requirements.

1

9046ES

Rev. A 5/08

WALL MOUNTED

OSCILLATING FAN

16" (40,6 cm) MODEL 2EKZ7/9046

MODEL

2EKZ7/9046

SPEED

HIGH MED LOW

CFM

1480

1340

1140

M

3

/s

0.70

0.63

0.54

RPM

1275

1180

1040

Amps

0.40

0.36

0.32

Watts

50

43

37

dBA

44

39

34

*

Tested in accordance with AMCA standard 230-99

4

9046ES

Rev. A 5/08

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should

always be followed to reduce the risk of fire, electric shock

and injury to person, including the following:

1. Read all instructions before using Fan.

2. Make certain that the power source conforms to the electrical

requirements of the Fan.

3. Use this Fan only as described in this manual. Any other use

not recommended by the manufacturer may cause fire, electrical

shock, or injury to persons.

4. Unplug power cord before installing, servicing, or moving the Fan.

WARNING: DO NOT DEPEND UPON THE ON-OFF SWITCH

AS THE SOLE MEANS OF DISCONNECTING POWER WHEN

INSTALLING OR SERVICING THE FAN. ALWAYS UNPLUG THE

POWER CORD.

5. This Fan must NOT be used in potentially dangerous

locations such as flammable, explosive, chemical-laden

or wet atmospheres.

6. DO NOT use Fan in or near a window. Rain may create an

electrical hazard.

7. The power cord is equipped with a three-prong grounded

plug that must be inserted into a matching receptacle. Under

no circumstances should the grounding prong be cut off the

plug. Where a two-prong wall receptacle is encountered, it

must be replaced with a properly grounded three-prong re-

ceptacle installed in accordance with the National Electrical

Code (NEC) and all applicable local codes and ordinances.

This work must be done only by a qualified electrician, using

copper wire only.

WARNING: USE OF A THREE-PRONG TO TWO-PRONG ADAPTER

IS NOT RECOMMENDED. IMPROPER CONNECTION MAY CRE-

ATE THE RISK OF ELECTRIC SHOCK. USE OF SUCH ADAPTERS

IS NOT PERMITTED IN CANADA.

WARNING: THIS PLUG IS A SAFETY FEATURE. TO REDUCE

THE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INjURY,

DO NOT REMOVE, REPLACE, REPAIR OR TAMPER WITH

THE ORIGINALLY SUPPLIED PLUG. IF THE FAN DOES NOT

FUNCTION PROPERLY, IT MAY bE DUE TO THE SAFETY DEVICE

INCORPORATED IN THIS PLUG.

8. Where possible, avoid the use of extension cords. If they must

be used, minimize the risk of overheating by ensuring that they

are UL listed. Never use a single extension cord to operate more

than one Fan.

9. Do not operate any Fan with a damaged cord or plug or after the

Fan malfunctions, has been dropped or damaged in any manner.

Return Fan to authorized service facility for examination,

electrical or mechanical adjustment or repair.

10.Do not insert or allow fingers or foreign objects to enter any

ventilation or exhaust opening as it may cause an electric shock

or fire, or damage the Fan. Do not block or tamper with the Fan

in any manner while it is in operation.

11.This Fan is not intended for use in wet or damp locations. Never

locate a Fan where it may fall into a bathtub or other water

container.

12.Do not use Fan outdoors.
13.This Fan is not suitable for use in agricultural facilities including

areas where livestock, poultry or other animals are confined.
Please refer to National Electric Code (NEC) Article 547-7
(2008), or applicable state or local codes or standards relating
to electrical requirements for Agricultural Buildings. THIS FAN
DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE
547-7 (2008).

14.This Fan is not suitable for use in hazardous locations. Please

refer to National Electric Code (NEC) Article 500 or applicable
state or local codes or standards relating to electrical
requirements for Hazardous locations. THIS FAN DOES NOT
MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).

WARNING:

REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK – DO NOT USE THIS FAN WITH ANY SOLID STATE
SPEED CONTROL DEVICES.

SAVE THESE

INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DE-

SCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY

WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

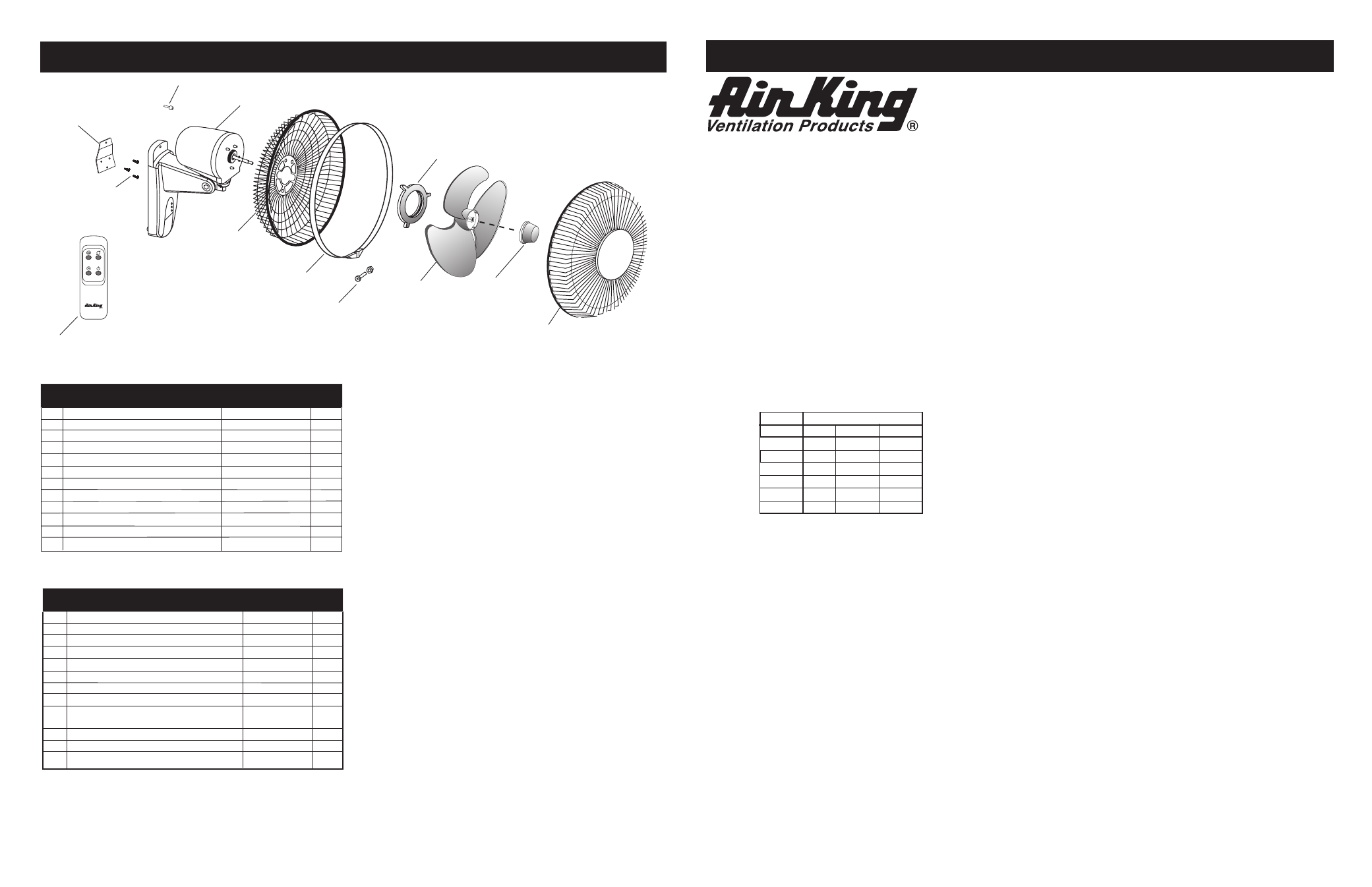

OPERATING INSTRUCTIONS & PARTS MANUAL

1

Front Grill w/Ornament

9046001 1

2

Spinner

9046002 1

3

Fan Blade

9046003 1

4

Guard Nut

9046004 1

5

Ring Screw

9046012 1

6

Grill Ring

9046011 1

7

Rear Grill

9046006 1

8

Motor Assembly

9046007 1

9

Wall Mount Plate Safety Screw

9046010 1

10 Wall Mounting Plate Screws

9046009 3

11 Wall Mounting Plate

9046008B 1

12 Remote Control

9046005 1

Key Description Part No. Qty.

5

4

3

2

1

8

9

6

7

12

10

11

MODEL/MODELO 2EKZ7/9046

1

Rejilla delantera con adorno

9046001 1

2

Eje de pivote

9046002 1

3

Aspa del ventilador

9046003 1

4

Tuerca

de protección

9046004 1

5

Tornillo de anillo

9046012 1

6

Anillo de rejilla

9046011 1

7

Rejilla trasera

9046006 1

8

Conjunto del motor

9046007 1

9

Tornillo de seguridad para

placa de montaje de pared

9046010 1

10

Tornillos para placa de montaje de pared

9046009 3

11

Placa de montaje de pared

9046008B 1

12

Control remoto

9046005 1

Llave Descripción No. De Parte Qty.

MAINTENANCE

WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SER-

VICING THE FAN.

WARNING: DO NOT IMMERSE FAN IN WATER!

CLEANING: Use a soft cloth moistened with a mild soap solution,

such as liquid dish washing detergent. Dry ALL PARTS COMPLETELY

before reassembling. After any maintenance or servicing, COM-

PLETELY REASSEMBLE unit as described in this instruction manual

before reconnecting to the power supply.

CAUTION: Do not use gasoline, benzine, thinner, harsh cleaners, etc. as

they will damage the Fan. NEVER use ALCOHOL OR SOLVENTS.

LUBRICATION: Precision bearings are sealed at the factory for life

and will not require any further lubrication.

STORAGE: Store the Fan, with these instructions, in a cool, dry

place.

MANTENIMIENTO

ADVERTENCIA: SIEMPRE DESENCHUFE EL CABLE ANTES DE MOVER

O DAR SERVICIO AL VENTILADOR.

ADVERTENCIA: ¡NO SUMERJA EL VENTILADOR EN AGUA!

LIMPIEZA: Utilice un paño suave humedecido con una solución jabonosa

liviana, tal como un detergente líquido para lavar platos. Seque TODAS

LAS PARTES POR COMPLETO antes de rearmar. Después de dar

mantenimiento o servicio, REARME POR COMPLETO la unidad en la forma

descrita en este manual de instrucciones, antes de volver a conectarla

a la fuente de poder.

PRECAUCIÓN: No utilice gasolina, bencina, acetona, limpiadores

abrasivos, etc. puesto que dañarán el Ventilador. NUNCA use ALCOHOL

O SOLVENTES.

LUBRICACIÓN: Los cojinetes de precisión vienen sellados de por vida en

la fábrica y no precisarán ninguna lubricación adicional.

ALMACENAMIENTO: Guarde el Ventilador con estas instrucciones en un

lugar fresco y seco.
