6.5 Getting to Know the TP-11N, Video/Audio Twisted-Pair Line Transmitter
The KRAMER
TP-11N Video Line Transmitter sends a color video signal and a stereo audio signal over long
distances using a telephone wire or any other twisted-pair wire. The
TP-11N maintains the bandwidth of an
industrial color video signal up to several hundred meters and broadcast quality (over 6 MHz) signals up to 100
meters. All three signals, video and the two audio channels, are transmitted simultaneously on the same wire in
real-time. By using the KRAMER
TP-11N together with the TP-12N (Video/Audio Line Receiver) coax wiring
in a studio can be completely eliminated.
NOTE
For Installation, operation, maintenance and troubleshooting instructions please refer to sections 8-13.

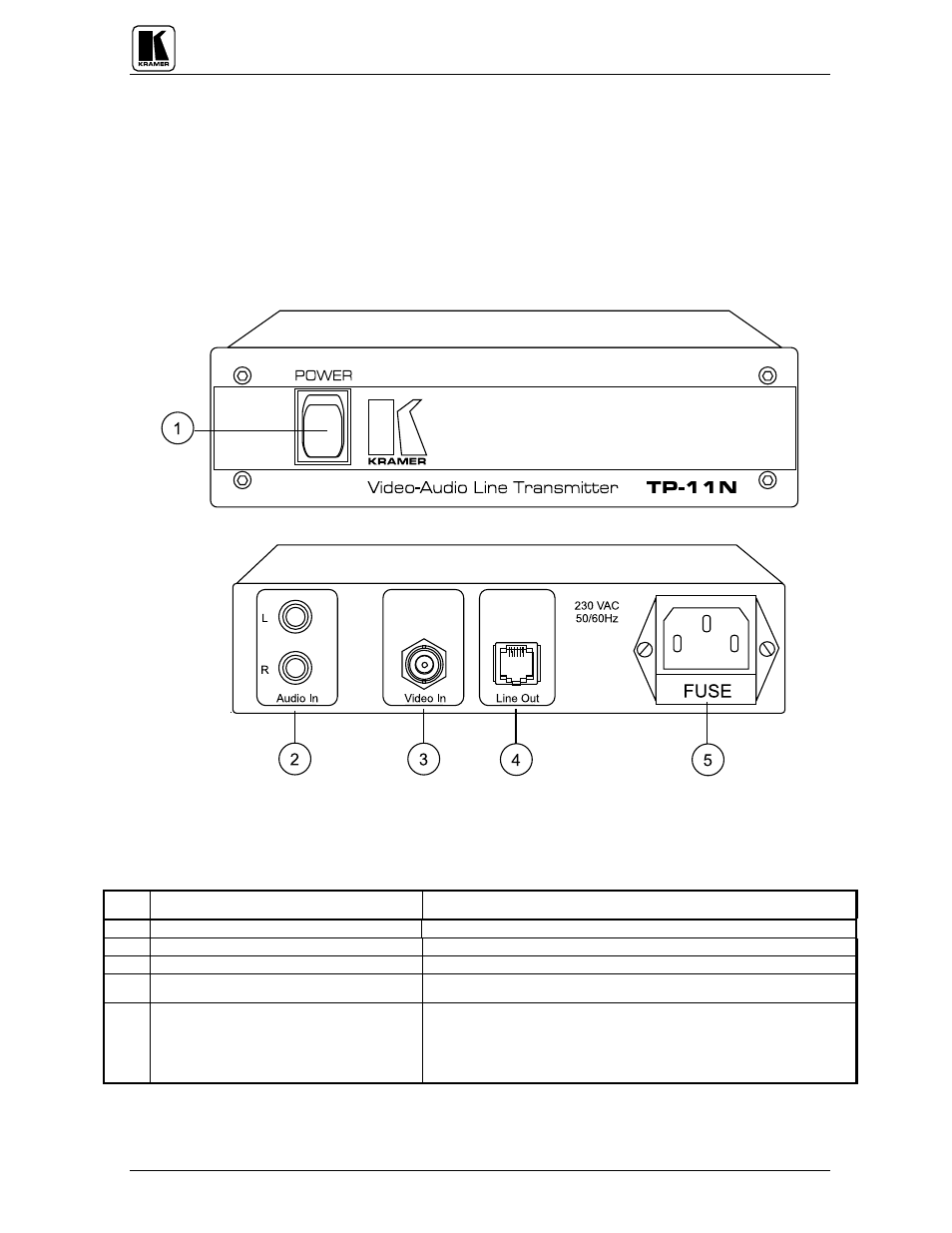

Figure : TP-11N Front/Rear Panel Features
Table 4: TP-11N Front/Rear Panel Features
No.
Feature
Function
1. Illuminated power switch
Supplies power to the unit.
2. RCA
Audio in connectors
Audio
input.
3. BNC
Video in connector
Video input.
4.
LINE OUT telephone socket
Amplified and buffered balanced output.
5. Power Connector
A 3-prong AC connector allows power to be supplied to the unit.
Directly underneath this connector, a fuse holder houses the
appropriate fuse.
