KRAMER ELECTRONICS LTD.
7
6.4 Getting to Know the TP-6, Twisted-Pair Line Amplifier
The KRAMER TP-6, Twisted-Pair Line Amplifier, extends the range of the KRAMER TP (twisted-pair
transmitter-receivers) series, to almost any desired distance. The TP-6 may receive its power source through the
twisted-pair wire (in a 4-wire setup) and, due to its very small power consumption, several units may be
cascaded and fed from one standard 12V DC feed. Basically, any number of TP-6 units may be used in cascade
operation. Via rear-accessible trimmer controls, video and HF gain may be easily tuned to achieve best
performance.
NOTE
For Installation, operation, maintenance and troubleshooting instructions please refer to sections 8-13.

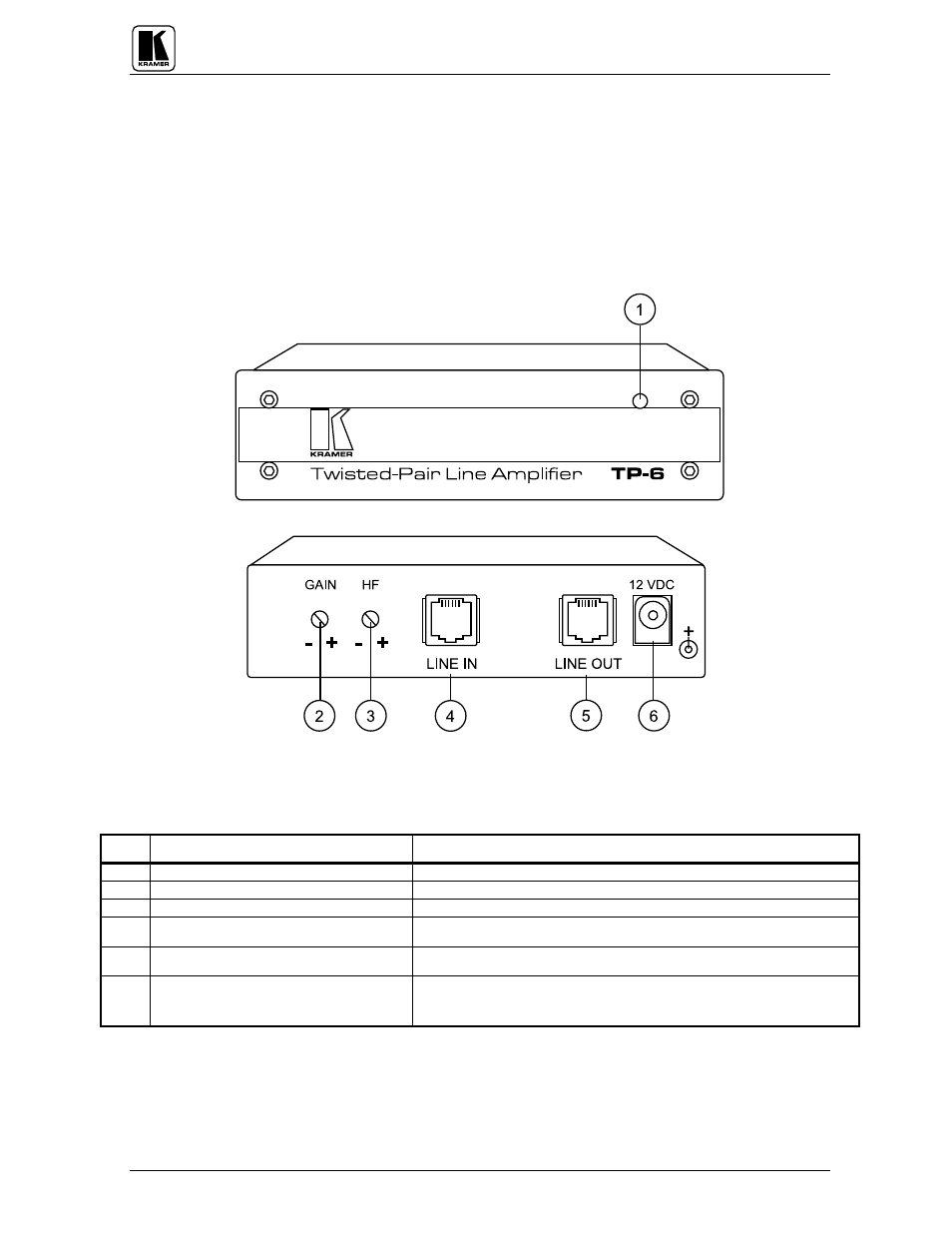

Figure : TP-6 Front/Rear Panel Features
Table 3: TP-6 Front/Rear Panel Features
No. Feature Function
1. LED (on front panel) When turned on, indicates that the machine is powered
2. GAIN trimmer Controls level of output.
3. HF trimmer Controls cable equalization of the output.
4. LINE IN telephone socket Balanced input.
5. LINE OUT telephone socket Amplified and buffered balanced output.
6. 12VDC feed connector A DC connector that allows power to be supplied to the unit.
