FORMAT INTERFACES
This section describes all the controls and connections of your machine. Understanding the
controls and connections helps you realize the full power of your machine.
5.1 Getting to Know Your FC-10
The KRAMER FC-10 Composite-YC Transcoder is designed to interface between the two
popular video formats: Composite Video and YC (Super-Video). Hardly any VCR or camcorder
transcodes from Composite Video to Super-Video, although it is necessary when material shot in
Composite is to be edited into a Y/C production. The Kramer FC-10 is very small, and is fed
from an external 12V DC supply, excellent for fieldwork. Front/Rear panel features of the FC-10
are described in Figure 1 and Table 2.
NOTE
For operation instructions refer to section 9.

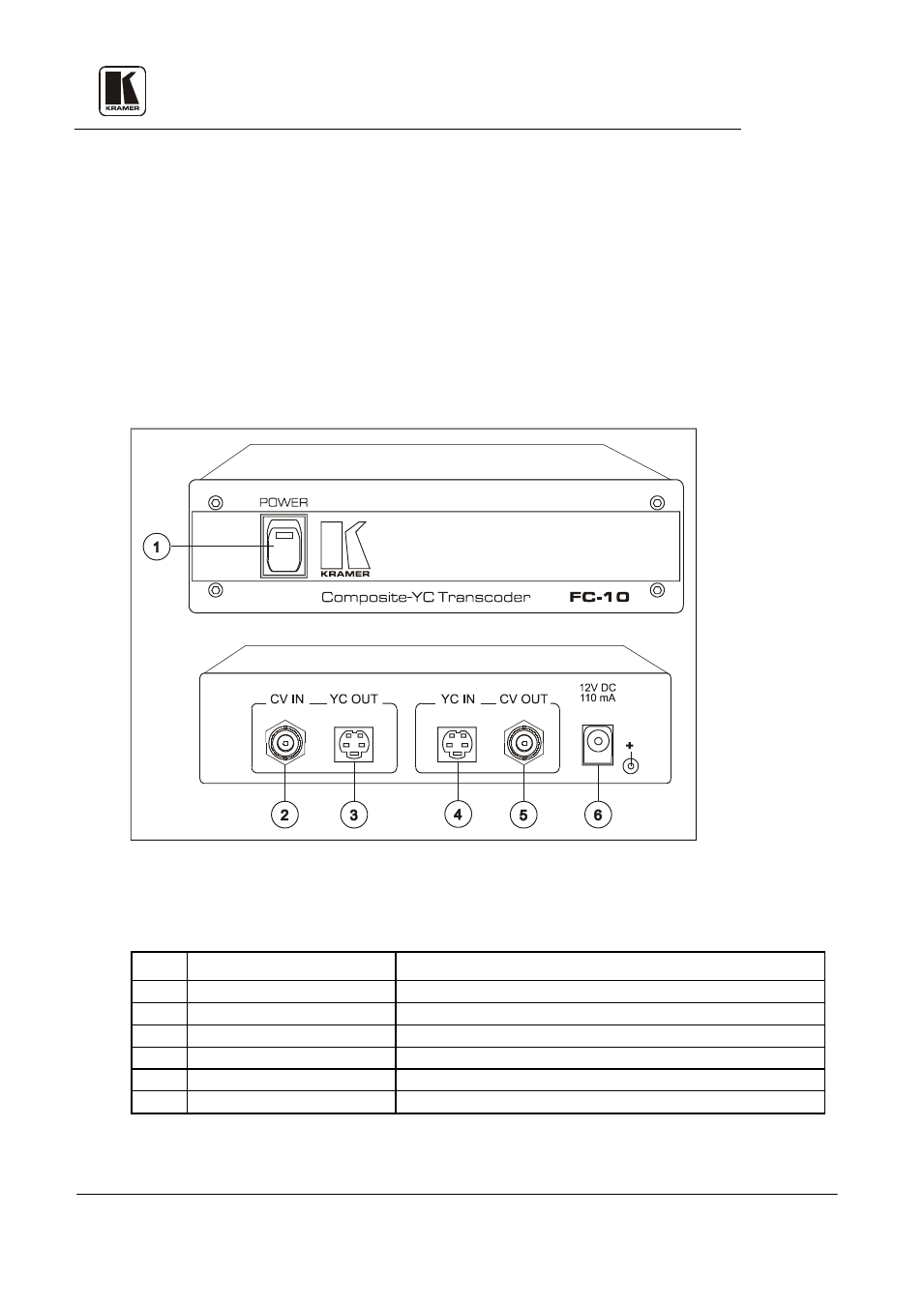

Figure 1: FC-10 Front/Rear Panel Features
Table 2: FC-10 Front/Rear Panel Features
No. Feature Function
1. Power Switch Illuminated switch supplies power to the unit.
2. CV IN BNC connector Composite video input.
3. YC OUT 4P connector s-Video output.
4. YC IN 4P connector s-Video input.
5. CV OUT BNC connector Composite video output.
6. 12VDC feed connector A DC connector that allows power to be supplied to the unit.
