5.7 Getting to Know Your FC-4208
The KRAMER FC-4208 Balanced/Unbalanced Audio Transcoder is a bi-directional, versatile
tool, converting between the two most commonly used audio standards. The machine allows gain
or attenuation while transcoding, to compensate for the 14dB change between IHF audio levels
and the newly adopted, balanced DAT input levels. Very low noise and distortion components
are used throughout the machine. The FC-4208 has 4 balanced audio inputs on XLRs and 4
unbalanced audio outputs on the balanced to unbalanced channels, and 4 unbalanced inputs and 4
balanced audio outputs on XLRs on the unbalanced to balanced channels. Each set (8 all
together) has an individual level control for perfect matching.
Front/Rear panel features of the FC-4208 are described in Figure 7 and Table 8.
NOTE
For operation instructions refer to section 9.

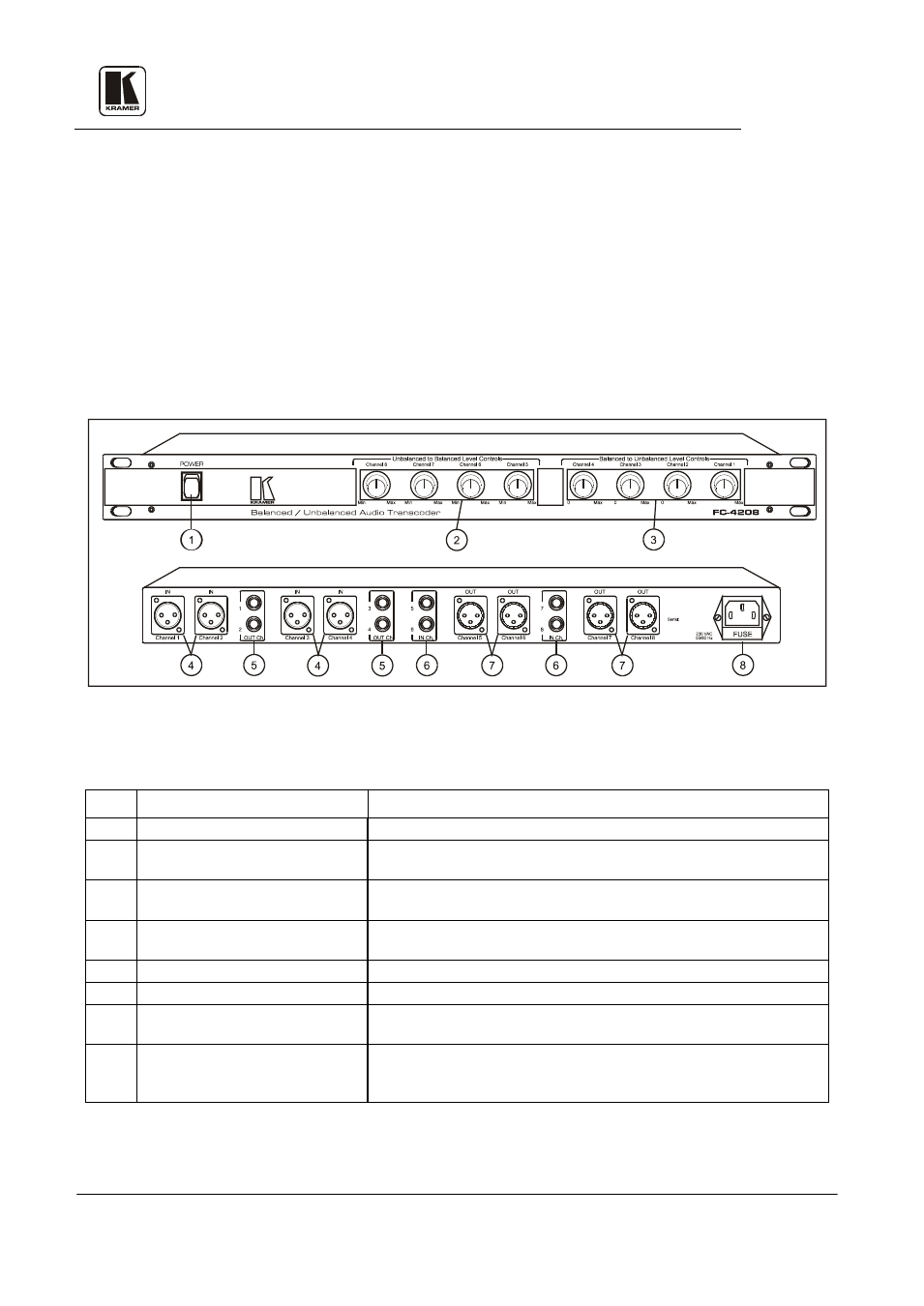

Figure 7: FC-4208 Front/Rear Panel Features
Table 8: FC-4208 - Front/Rear Panel Features
No. Feature Function
1. Power switch Illuminated switch supplies power to the unit.
2. Unbalanced to Balanced Level
Controls Control the balanced audio level outputs.
3. Balanced to Unbalanced Level
Controls Control the unbalanced audio level outputs.
4. IN Channel 1-4 XLR female
connectors Balanced audio inputs.
5. OUT Ch RCA connectors Unbalanced audio outputs.
6. IN Ch RCA connectors Unbalanced audio inputs.
7. OUT Channel 5-8 XLR male
connectors Balanced audio outputs.
8. Power Connector A 3-prong AC connector allows power to be supplied to the unit.
Directly underneath this connector, a fuse holder houses the appropriate
fuse.
