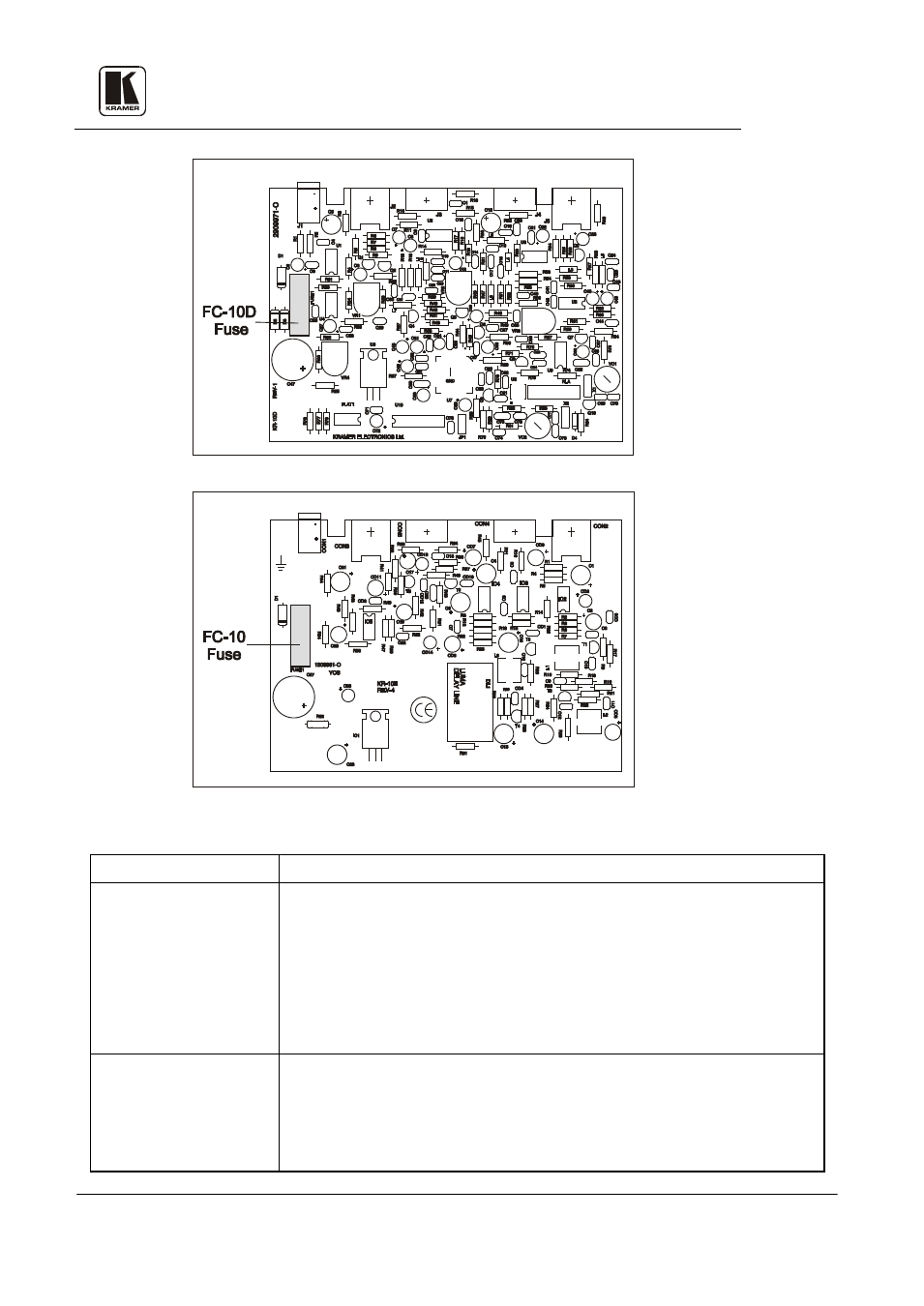

Figure 13: FC-10 Fuse Location
12.2 Video Signal
Problem Remedy
No video at the output
device 1. Confirm that your source and output devices are powered on and
connected properly. The input of your machine should be of an
identical signal format at the output of your source. Signals at the
output of your machine should be of an identical signal format as at
the input of your display.
2. Confirm that any other device in the signal path has the proper input
and/or output selected.
3. Use a Video Tester to help trace faulty cables and equipment (see
section 4.1 "Optional Accessories")
Video level is too high or
too dim.
1. Verify that the lines are well matched through 75
Ω impedances;
otherwise it results in a video level that is too high or too dim.
2. Confirm that the connecting cables are of high quality and properly
inserted.
3. Check level controls located on your source input device or output
display.
