Kramer Electronics Ltd.
7
5.2 Getting to Know Your FC-19
The KRAMER FC-19 is an industrial level RGB Decoder, which converts both Composite
Video and Super-Video to their RGB components. Front/Rear panel features of the FC-19 are
described in Figure 2 and Table 3.
NOTE
For operation instructions refer to section 9.

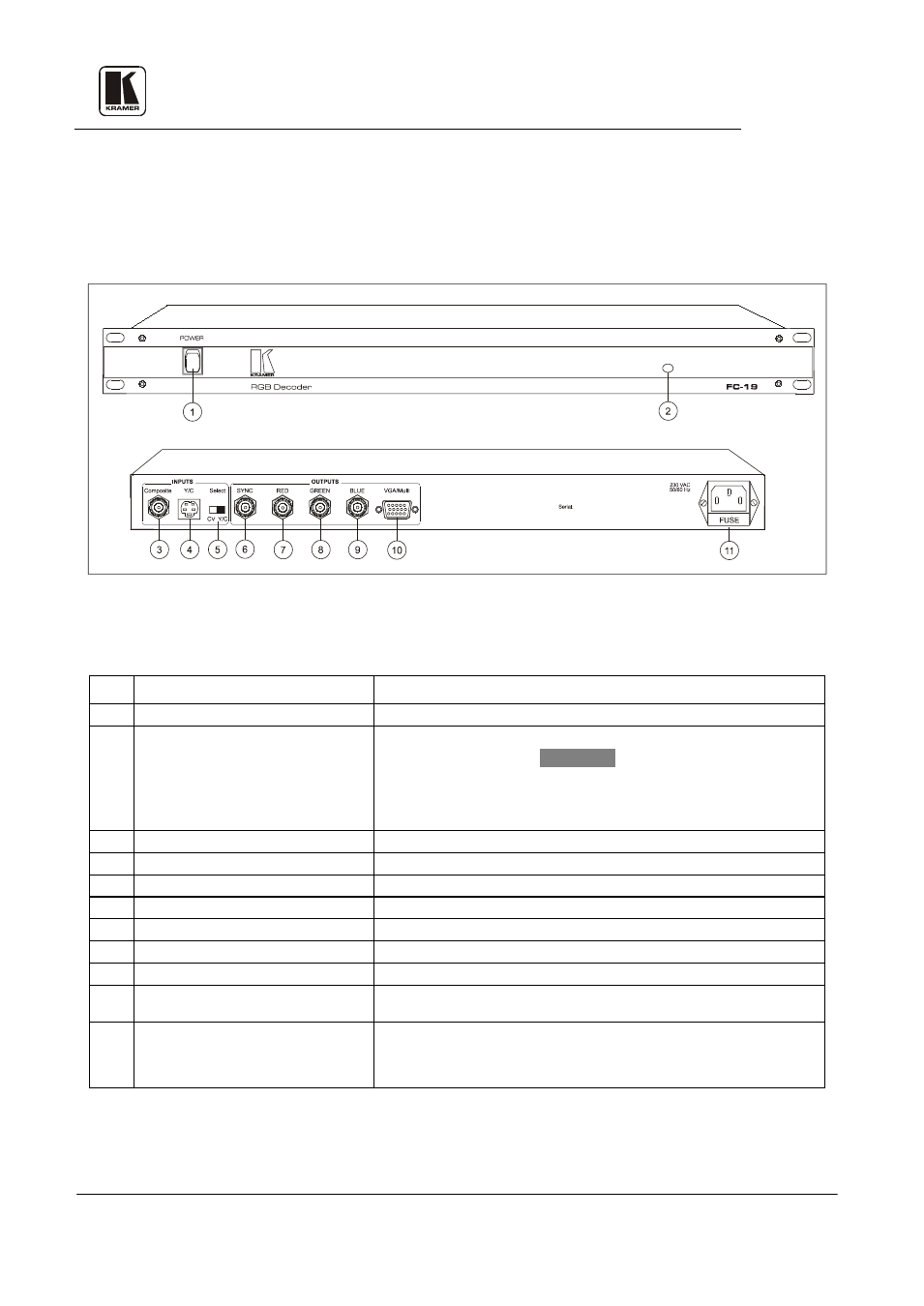

Figure 2: FC-19 Front/Rear Panel Features
Table 3: FC-19 Front/Rear Panel Features
No. Feature Function
1. Power Switch Illuminated switch supplies power to the unit.
2. Internal trimmer (bottom accessible) Not used.
WARNING !
Adjustments or attempted adjustments of the
trimmer are not allowed. Failure to comply with
this warning may damage the machine.
3. Composite BNC connector Composite video input.
4. YC 4P connector s-Video input.
5. Select CV/YC switch Selects either Composite or s-Video to be converted.
6. SYNC BNC connector Sync signal output.
7. RED BNC connector RED signal output.
8. GREEN BNC connector GREEN signal output.
9. BLUE BNC connector BLUE signal output.
10. VGA/Multi HD15 connector VGA type signal output (horizontal sync frequency = 15kHz, no scan
conversion.)
11. Power Connector
A 3-prong AC connector allows power to be supplied to the unit.
Directly underneath this connector, a fuse holder houses the
appropriate fuse.
