Kramer Electronics Ltd.
9
5.4 Getting to Know Your FC-4042
The KRAMER FC-4042 RGB-Component Transcoder interfaces between the two most widely
used professional video formats: Component Video (Y, R-Y, B-Y) and RGBS. In many video
studios and production centers there is a need to convert from one format to the other, and the
Kramer FC-4042 is the perfect choice as it operates simultaneously in both directions.
Front/Rear panel features of the FC-4042 are described in Figure 4 and Table 5.
NOTE
For operation instructions refer to section 9.

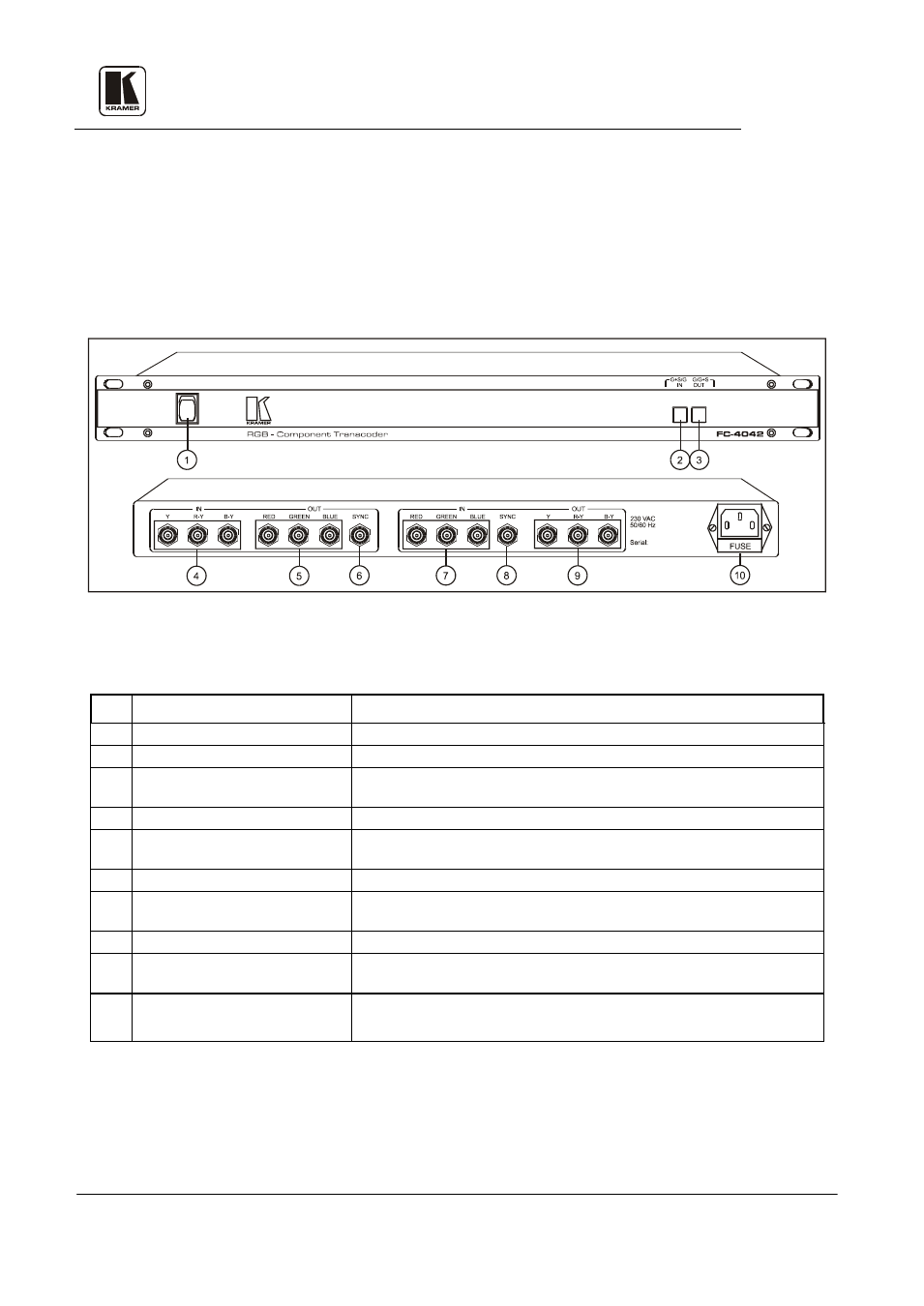

Figure 4: FC-4042 Front/Rear Panel Features
Table 5: FC-4042 - Front/Rear Panel Features
No. Feature Function
1. Power Switch Illuminated switch supplies power to the unit.
2. G+S/G IN pushbutton Selects sync or sync on green on the RGB signals for the "IN" channel.
3. G/G+S OUT pushbutton Selects sync or sync on green on the RGB signals for the " OUT "
channel.
4. IN Y, R-Y, B-Y BNC connectors Component video inputs.
5. OUT RED, GREEN, BLUE
BNC connectors RGB outputs.
6. OUT SYNC BNC connector Sync signal output.
7. IN RED, GREEN, BLUE BNC
connectors RGB inputs.
8. IN SYNC BNC connector Sync signal input.
9. OUT Y, R-Y, B-Y BNC
connectors Component video outputs.
10. Power Connector
A 3-prong AC connector allows power to be supplied to the unit. Directly
underneath this connector, a fuse holder houses the appropriate fuse.
