5.6 Getting to Know Your FC-4044
The KRAMER FC-4044 Multistandard Decoder interfaces from Composite video and Y/C to the
most widely used professional video formats - Component Video (Y, R-Y, B-Y) and RGBS. In
many video studios and production centers there is a need to convert from one format to the other
and the KRAMER FC-4044 is the perfect choice as it operates in the most common standards -
PAL, SECAM and NTSC (both). Decoding is microprocessor controlled via the internal I
2 C bus.
Front/Rear panel features of the FC-4044 are described in Figure 6 and Table 7.
NOTE
For operation instructions refer to section 9.

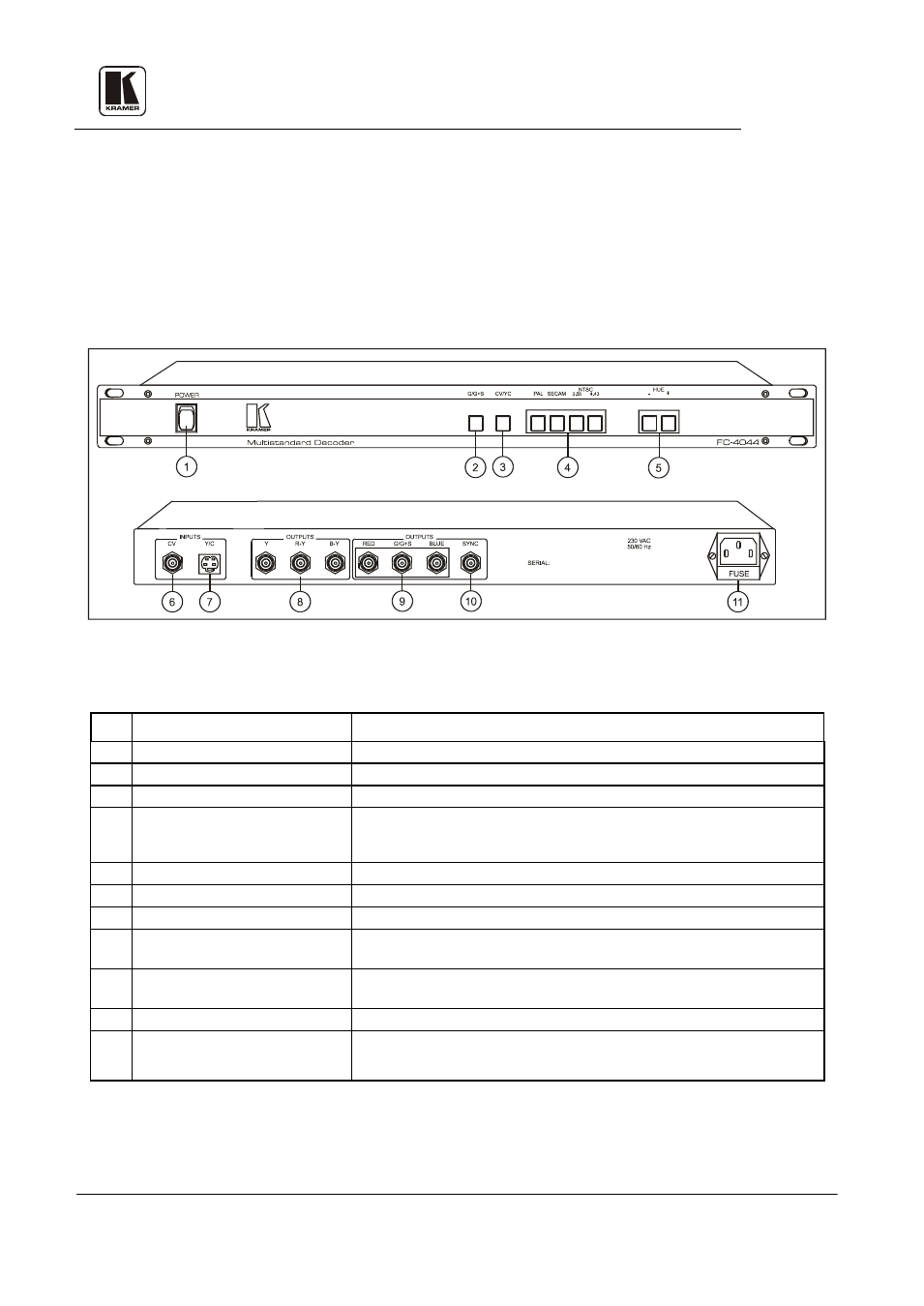

Figure 6: FC-4044 Front/Rear Panel Features
Table 7: FC-4044- Front/Rear Panel Features
No. Feature Function
1. Power Switch Illuminated switch supplies power to the unit.
2. G/G+S pushbutton Selects sync or sync on green on the G/G+S BNC connector.
3. CV/YC pushbutton Selects either composite video or YC input signal for conversion.
4. PAL, SECAM, 3.58, 4.43
pushbuttons Illuminated pushbuttons detect the existence of the following standards -
PAL, SECAM, NTSC 3.58 or 4.43. Pressing the buttons can force the
decoder to accept the wrong standard and is therefore not recommended.
5. HUE (+/-) pushbuttons Active when NTSC is used.
6. INPUTS CV BNC connector Composite video input.
7. INPUTS YC 4P connector YC input.
8. OUTPUTS Y, R-Y, B-Y BNC
connector Component video outputs.
9. OUTPUTS RED, G/G+S,
BLUE connectors RGB outputs (G or G+S are selected via the G/G+S pushbutton).
10. OUTPUTS SYNC connector Composite sync output.
11. Power Connector A 3-prong AC connector allows power to be supplied to the unit. Directly
underneath this connector, a fuse holder houses the appropriate fuse.
