Page 24
20
Connecting the FC-21ETH, FC-22ETH and FC-24ETH
6. Select Use the following IP Address for static IP addressing and fill in the
details as shown in
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to
192.168.1.255 (excluding 192.168.1.39) that is provided by your IT
department.

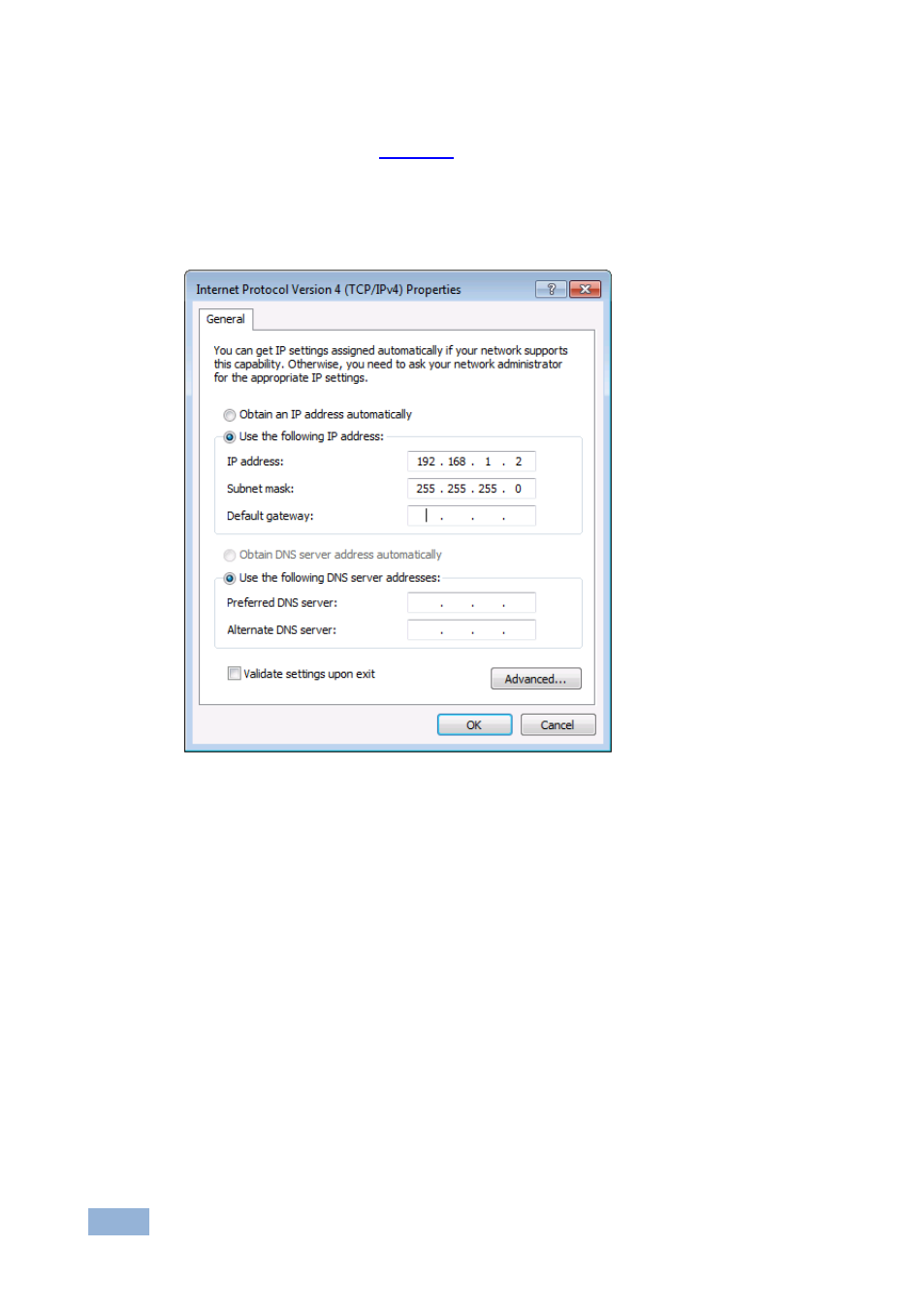

Figure 13: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
6.1.2
Connecting the Ethernet Port via a Network Hub or Switch
You can connect the Ethernet port of the FC-24ETH to the Ethernet port on a
network hub or using a straight-through cable with RJ-45 connectors.
