VS-66HN - Overview 5
VS
-6
6
HN
–
Ov
e
rv
ie
w
5

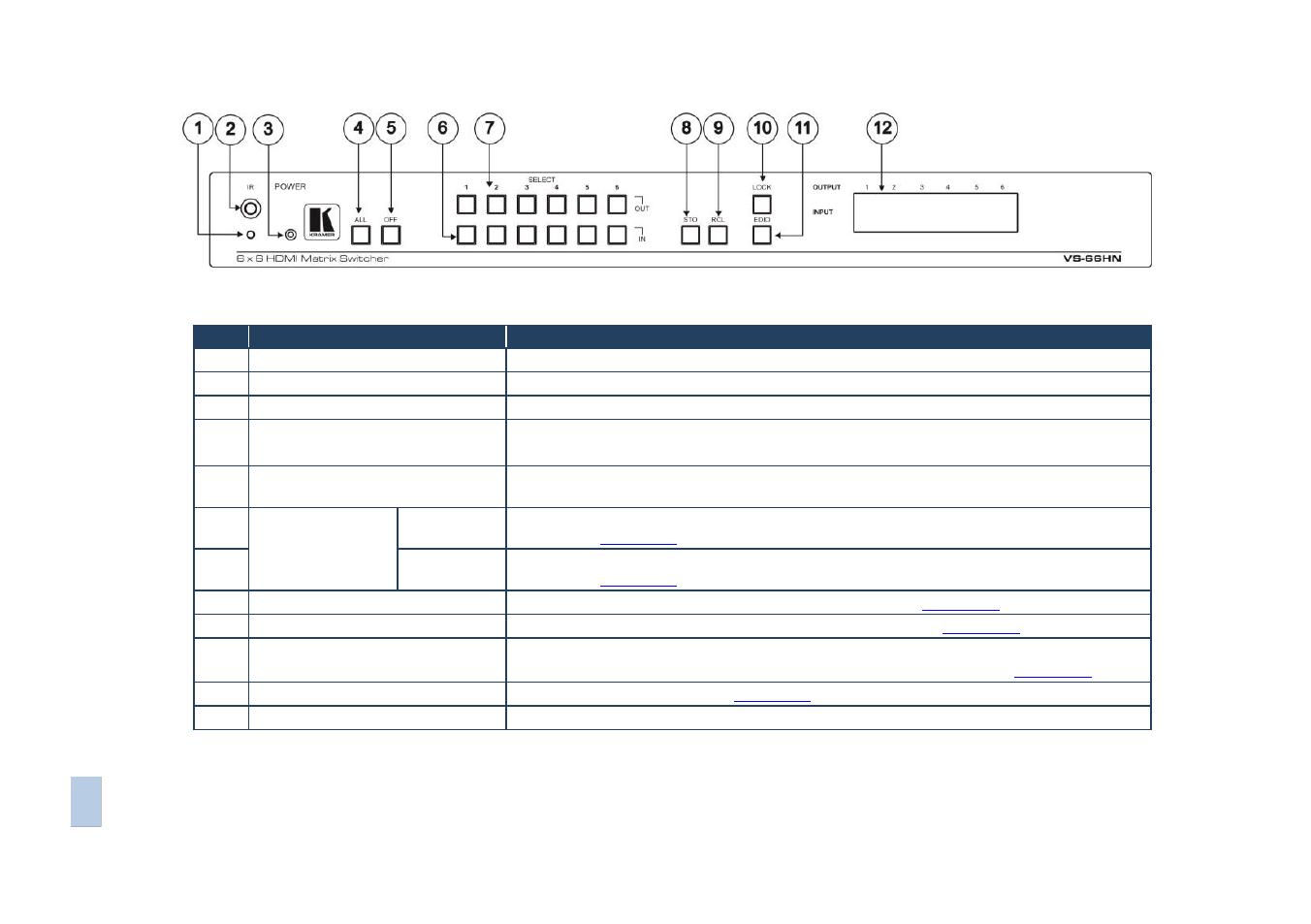

Figure 1: VS-66HN 6x6 HDMI Matrix Switcher Front Panel
# Feature Function
1 IR Indication LED Lights yellow when receiving signals from the infrared remote control transmitter
2 IR Receiver Signal receiver for the infrared remote control transmitter
3 POWER LED Lights when the device is turned on
4 ALL Button Press followed by an input button to connect the selected input to all outputs
For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs
5 OFF Button Press after pressing an output button to disconnect the selected output from the inputs. To
disconnect all the outputs, press ALL followed by OFF
6
SELECT Buttons
IN (1 to 6) Press to select the input to switch after selecting an output (also used for storing machine
setups (see
Section 6.3 )
7 OUT (1 to 6) Press to select an output to switch followed by an input (also used for storing machine
setups (see
Section 6.3 )
8 STO Button Press to store the current switching setting to a preset (see Section 6.3 )
9 RCL Button Press to recall the current switching setting from a preset (see Section 6.3 )
10 LOCK Button Press and hold to toggle the locking/release of the front panel buttons.
When storing or recalling presets, press to store or recall the preset (see
Section 6.3 )
11 EDID Button Press to capture the EDID (see Section 6.2 )
12 INPUT 7-segment LED Display Displays the input currently switched to the output which is marked above each input
