VS-66HN - Operating the VS-66HN 6x6 HDMI Matrix Switcher 19

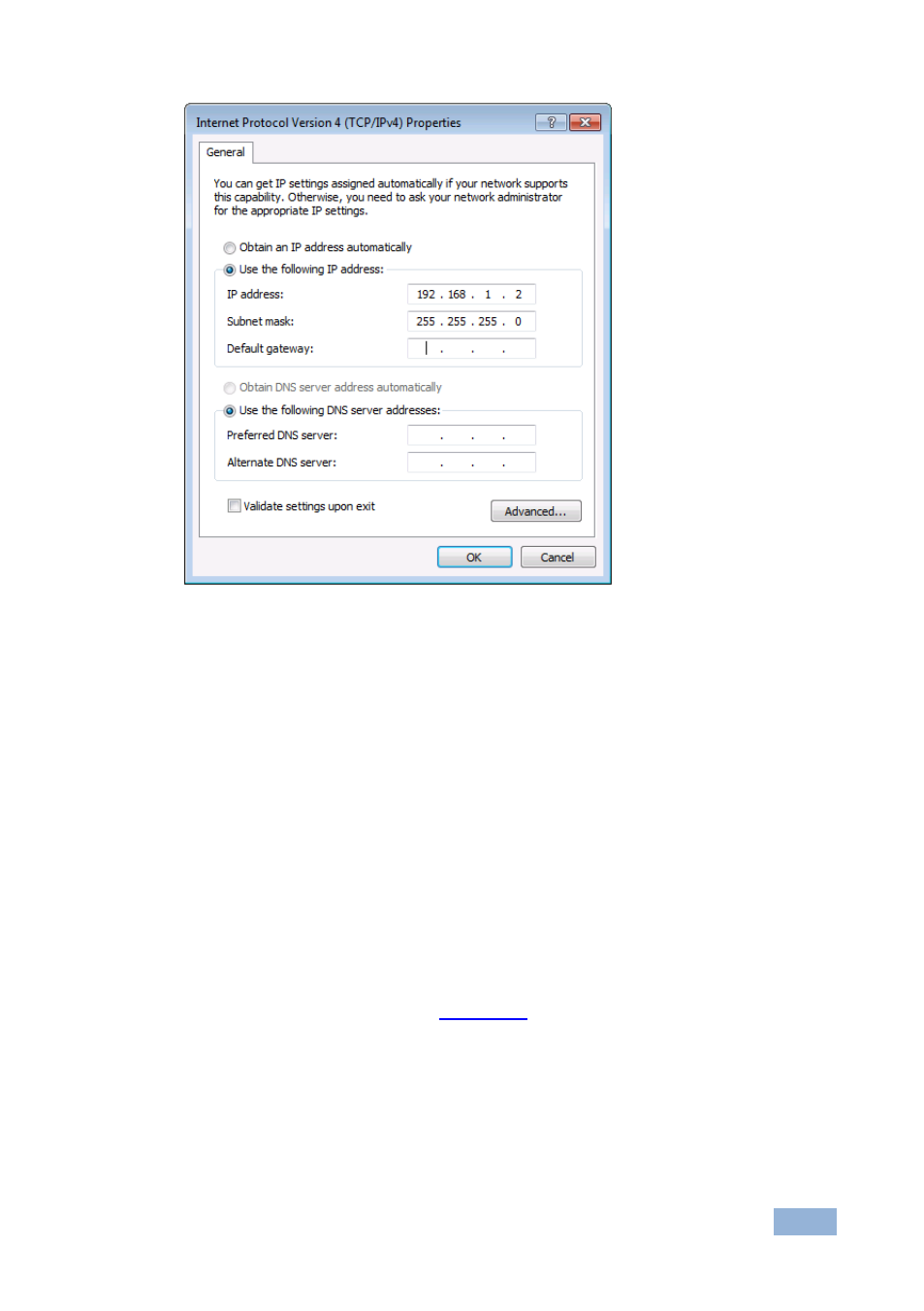

Figure 8: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
6.7.2 Connecting the Ethernet Port via a Network Hub or Switch
You can connect the Ethernet port of the VS-66HN to the Ethernet port on a
network hub or using a straight-through cable with RJ-45 connectors.
6.7.3 Control Configuration via the Ethernet Port
To control several units via Ethernet, connect the Master unit (Device 1) via the
Ethernet port to the Ethernet port of your PC. Use your PC provide initial
configuration of the settings (see Section 6.4 ).
6.8 Upgrading the Firmware
For instructions on upgrading the firmware see “Upgrading the VS-66HN Firmware
Using the STC Software
”.
