VS-44FO - Connecting the VS-44FO 19

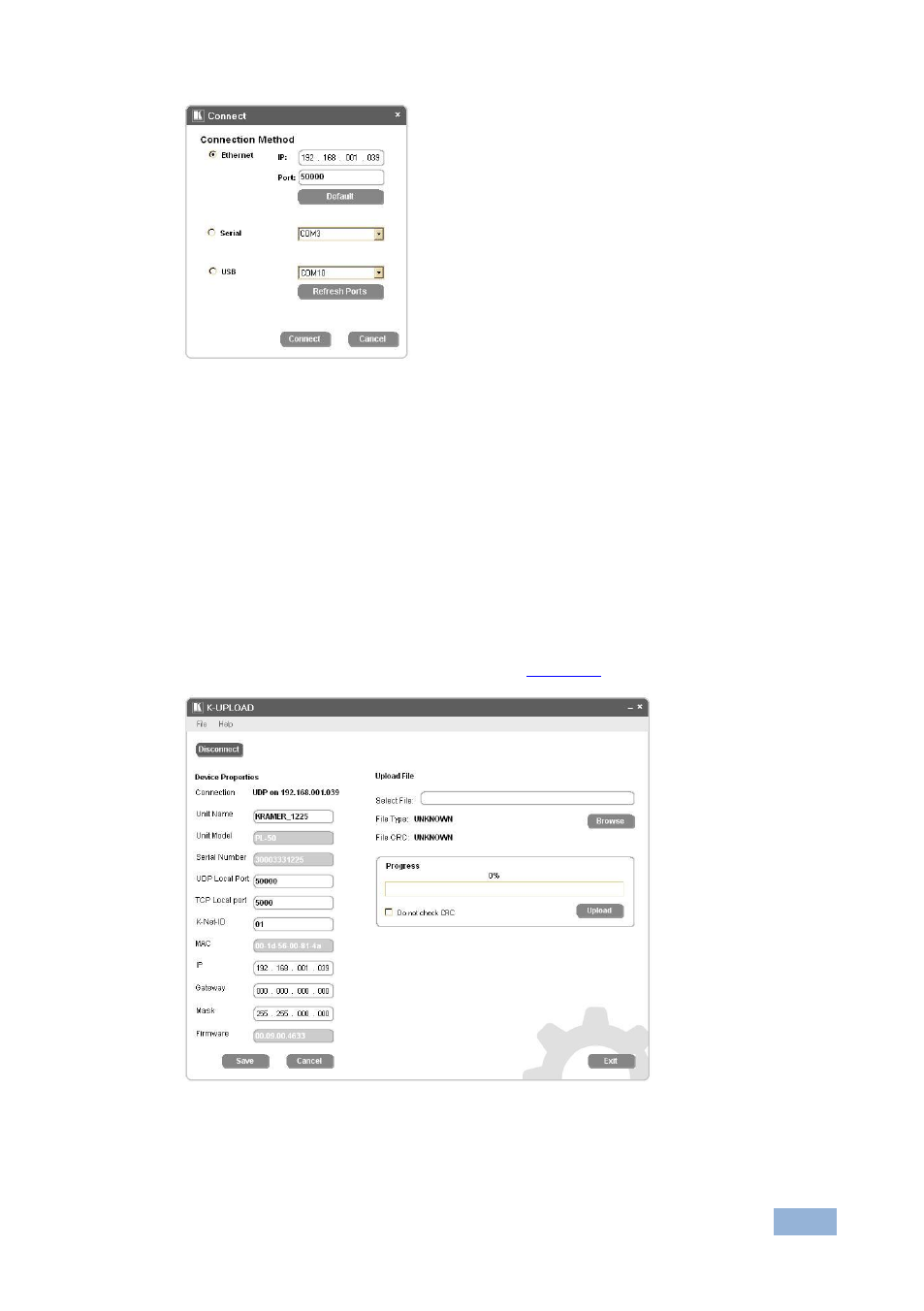

Figure 9: Connect Screen
3. Connect a USB cable from a USB port on the PC to the USB port on the
VS-44FO. (You can also connect to the PC using the Ethernet or a serial
connector).
4. Check USB as the connection method and select the COM port from the
USB drop down list.
5. Click Connect.
The K-UPLOAD screen appears as in Figure 10 .
Figure 10: Device Properties Screen
6. If required, make changes and click Save. If not, click Exit.
