VS-44FO - Connecting the VS-44FO

11

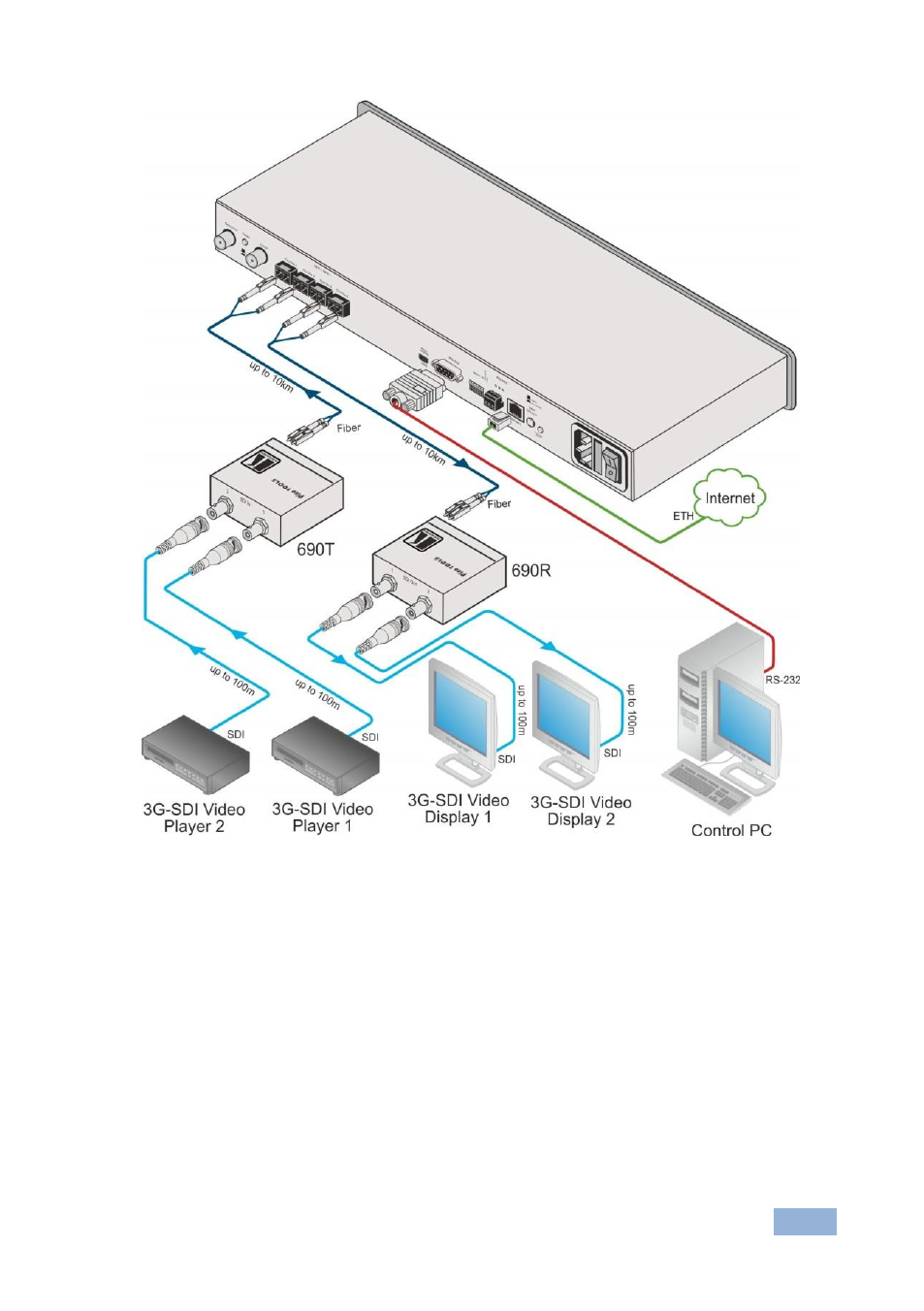

Figure 3: Connecting the VS-44FO

5.1

Installing the SFP Modules

To install an SFP module:

1. Make sure the bail (removal handle) is closed in an upward position.

2. Insert the SFP module in an open slot and push it inward until it clicks.

3. Remove the protective SFP cap from the end of the SFP.
