6 VM-24H - Overview

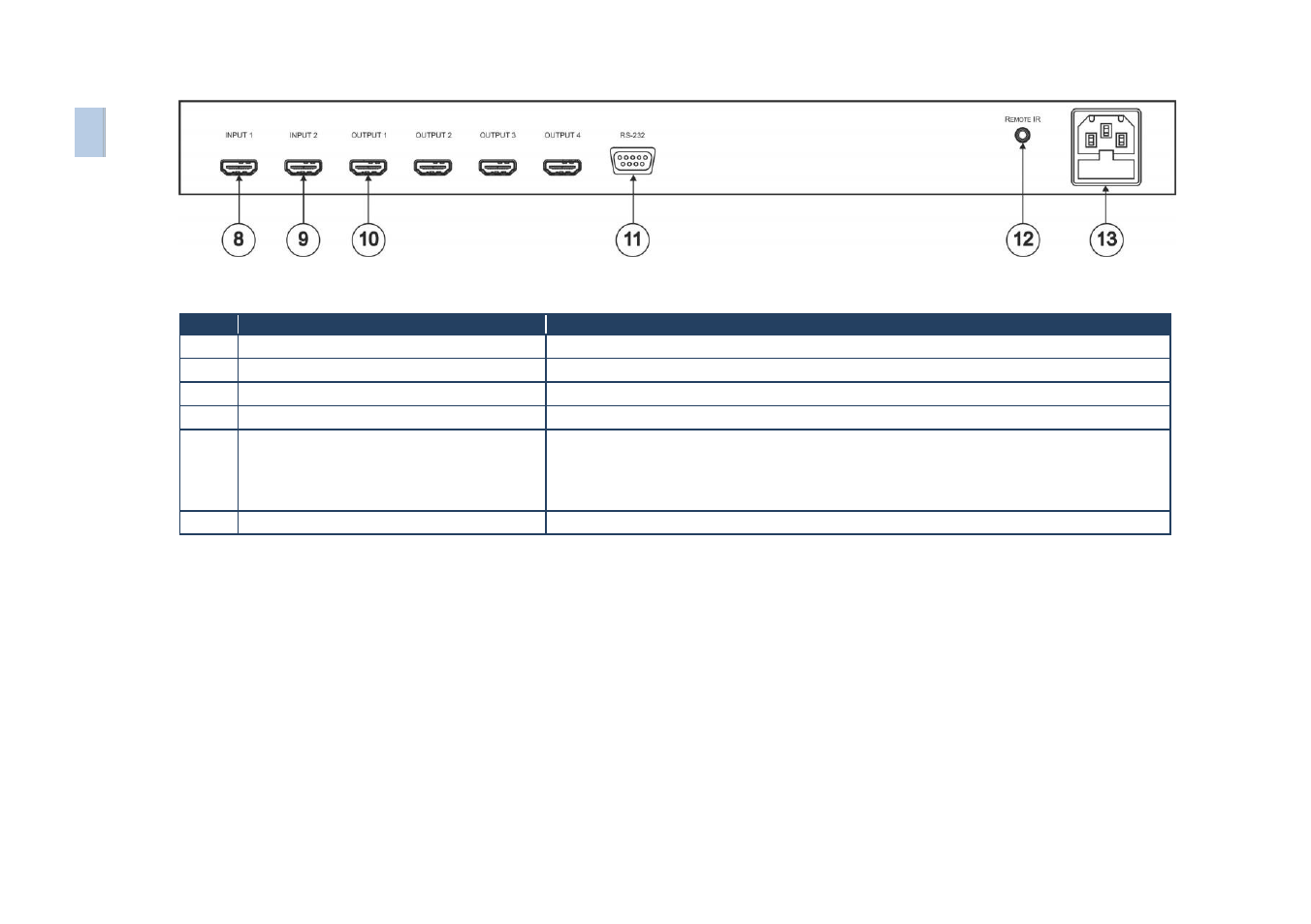

Figure 2: VM-24H 2 Input 1:4 HDMI Distributor Rear Panel
# Feature Function
8 INPUT 1 HDMI Connector Connects to the HDMI source 1
9 INPUT 2 HDMI Connector Connects to the HDMI source 2
10 OUTPUT HDMI Connectors Connects to the HDMI acceptor (from 1 to 4)
11 RS-232 9-pin D-sub Port Connects to the PC or the Remote Controller (via a null modem connection)
12 REMOTE IR Opening Connects to an external IR receiver unit for controlling the machine via an IR remote
controller instead of using the front panel IR receiver
Optional. Can be used instead of the front panel (built-in) IR receiver to remotely control the
machine (only if the internal IR connection cable has been installed)
13 Power Connector with Fuse AC connector enabling power supply to the unit
