VM-24H - Overview 5
VM
-2
4
H
–
O
v
e
rv
ie
w
5

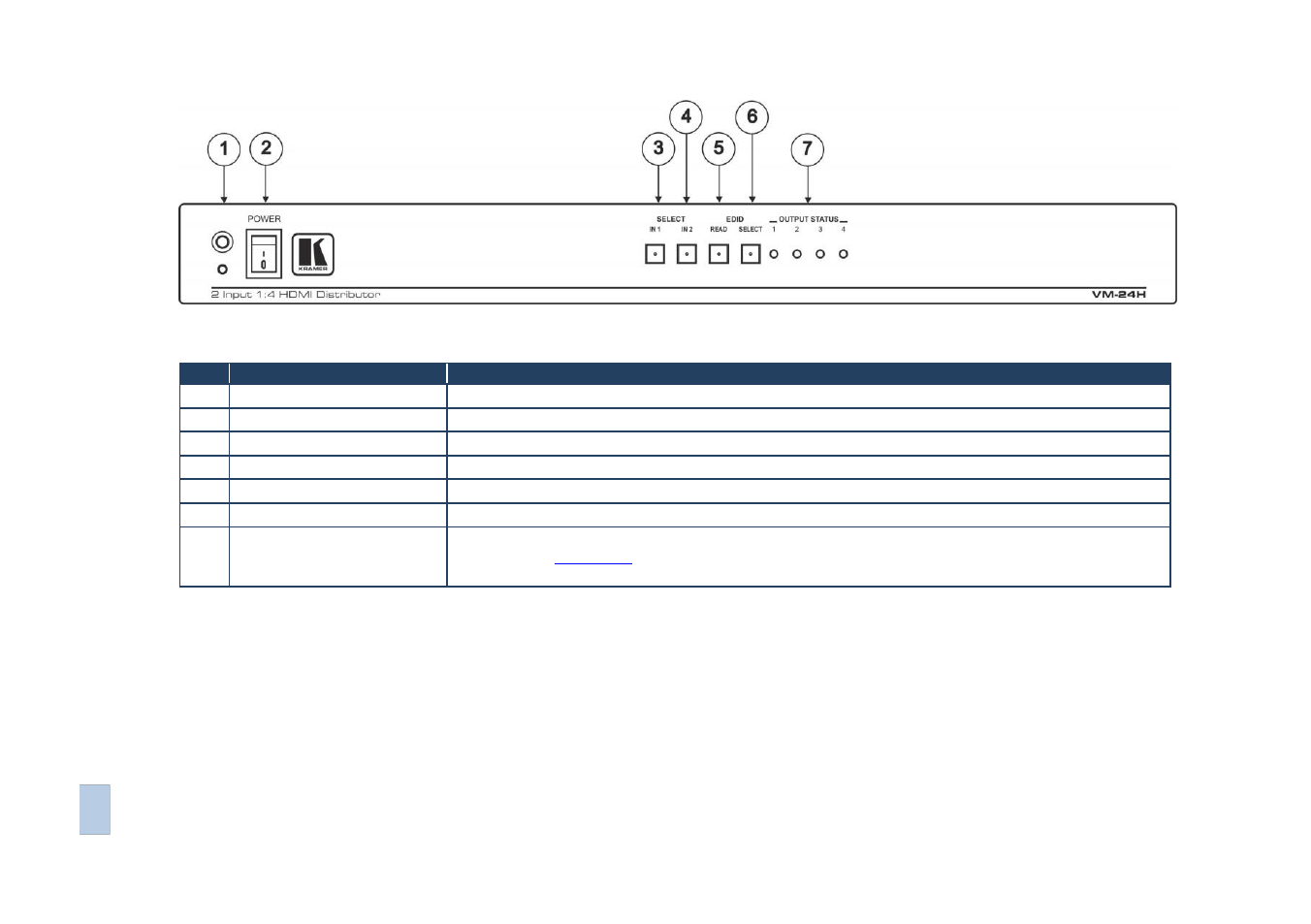

Figure 1: VM-24H 2 Input 1:4 HDMI Distributor Front Panel
# Feature Function
1 IR Receiver The red LED is illuminated when receiving signals from the Kramer infrared remote control transmitter
2 POWER Switch Illuminated switch for turning the unit ON or OFF
3 SELECT IN 1 Button Press to select source 1 and distribute this signal to the outputs
4 SELECT IN 2 Button Press to select source 2 and distribute this signal to the outputs
5 EDID READ Button Press, after pressing the EDID SELECT button, to acquire the EDID Press to show the EDID status
6 EDID SELECT Button Select the EDID mode (One Output, Auto-mix or Default)
7 OUTPUT STATUS 1-4
LEDs LEDs light when an output(s) is connected and active; LEDs flash to indicate the type of EDID
acquired (see
Section ‎6.3 ) or when connecting a non-HDCP display while providing HDCP content to
the VM-24H
