14 VM-114H2C - Operating the VM-114H2C
5.3.5 IR Local Control and Pass-Through Example 3
The configuration is shown in Figure 6 .

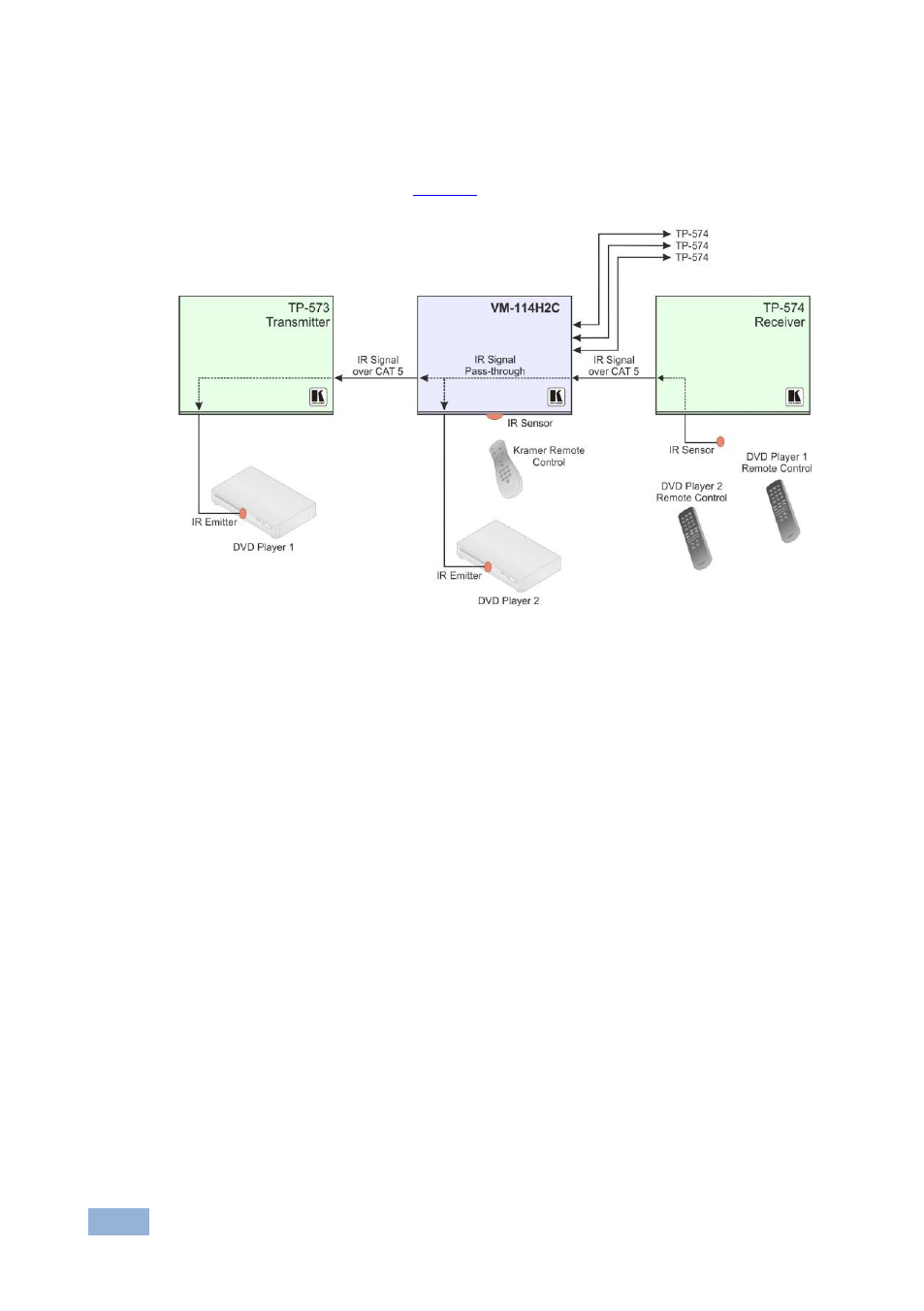

Figure 6: VM-114H2C IR Control and Pass-Through Example 3

The first DVD player (player 1) is connected to the TP-573 transmitter via an
IR emitter.

The second DVD player (player 2) is connected to the VM-114H2C via an IR
emitter.

An IR sensor is connected to the TP-574 receiver.

Both the TP-573 and the TP-574 are connected to the VM-114H2C via TP
cabling.
To control DVD player 1, point the DVD player 1 IR remote control at the TP-574
IR sensor. To control DVD player 2, point the DVD player 2 IR remote control at
the TP-574 IR sensor. Point the Kramer remote control at the VM-114H2C IR
sensor to control the VM-114H2C.
