8

VM-114H2C - Connecting the VM-114H2C

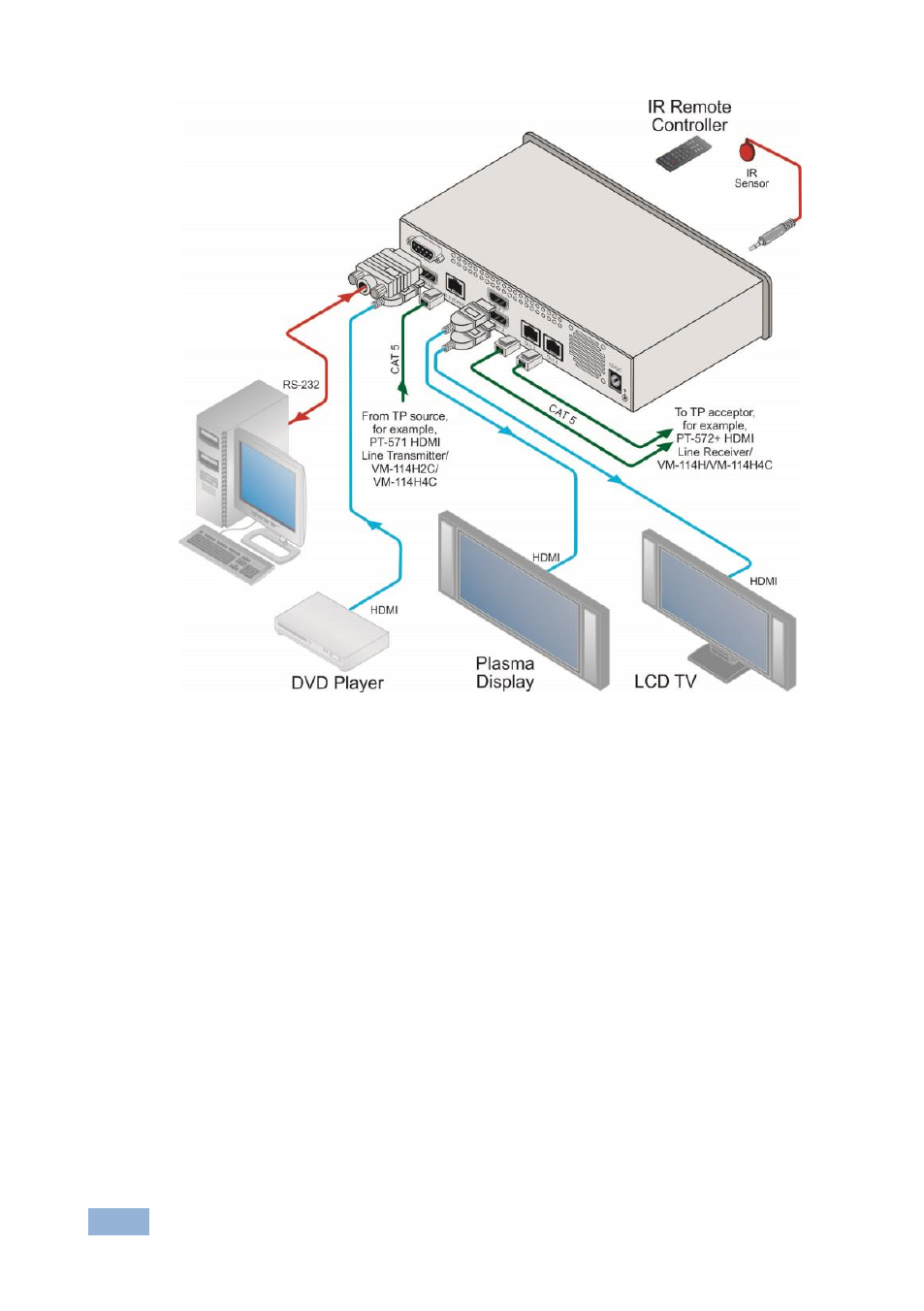

Figure 2: Connecting the VM-114H2C 2 Input 1:4 HDMI DA/2x CAT5 Outputs

4.1

Connecting to the VM-114H2C via RS-232

You can connect to the VM-114H2C via an RS-232 connection using, for example,

a PC. Note that a null-modem adapter/connection is not required.

To connect to the VM-114H2C via RS-232:

Connect the RS-232 9-pin D-sub rear panel port on the VM-114H2C unit via

a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin 5

need to be connected) to the RS-232 9-pin D-sub port on your PC
